Chart Prompts

1,337 ways to dress a line or bar chart, 669 light and 668 dark. Open any chart to see it full size and copy a prompt that gives your own chart the same look.

Every chart uses illustrative data. The prompts work with any coding agent and any charting library; they describe colors, type, spacing and marks precisely enough to reproduce each look.

← More from Emergent Mind Labs

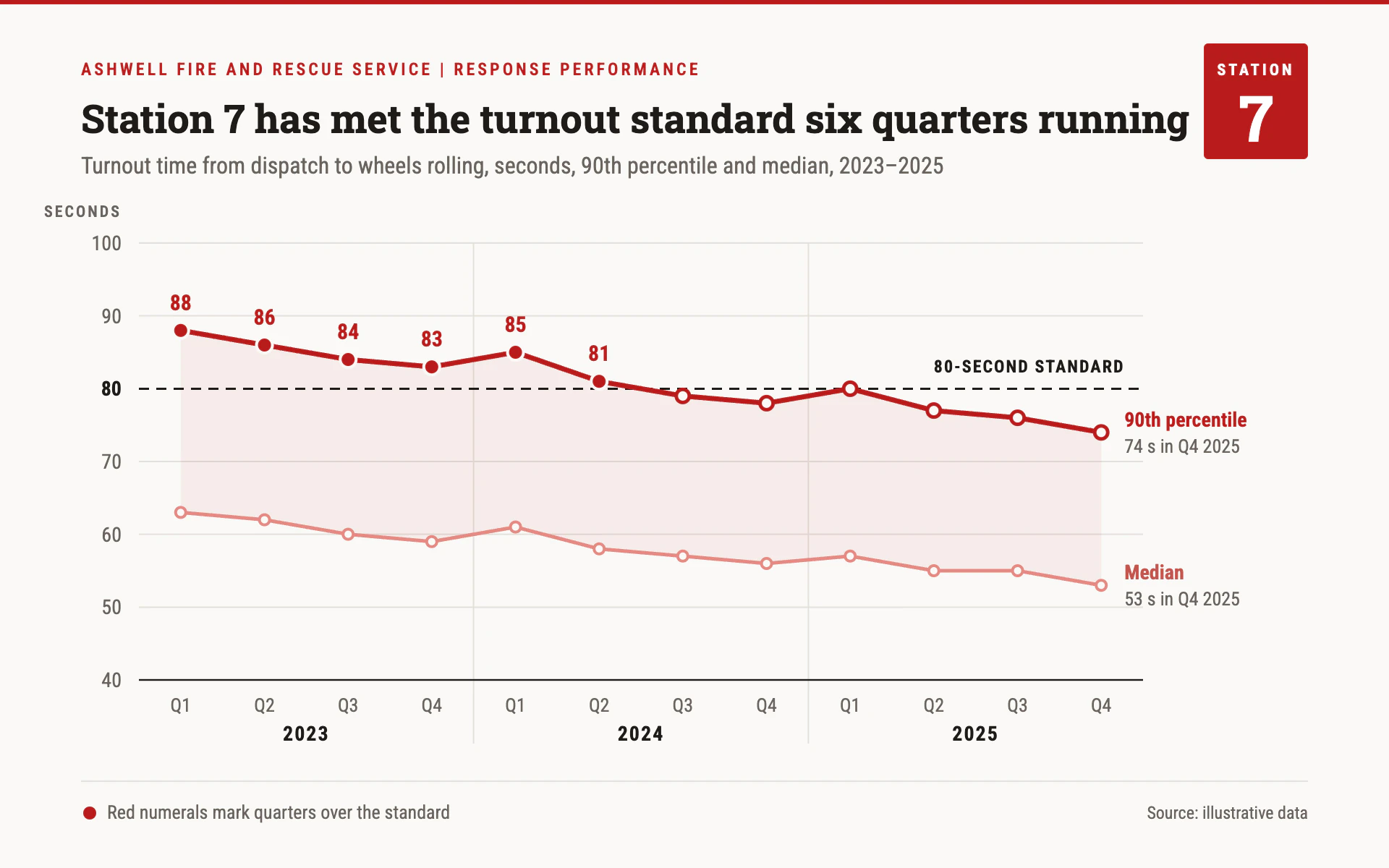

Turnout Time line chart, light theme: Fire report page with a red station tag, dashed standard and red misses.

Turnout Time

LightLine

Fire report page with a red station tag, dashed standard and red misses.

  • Off-white#FAF9F7
  • Fire red#B91C1C
  • Median pink#E48A83
  • Ink#1F1B18

Prompt for your coding agent

Paste it with your chart's code. It restyles your data to match this chart.

Restyle my chart in the "Turnout Time" style described below. Keep my data, chart type, title meaning and units; change only the presentation. Use the charting library this project already uses (plain SVG if there is none). If the library can't express a detail, draw it in a custom layer instead of dropping it. Measurements assume a 960 x 600 chart; scale them proportionally.

Mood: a page from a fire service response performance report. Plain, accountable and exact: an off-white sheet, one fire red, a station tag in the corner and a dashed standard that every point is judged against.

Colors (use these exact values):
- Page: #FAF9F7 (off-white) for the whole canvas.
- Fire red: #B91C1C for the 3px full-width top rule, the station tag, the eyebrow, the primary series and the numerals on points that miss the standard.
- Secondary series: #E48A83 (light red), with its direct label in #C2554E.
- Ink: #1F1B18 for the title, the standard line and baseline. Secondary text: #6B645E. Gridlines and footer rule: #E4E0DA.
- Band between the two series: #B91C1C at 6% opacity.

Typography (Google Fonts):
- Roboto Slab 700 for the title (27px, #1F1B18, sentence case, stating the finding) and the big station number (44px, white).
- Roboto Condensed for everything else: eyebrow 12px 600 uppercase, 2px letter-spacing, in red; subtitle 16px #6B645E naming measure, unit and period; axis labels 14px (the standard value 700 in ink); quarter labels 13px; year labels 14px 700 with 1px letter-spacing; the over-standard numerals 15px 700 red; direct labels 14px 700 with a 13px value line below; source 12px.

Layout:
- 56px side margins. A 3px #B91C1C rule across the very top edge. Eyebrow at y 52, title at y 92, subtitle at y 120.
- Station tag at the top right: a 72 x 80 px #B91C1C block with 3px radius, "STATION" in 11px 700 white with 2px letter-spacing at the top and the station number in Roboto Slab 44px 700 white below.
- Plot from x 96 to 790, y 168 to 470, leaving about 110px on the right for direct labels. A small uppercase unit label ("SECONDS") above the y-axis labels.
- Footer: a 1px #E4E0DA rule at y 540, then a red dot with the note "Red numerals mark quarters over the standard" on the left and "Source: illustrative data" on the right.

Axes and grid:
- Horizontal 1px #E4E0DA gridlines at every 10 units, no vertical axis line. A 1.2px ink baseline.
- Periods grouped: quarter labels under each point and the year centered under its four quarters, with 1px #E4E0DA vertical dividers between years running down through the labels.
- The standard: a 1.5px #1F1B18 dashed line (7 on, 5 off) across the plot, labeled "80-SECOND STANDARD" in 12px 700 caps on a page-colored patch just above it at the right.

Marks:
- Line chart: primary series 3.5px #B91C1C straight segments. Points that fail the standard are solid red dots (r 5.5, 2px page-colored ring) with their value in red numerals 14px above; points that meet it are hollow (r 4.5, page fill, 2.5px red stroke). Secondary series (median) 2.5px #E48A83 with small hollow dots (r 3.5). Shade the gap between the two series at 6% red. Direct labels at the right end: series name in bold color plus its latest value in #6B645E.
- Bar chart: square-cornered #B91C1C bars about 55% of the band for bars that miss the standard, and #E48A83 bars for those that meet it, with red value numerals above failing bars only. The dashed standard line runs across the bars. No legend beyond the footer note.

Avoid: gradients, shadows, rounded bars, more than one hue family, a boxed legend, and heavy gridlines.

When you're done, render the chart and check that only points beyond the standard carry red numerals, the station tag does not crowd the title, and the title's claim matches the data.
