Chart Prompts

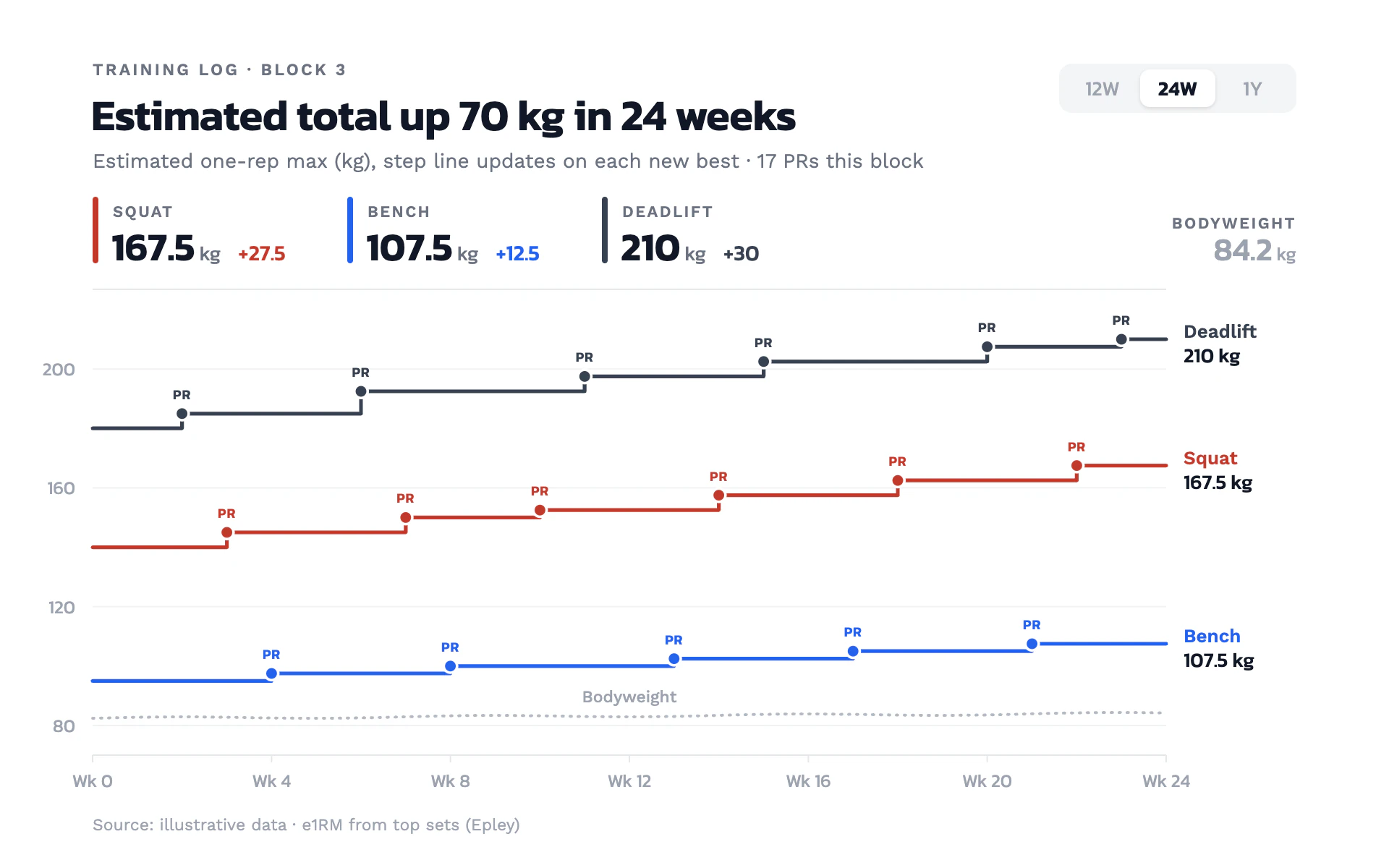

Restyle my chart in the "Strength Log" style described below. Keep my data, chart type, title meaning and units; change only the presentation. Use the charting library this project already uses (plain SVG if there is none). If the library can't express a detail, draw it in a custom layer instead of dropping it. Measurements assume a 960 x 600 chart; scale them proportionally.

Mood: the progress screen of a clean, serious strength-training app. Pure white, crisp athletic numerals, three confident lift colors and small PR badges that reward every new best.

Colors (use these exact values):
- Canvas: #FFFFFF. Ink #111827, secondary text #6B7280, axis labels and faint text #9CA3AF, rules #E5E7EB, gridlines #F1F2F4.
- Series (in this order): brick red #C0392B, electric blue #2563EB, graphite #374151.
- Reference series (for example bodyweight): #B4BAC2.
- Segmented control track #F3F4F6 with a #FFFFFF selected thumb.

Typography (Google Fonts):
- Kanit for all numerals and the title: title 600 30px with -0.3px letter-spacing, stating the finding; stat values 600 27px with a 14px 400 "kg" unit in #6B7280 and a 15px 500 change figure in the series color; axis labels 400 12.5px #9CA3AF; end-label values 500 14px; PR tags 600 9.5px.
- Work Sans for words: eyebrow 600 11.5px uppercase with 1.6px letter-spacing in #6B7280; subtitle 400 14px #6B7280 with measure and unit; tile labels 600 11px uppercase with 1.2px letter-spacing; series names 600 13px in the series color; source 400 11.5px #9CA3AF.

Layout:
- 64px left margin. Eyebrow at y 52, title at y 90, subtitle at y 116.
- A segmented control top right (x from about 732 to 896, y 44, 34px tall, 9px radius) with three options such as 12W / 24W / 1Y; the selected one is a white 26px thumb with a 7px radius and a soft 1px shadow, 600 ink text; the others are 400 #9CA3AF.
- A row of summary tiles under the subtitle, 176px apart: a 4 x 46px rounded color bar, uppercase label, big value with unit and the change since the start. The reference series gets a right-aligned tile in #9CA3AF. A 1px #E5E7EB rule closes the row.
- Plot area about x 64 to 806, y 214 to 522, with direct labels (name plus latest value) in the 90px to the right.

Axes and grid:
- Four 1px #F1F2F4 horizontal gridlines with left labels; a 1px #E5E7EB baseline with 5px ticks and labels like "Wk 4". No y-axis line, no vertical grid.

Marks:
- Line chart: step lines (hold the value flat until it changes, then step vertically), 2.6px, round joins. Each new best gets a 4.6px filled dot in the series color with a 1.8px white ring and a tiny "PR" tag 10px above in the series color. The reference series is a dotted 2px #B4BAC2 line (1 on, 4.5 off) with a small gray label. Label each series at its right end instead of a legend.
- Bar chart: vertical bars at about 60% of the band in the three series colors with 4px top corners, value labels in Kanit 500 13px above each bar; mark record bars with the same dot and "PR" tag above the value; a reference value is a dotted #B4BAC2 horizontal line.

Avoid: area fills, gradients, shadows on data, smoothing of step lines, a boxed legend, and more than three saturated colors.

When you're done, render the chart and check that every PR dot sits exactly on a step riser, PR tags do not touch the line above, the change figures match the data, and the selected segment is clearly the middle one.
