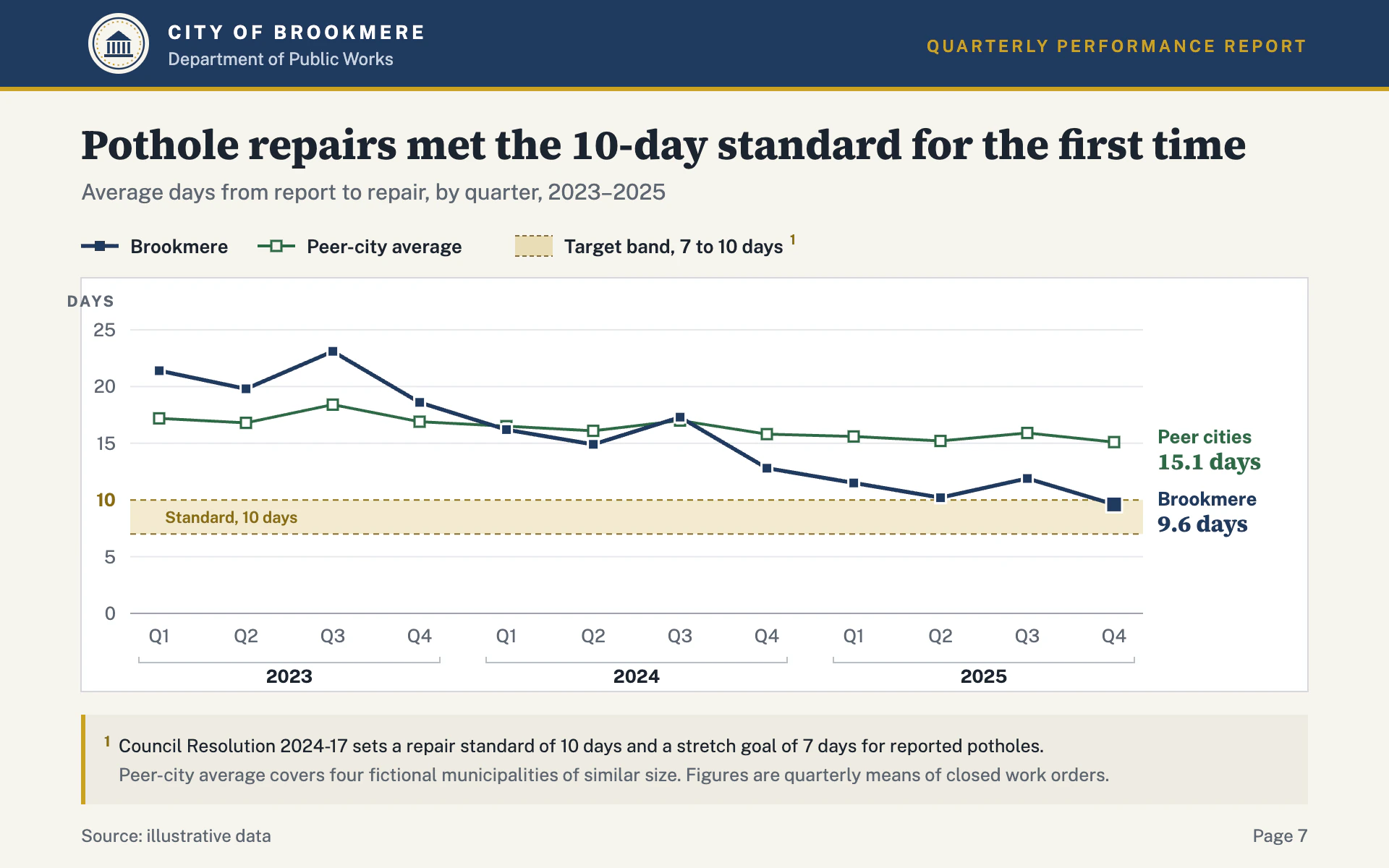

Town Hall line chart, light theme: Municipal report with a seal header, boxed chart and gold target band.

Town Hall

LightLine

Municipal report with a seal header, boxed chart and gold target band.

  • Civic off-white#F6F4EE
  • Municipal navy#1F3A5F
  • Forest green#2E6B47
  • Muted gold#C9A227
  • Gold ink#8A6D0F

Prompt for your coding agent

Paste it with your chart's code. It restyles your data to match this chart.

Restyle my chart in the "Town Hall" style described below. Keep my data, chart type, title meaning and units; change only the presentation. Use the charting library this project already uses (plain SVG if there is none). If the library can't express a detail, draw it in a custom layer instead of dropping it. Measurements assume a 960 x 600 chart; scale them proportionally.

Mood: a page from a city government's quarterly performance report. Civic, orderly and dependable: a navy header strip with a seal, a tidy boxed chart, a policy target band and a proper footnote.

Colors (use these exact values):
- Page: #F6F4EE (civic off-white). Chart box fill: #FFFFFF with a 1px #D5D8DD border.
- Primary series and header strip: #1F3A5F (municipal navy).
- Comparison series: #2E6B47 (forest green).
- Target band: #C9A227 (muted gold) at 22% opacity; threshold lines, the band label and footnote markers in #8A6D0F (gold ink). A 3px #C9A227 rule under the header strip.
- Text: #1B2430 for headings, #5E6773 for secondary text. Gridlines #E6E8EB, baseline #9AA3AE. Footnote block fill #EEEBE2.

Typography (Google Fonts):
- Source Serif 4 700 for the title (29px, #1B2430, sentence case, stating the finding) and the direct-label values (16px).
- Public Sans for everything else: header name 13px 700 uppercase with 2.4px letter-spacing in white; department line 12px #C7D3E3; report label 11.5px 600 uppercase with 2px letter-spacing in gold; subtitle 15px #5E6773; legend 13px 600; axis labels 12.5px; year group labels 12.5px 700; axis unit label 10.5px 700 uppercase with 1.5px letter-spacing; footnote 12.5px; source 12px.

Layout:
- Header strip: full width, 60px tall, navy, with the 3px gold rule beneath. A seal emblem at the left (center x 82): an off-white disc r 21, a 1.2px navy ring r 17.5, a dotted gold ring r 15, and a small navy civic building glyph (pediment triangle, five columns, base bar). City name and department to its right; the report label right-aligned at x 904.
- Title at y 110 and subtitle at y 138, 56px side margins. A single-row legend at y 170.
- Chart box from x 56 to 904, y 192 to 478. Plot inside from x 110 to 770; the right side of the box holds direct labels.
- Footnote block below the box (y 494 to 556): #EEEBE2 fill with a 3px gold left edge, a superscript "1" in gold ink, the resolution citation on the first line (#1B2430) and methodology on the second (#5E6773). Source at the bottom left and a page number at the bottom right.

Axes and grid:
- Light horizontal gridlines (1px #E6E8EB) at round values, a 1px #9AA3AE baseline, no vertical gridlines, no axis lines. Y labels right-aligned 30px left of the plot, with the threshold value highlighted in bold gold ink. A small uppercase unit label ("DAYS") above the y labels.
- Quarter labels under each point; below them 1px #B8BEC6 brackets group each year's four quarters with the year centered in bold.

Marks:
- Line chart: straight segments. The primary series is 2.75px navy with solid navy square markers (7.5px, 1.5px white stroke) at every quarter, the latest one larger (11px). The comparison series is 2px forest green with hollow square markers (7px, white fill, 1.6px green stroke). The target band is a gold rectangle between the two policy thresholds, edged by 1px gold-ink dashed lines (4 on, 3 off) and labeled inside at the left ("Standard, 10 days", 11px 600).
- Bar chart: square-cornered navy bars about 55% of the band wide with forest green bars beside them for the comparison, the same gold target band drawn behind the bars, and values in Source Serif 4 above each bar.

Labels and annotation:
- Direct labels right of the last points: series name (Public Sans 13px 700) over the latest value (Source Serif 4 700 16px), in the series color.
- Any reference to a policy gets a superscript footnote marker that matches the footnote block.

Avoid: gradients, shadows, rounded bars, smoothing, bright colors, decorative icons beyond the seal, and gridlines denser than every 5 units.

When you're done, render the chart and check that the title's claim is true for the data (for example that the latest value is the first one inside the band), square markers sit exactly on the line vertices, the seal renders crisply at thumbnail size, and the footnote marker matches the legend.
