Chart Prompts

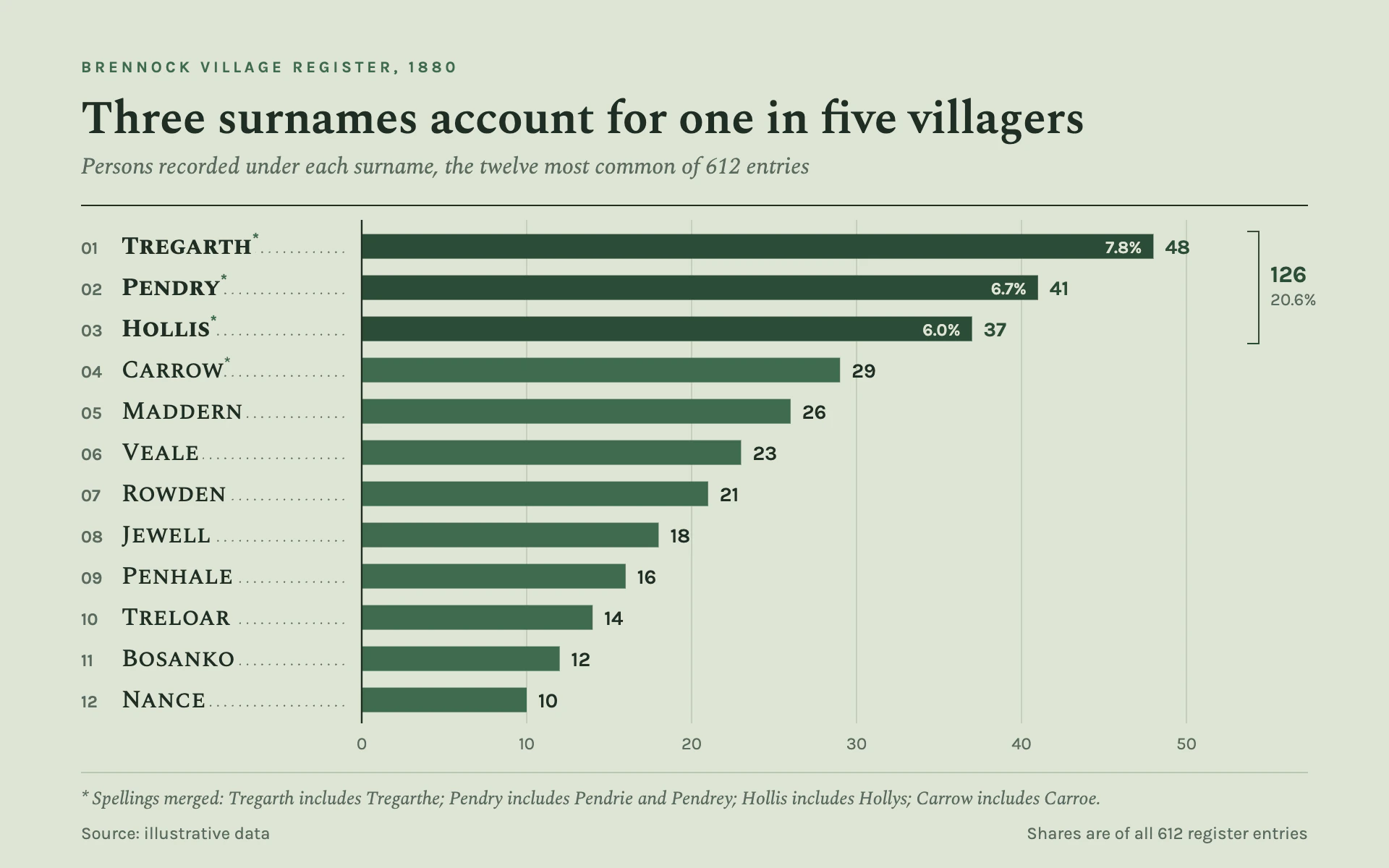

Restyle my chart in the "Surname Count" style described below. Keep my data, chart type, title meaning and units; change only the presentation. Use the charting library this project already uses (plain SVG if there is none). If the library can't express a detail, draw it in a custom layer instead of dropping it. Measurements assume a 960 x 600 chart; scale them proportionally.

Mood: a local history society's register tally. Soft sage paper, bookish small-caps names on dotted leaders, calm forest-green bars and a careful footnote.

Colors (use these exact values):
- Background: #DDE5D5 (soft sage).
- Bars: #3F6B4E (muted forest). The top three bars: #2B4C37 (deep forest).
- Primary text: #1F2E24. Secondary text, leaders and ranks: #5B6B5F. Faint reference rules: #B9C7B2.
- Share figures inside the top bars are set in the background sage #DDE5D5.

Typography (Google Fonts):
- Spectral for the title (600, 32px, #1F2E24, stating the finding), the italic subtitle (16px, #5B6B5F) and the italic footnote (13px).
- Spectral SC for the category names (17px; 700 for the top three, 500 for the rest).
- Karla for every number: eyebrow 700 11px uppercase with 2.4px letter-spacing in #3F6B4E; rank numbers 600 12px zero-padded ("01"); value labels 14px (700 in deep forest for the top three, 600 in #1F2E24 otherwise); shares 600 12px; axis numbers 12px; source 12px.

Layout:
- 56px side margins. Eyebrow, title and subtitle at the top, then a full-width 1px #1F2E24 rule.
- Rows about 28px tall. Rank at x 56, name at x 84, a dotted leader running from the name to 10px before the bar baseline at x 250. Bars run right from x 250.
- A 1px bracket to the right of the top three rows with their combined count (Karla 700 16px, deep forest) and share of the total (12px).
- At the bottom: a 1px #B9C7B2 rule, the footnote explaining merged spelling variants (with a small Karla asterisk after each merged name), then the source line left and a note on the share base right.

Axes and grid:
- Vertical 0.8px #B9C7B2 reference rules every 10 units with 12px Karla numbers below the last row.
- A 1.2px #1F2E24 baseline at the bar start. No other axis lines.

Marks:
- Bar chart: horizontal square-cornered bars 17px tall, sorted longest first, forest green, the top three deep forest with their share of the total printed inside the right end (right-aligned, 8px padding). Values 8px past the bar end.
- Line chart: the same rows and leaders become a dot plot on a single 1.4px #3F6B4E connecting line when the categories are ordered in time; dots r 5 forest (deep forest for the top three) with values beside them. Otherwise keep bars.
- Dotted leaders: 1.2px #5B6B5F, dash array "0.1 5" with round caps (dots every 5px), baseline-aligned with the names. Knock the leader out behind each name by giving the name a 7px sage stroke with paint-order stroke.

Avoid: rounded bars, gradients, bright greens, a legend, gridlines behind the names and more than two green tints.

When you're done, render the chart and check that the leaders stop cleanly at each name, the top-three shares and bracket total are arithmetically right, and the footnote lists every merged spelling.
