Restyle my chart in the "Status Share" style described below. Keep my data, chart type, title meaning and units; change only the presentation. Use the charting library this project already uses (plain SVG if there is none). If the library can't express a detail, draw it in a custom layer instead of dropping it. Measurements assume a 960 x 600 chart; scale them proportionally.

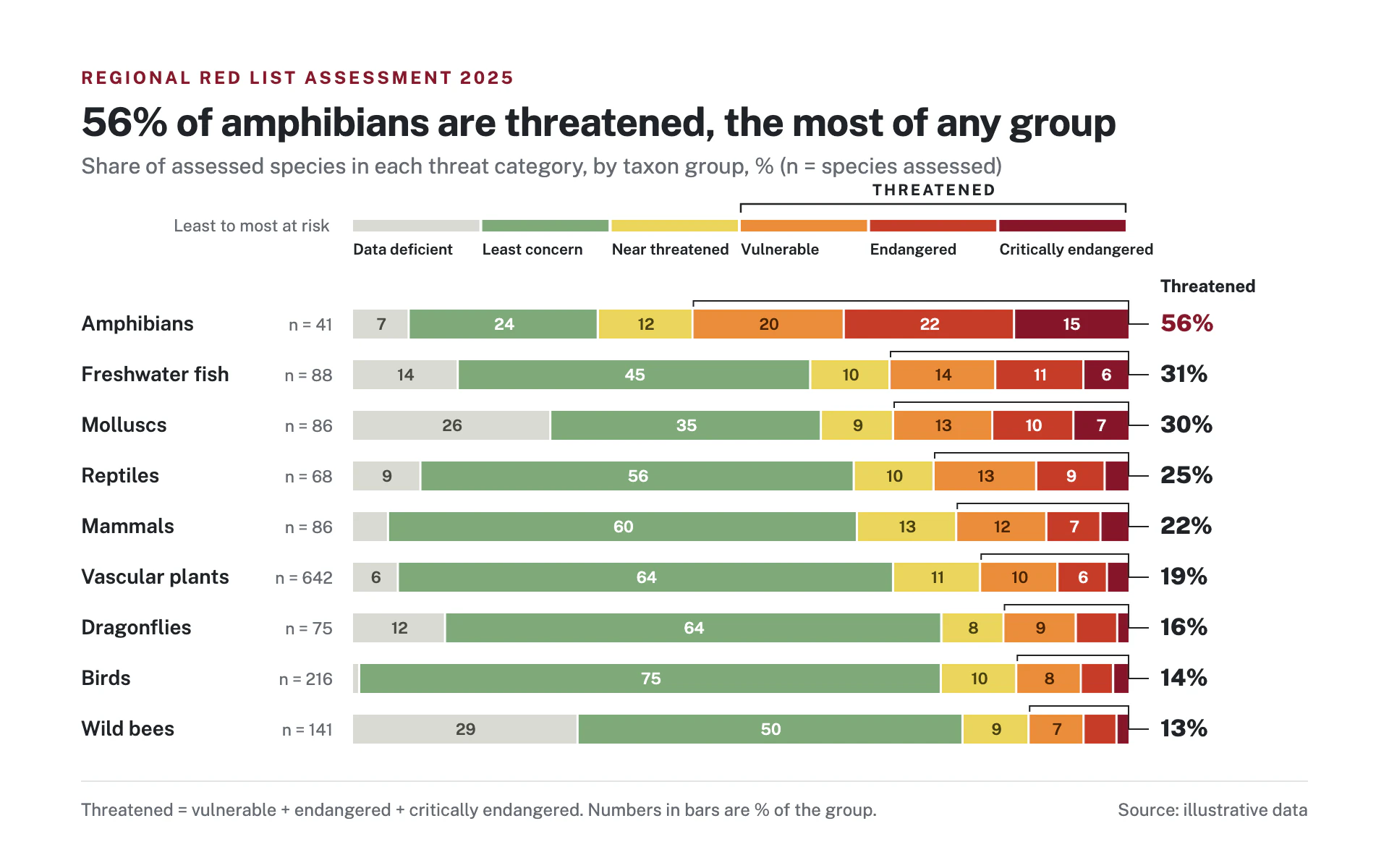

Mood: a figure from a regional red list or conservation status assessment. Clean, sober and scientific, with an ordered threat scale that carries all the color.

Colors (use these exact values), in scale order:
- Data deficient: #D9D9D3 (light gray).
- Least concern: #7FAA7A (sage green).
- Near threatened: #EBD55C (yellow).
- Vulnerable: #EB8D3A (orange).
- Endangered: #C63C28 (red).
- Critically endangered: #86162A (deep crimson), also the eyebrow color and the highlighted leading share.
- Background #FFFFFF; ink #1F2328; secondary text #666B72; footer rule #E3E5E8.
- Numbers inside segments: #FFFFFF on sage, red and crimson; dark tints (#4A4A46 on gray, #4A4214 on yellow, #4A2508 on orange).

Typography (Google Fonts):
- Public Sans throughout: eyebrow 12px 700 uppercase with 1.8px letter-spacing in crimson; title 27px 700 with -0.4px letter-spacing, stating the finding; subtitle 15px 400 #666B72 naming measure, unit and n; category labels 14px 600; "n = 41" counts 11.5px 400 muted, right-aligned before the bars; legend labels 10.5px 600; in-segment numbers 11px 600; threatened share 16px 800; source 12px.

Layout:
- 56px side margins. Eyebrow y 58, title y 94, subtitle y 120.
- A compact scale legend across the top (y 152) aligned with the bars: six equal 8px-tall swatches in scale order with a 2px gap, labels 24px below each swatch's left edge, "Least to most at risk" right-aligned in muted text to its left, and a 1.2px ink bracket over the last three swatches captioned "THREATENED" (10.5px 700, 1.5px letter-spacing).
- Bars from x 244 to 780, one row per category every 35px, bar height 20px. The threatened share column starts at x 802 under a "Threatened" 12px 700 header. Footer rule at y 540 with a definition note at left and the source at right.

Axes and grid:
- No axes and no gridlines: every bar spans 0 to 100%. Sort rows by the threatened share, highest first.

Marks:
- Bar chart: 100% stacked horizontal bars, segments in scale order left to right (data deficient, least concern, near threatened, vulnerable, endangered, critically endangered), square-cornered, separated by 1.5px white gaps. Print the rounded percent centered in any segment at least 30px wide.
- Threatened bracket: a 1px ink line 6px above each bar from the start of the vulnerable segment to the bar's right end, dropping down the right edge to mid-bar and running 14px right to the share label ("56%"). The top row's share is in crimson; the rest in ink.
- Line chart: one 2.5px line per status category (share over time), each in its scale color, with the threatened total as a 3px ink line; direct labels at the right end, and the same top legend and bracket.

Avoid: rainbow or arbitrary colors, gradients, 3D, rounded bars, a separate boxed legend, out-of-order categories.

When you're done, render the chart and check that each bar sums to 100%, the bracketed share equals vulnerable + endangered + critically endangered, legend labels don't touch each other and category names don't collide with the n counts.
