Chart Prompts

Restyle my chart in the "Split-Flap" style described below. Keep my data, chart type, title meaning and units; change only the presentation. Use the charting library this project already uses (plain SVG if there is none). If the library can't express a detail, draw it in a custom layer instead of dropping it. Measurements assume a 960 x 600 chart; scale them proportionally.

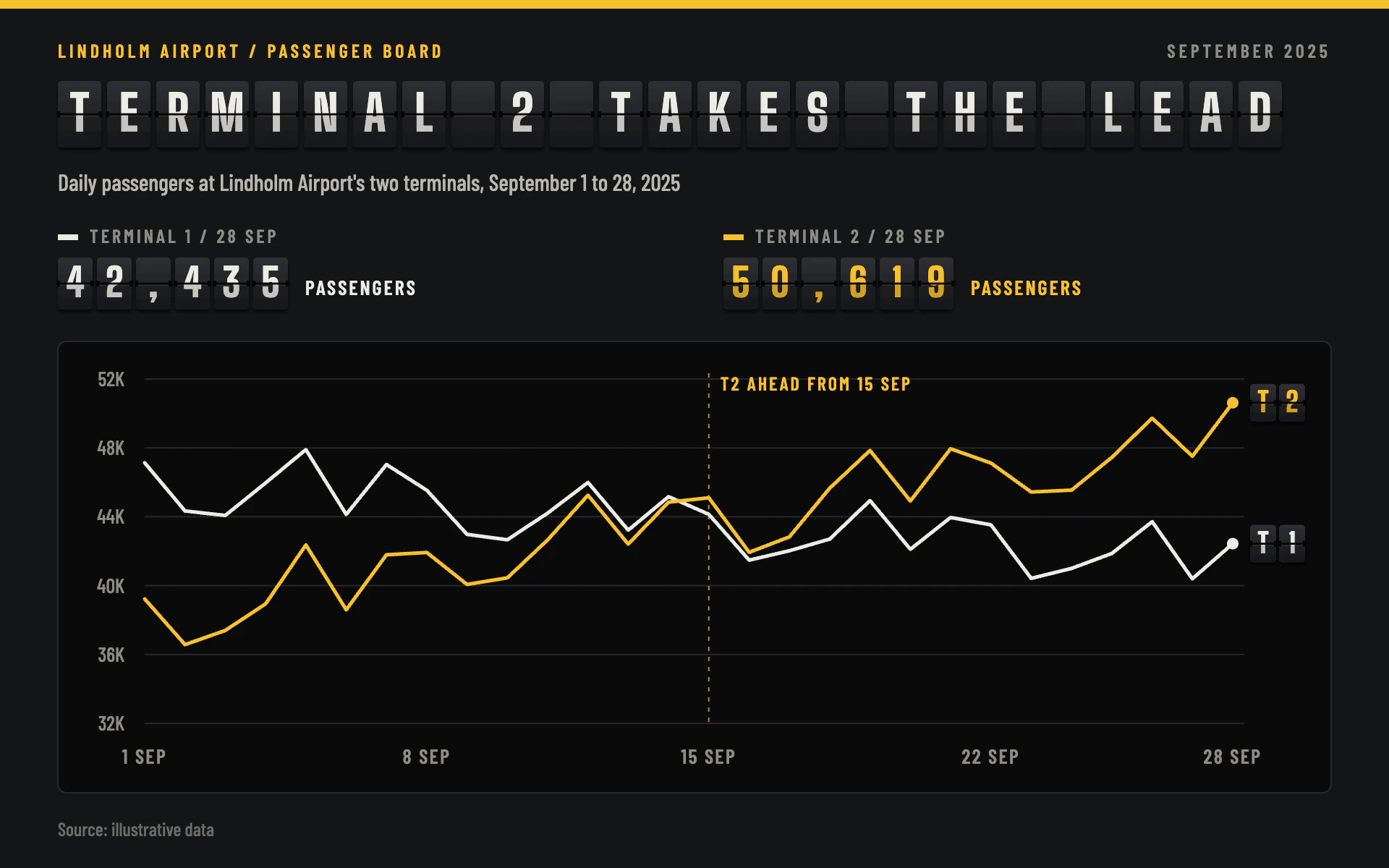

Mood: an airport departure board. The headline and the latest readings are spelled out on mechanical split-flap tiles, and the chart sits in a matte black panel below with crisp white and yellow lines.

Colors (use these exact values):
- Board: #141518 for the canvas, with a 6px #F6C12E strip across the very top.
- Flap tile: a vertical gradient #2E2F34, #232428 (50%), #1B1C1F, 2.5px corner radius, with a drop shadow (0, 2, blur 1.2, black at 70%).
- Chart panel: #0A0A0B with a 1px #26272B outline and 6px corner radius. Gridlines #26272B.
- Series: #EDEBE4 (flap white) for the first series and #F6C12E (signal yellow) for the second. Tile characters use the same two colors.
- Muted text #8E8C84; subtitle #B9B7AE; source #6E6C66.

Typography (Google Fonts):
- Big Shoulders Display 800 for every character on a flap: title tiles 34px, reading tiles 27px, line-end tags 19px, all uppercase.
- Barlow Condensed for everything else: board header 13px 600 uppercase with 2.5px letter-spacing (left in yellow, right in muted); subtitle 16px 500; reading captions 13px 600 with 2px letter-spacing; axis labels 14px 500 to 600; annotation 13px 600 uppercase with 1.5px letter-spacing; source 13px 500.

Layout:
- 40px side margins. Header line at y 40. Title tiles (30 x 46px, 4px gaps, one character each, blank tiles for spaces) at y 56 spanning the width; keep the headline short enough to fit on one row.
- Subtitle at y 132 stating measure, unit and period.
- Latest readings as the legend: for each series a 14 x 4 color bar, a caption ("TERMINAL 1 / 28 SEP"), then the value on 24 x 36 tiles (3px gaps, comma on its own tile) followed by the unit in the series color. Place the series side by side.
- Chart panel from y 236 to 548, plot area about x 100 to 852, y 262 to 500.

Axes and grid:
- Horizontal 1px #26272B gridlines only, labels right-aligned 14px left of the plot ("44K"). Date labels 28px below the plot, uppercase ("15 SEP").

Marks:
- Every flap tile: the lower half overlaid with black at 16%, a 1.4px #050506 split line across the middle, a 0.8px white line at 7% just beneath it, and 2.5 x 4px dark hinge notches at the left and right ends of the split.
- Line chart: 2.5px lines with straight segments and round joins, a 4px-radius dot at each line end followed by a two-tile tag (18 x 26px) naming the series in its color. Mark the crossover or key date with a 1px dashed yellow vertical line (dash 3 on 4 off, 70% opacity) and an uppercase annotation beside it.
- Bar chart: square-cornered bars in the two series colors inside the matte panel, 55% of the band wide; each bar's value spelled on small flap tiles (18 x 26px) above it; a second series is drawn as grouped bars.

Avoid: rounded tiles beyond 2.5px, gradients on the chart panel, glows, more than two series colors, lowercase on tiles, and letting a tile's split line disappear.

When you're done, render the chart and check that the headline fits on one row of tiles, the reading tiles match the last data values, the line-end tags don't overlap, and the stated crossover date is right for the data.
