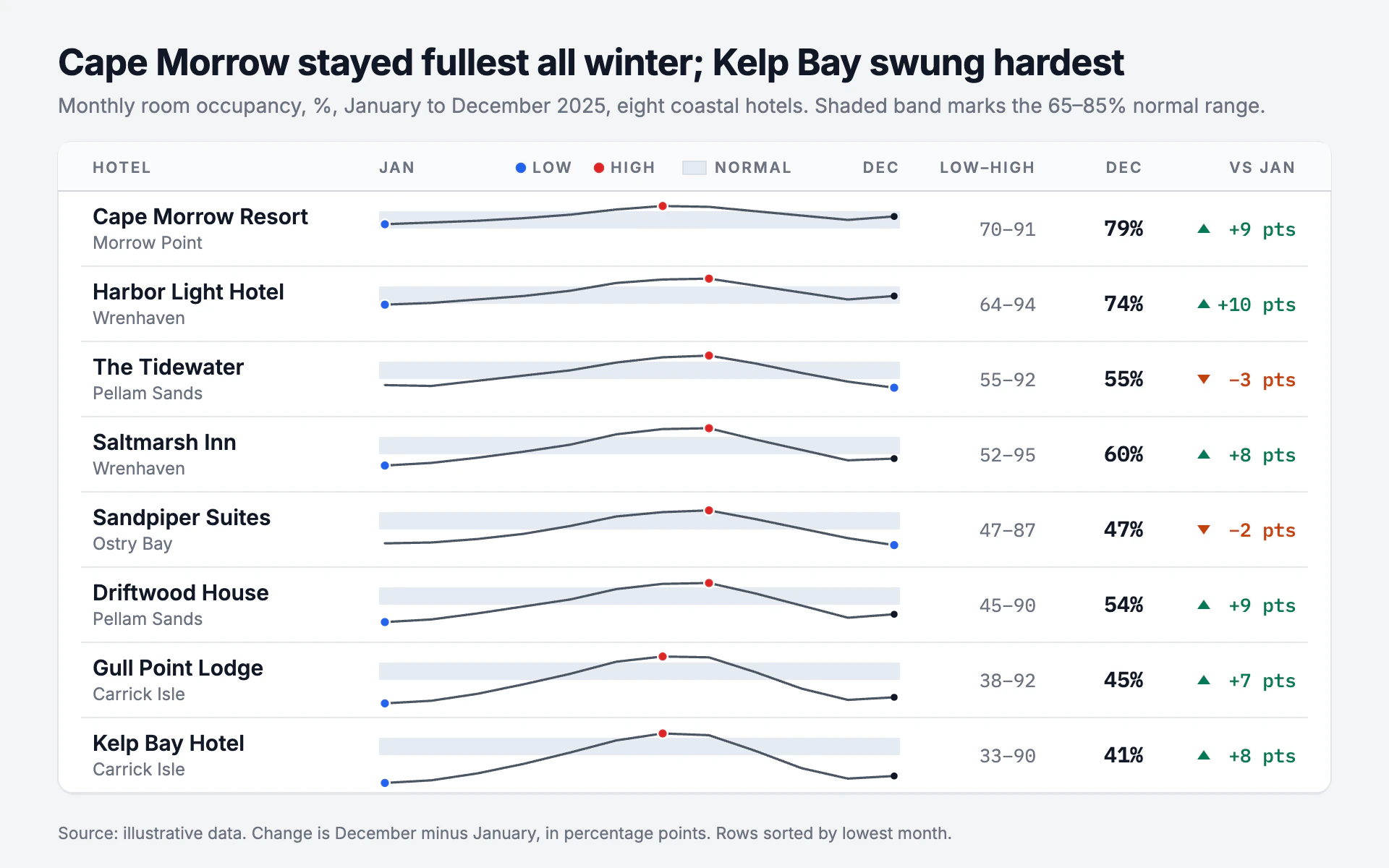

Sparkline Table line chart, light theme: A white report table of ink sparklines with blue low and red high dots.

Sparkline Table

LightLine

A white report table of ink sparklines with blue low and red high dots.

  • Page gray#F3F4F6
  • Ink gray#4B5563
  • Low blue#2563EB
  • High red#DC2626
  • Normal band#E6EBF2

Prompt for your coding agent

Paste it with your chart's code. It restyles your data to match this chart.

Restyle my chart in the "Sparkline Table" style described below. Keep my data, chart type, title meaning and units; change only the presentation. Use the charting library this project already uses (plain SVG if there is none). If the library can't express a detail, draw it in a custom layer instead of dropping it. Measurements assume a 960 x 600 chart; scale them proportionally.

Mood: a crisp operations report table, the kind a revenue manager scans in ten seconds. Quiet ink-gray sparklines, precise mono figures and two tiny colored dots doing the storytelling.

Colors (use these exact values):
- Page: #F3F4F6 (light gray). Table card: #FFFFFF with a 1px #E2E5EA border, 10px corner radius and a 1.5px offset #E5E7EB shadow edge underneath (a solid shape, no blur).
- Header strip fill: #F9FAFB, separated from the rows by a 1px #D1D5DB rule. Row hairlines: 1px #E5E7EB, inset 16px from the card edges.
- Sparklines: #4B5563 (ink gray). Minimum dot: #2563EB (blue). Maximum dot: #DC2626 (red). End dot: #111827.
- Normal band behind each sparkline: #E6EBF2.
- Text: #111827 primary, #6B7280 secondary. Direction: up #047857, down #C2410C.

Typography (Google Fonts):
- Inter for all words: title 700 25px #111827 with -0.4px letter-spacing, stating the finding; subtitle 400 14px #6B7280 naming measure, unit, period and what the shaded band means; row names 600 15px, with a 400 12px #6B7280 sub-label (location) under each; column headers 600 10.5px uppercase with 1.3px letter-spacing in #6B7280 (a small-caps strip); source 11.5px #6B7280.
- IBM Plex Mono for every number, with tabular figures (font-variant-numeric: tabular-nums), all right-aligned: range column 400 13px #6B7280 ("33–90"), latest value 600 15px #111827 ("41%"), change 500 13px in the direction color ("+8 pts", with a true minus sign for negatives).

Layout:
- 40px page margins. Title baseline at y 52, subtitle at y 78, table card from y 98 with a 34px header strip and 52px rows (eight rows fill to about y 548). Source line at y 580, left-aligned.
- Columns: name at x 64; sparkline from x 262 to x 622; range right-aligned at x 716; latest value right-aligned at x 790; a 9px direction triangle centered at x 832; change right-aligned at x 896.
- Header strip labels: "HOTEL" (or the row noun), the first period label left-aligned over the sparkline start and the last period right-aligned over its end, and between them a dot key: blue dot "LOW", red dot "HIGH" and a 16 x 9px band swatch "NORMAL".
- Sort rows by a meaningful statistic and say which in the source line.

Axes and grid:
- No axes, ticks or gridlines anywhere. Each sparkline uses the same fixed y domain across rows (shared scale) filling the row minus 5px top and bottom.
- The normal band is a full-width #E6EBF2 rectangle spanning the normal range on that shared scale.

Marks:
- Line chart: one sparkline per series, 1.6px #4B5563 straight segments with round joins. Minimum point: r 3.4 #2563EB dot with a 1.2px white ring; maximum point: r 3.4 #DC2626 dot with a white ring; the final point gets a r 2.4 #111827 dot unless it is already the min or max.
- Bar chart: the same table, with each sparkline cell holding tiny 60%-band-width columns in #4B5563 rising from the row baseline over the normal band, the lowest column filled #2563EB and the highest #DC2626. Same mono columns on the right.
- Direction triangles: 9px wide, 6.5px tall, pointing up in #047857 or down in #C2410C.

Avoid: gridlines, axis labels on the sparklines, color fills under the lines, more than two accent dot colors, proportional (non-tabular) numerals, centered numbers, zebra striping, drop shadows with blur.

When you're done, render the chart and check that every number column is right-aligned on a shared edge, the blue and red dots sit on the true minimum and maximum of each row, change values match last minus first, and nothing crowds the header key.
