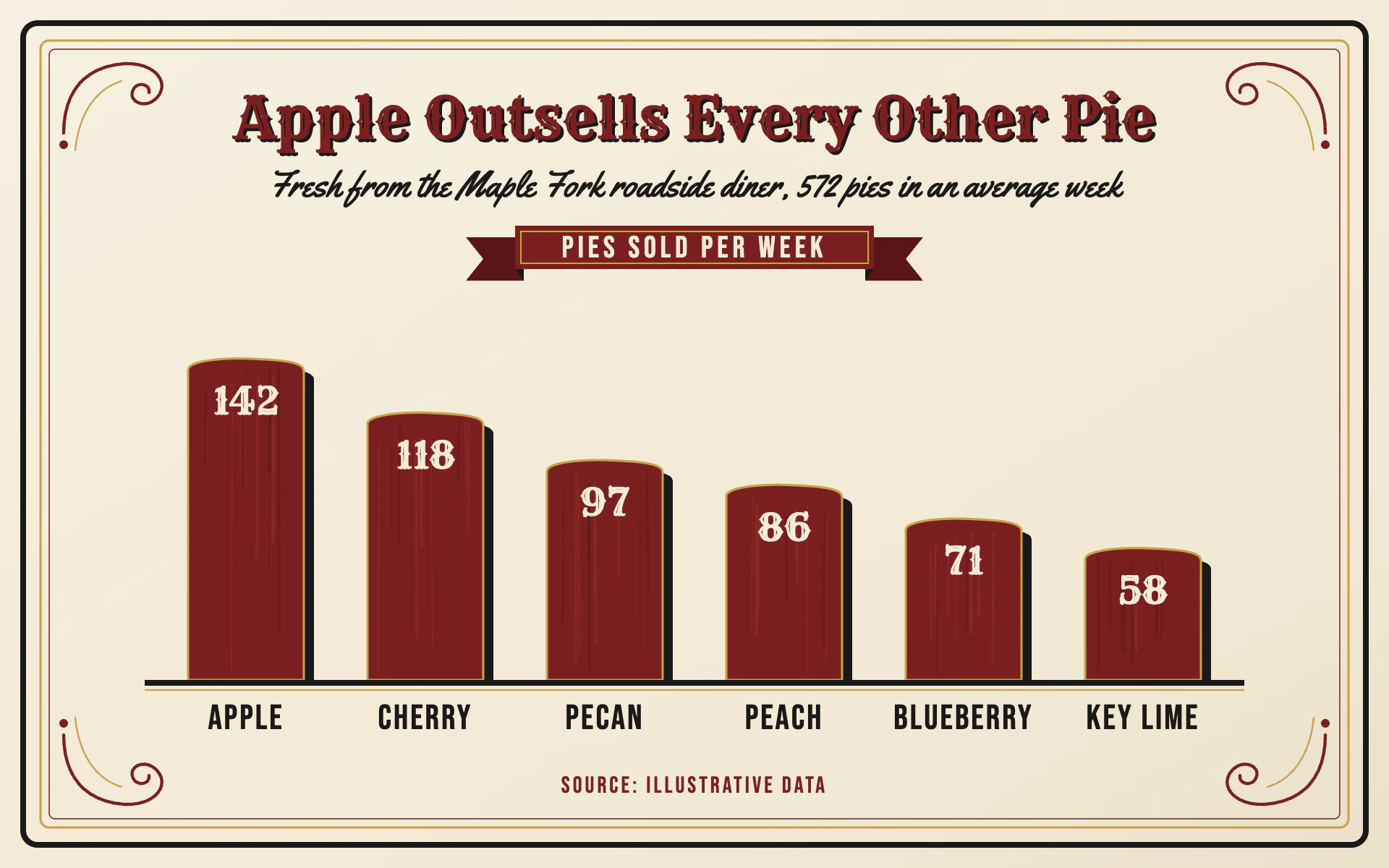

Sign Painter bar chart, light theme: A hand-painted diner board with shaded showcard bars and gold pinstripes.

Sign Painter

LightBar

A hand-painted diner board with shaded showcard bars and gold pinstripes.

  • Cream enamel#F3EBD7
  • Oxblood#7A1F1F
  • Lettering black#1A1A1A
  • Gold leaf#C9A24A

Prompt for your coding agent

Paste it with your chart's code. It restyles your data to match this chart.

Restyle my chart in the "Sign Painter" style described below. Keep my data, chart type, title meaning and units; change only the presentation. Use the charting library this project already uses (plain SVG if there is none). If the library can't express a detail, draw it in a custom layer instead of dropping it. Measurements assume a 960 x 600 chart; scale them proportionally.

Mood: a hand-painted menu board in a roadside diner. Cream enamel, oxblood showcard lettering with a one-stroke black shade, gold-leaf keylines and pinstripes. Warm, confident and crafted, never kitsch.

Colors (use these exact values):
- Board: #F3EBD7 cream enamel, with a faint diagonal sheen (white at 28% opacity top-left fading to nothing by 45%, and #B9A57C at 16% in the bottom-right corner).
- Oxblood: #7A1F1F for bars, the title and the ribbon; #5A1515 for ribbon tails and dark brush striations; #94302B for light striations.
- Black: #1A1A1A for drop shades, category names, the subtitle and the frame.
- Gold leaf: #C9A24A for keylines, the pinstripe and flourish accents.

Typography (Google Fonts):
- Rye for the showcard title (40px, #7A1F1F, centered, title case, stating the finding) with a black #1A1A1A copy offset 2px right and 2px down behind it, and for the values painted on the bars (26px, #F3EBD7).
- Yellowtail for the casual script subtitle: 25px, #1A1A1A, centered.
- Bebas Neue for condensed showcard capitals: category names 24px with 1.5px letter-spacing in #1A1A1A, the ribbon text 21px with 3px letter-spacing in #F3EBD7, the source line 16px with 2px letter-spacing in #7A1F1F.

Layout:
- Frame: a 4px #1A1A1A rounded rectangle (radius 10) inset 16px, a 1.6px #C9A24A pinstripe inset 28px (radius 6) and a 0.8px #7A1F1F hairline inset 34px.
- Corner scrolls in all four corners (one drawing mirrored): a 2.2px oxblood C-scroll curling into a small spiral, a 1.2px gold inner stroke echoing it, and a 3px oxblood dot at its tail.
- Title baseline y 96, subtitle y 136, then a ribbon banner centered at y 156 to 186 (about 250px wide, oxblood, with a 1px gold inner keyline 4px in) holding the unit label, with notched #5A1515 tails set 8px lower behind each end and small black fold triangles.
- Plot from y 236 to the baseline at y 470, x 108 to 852. Category names 34px under the baseline. Source centered at y 548.

Axes and grid:
- No y-axis and no gridlines: every bar carries its painted value.
- Baseline: a 4px #1A1A1A painted bar extending 8px beyond the plot, with a 1.2px #C9A24A keyline 7px below its top.

Marks:
- Bar chart: vertical bars about 65% of the band (80px at 6 bars), square at the foot, with a brushed top: the top edge gently domed and a touch uneven (about 2px of rise, corners rounded over 7 to 8px). Fill #7A1F1F, overlaid with 9 thin vertical brush striations per bar (0.8 to 2.2px, 45% opacity, alternating #94302B and #5A1515, random lengths). A 1.6px #C9A24A gold-leaf outline. Behind each bar a solid #1A1A1A one-stroke shade: the same shape offset 7px right and 6px down, clipped at the baseline. Values painted in cream Rye 38px below the bar top.
- Line chart: a 7px #7A1F1F line with round caps and joins, a 1.6px #C9A24A keyline running 1px inside it, and a solid #1A1A1A copy of the line offset 5px right and 5px down behind it as the shade. Points as 9px oxblood discs with a gold ring, values painted in 20px Rye above in oxblood. Additional series in #1A1A1A with a gold keyline, labeled directly in Bebas Neue at the line end.

Avoid: gradients on the data, thin sans-serif type, gridlines, legends, bevels, glossy effects, more than one script face, and neon or pastel colors.

When you're done, render the chart and check that the black shade sits down and right of every bar and never shows below the baseline, the painted values are legible in cream on oxblood, and the corner scrolls stay clear of the title and axis labels.
