Chart Prompts

Restyle my chart in the "Service Manual" style described below. Keep my data, chart type, title meaning and units; change only the presentation. Use the charting library this project already uses (plain SVG if there is none). If the library can't express a detail, draw it in a custom layer instead of dropping it. Measurements assume a 960 x 600 chart; scale them proportionally.

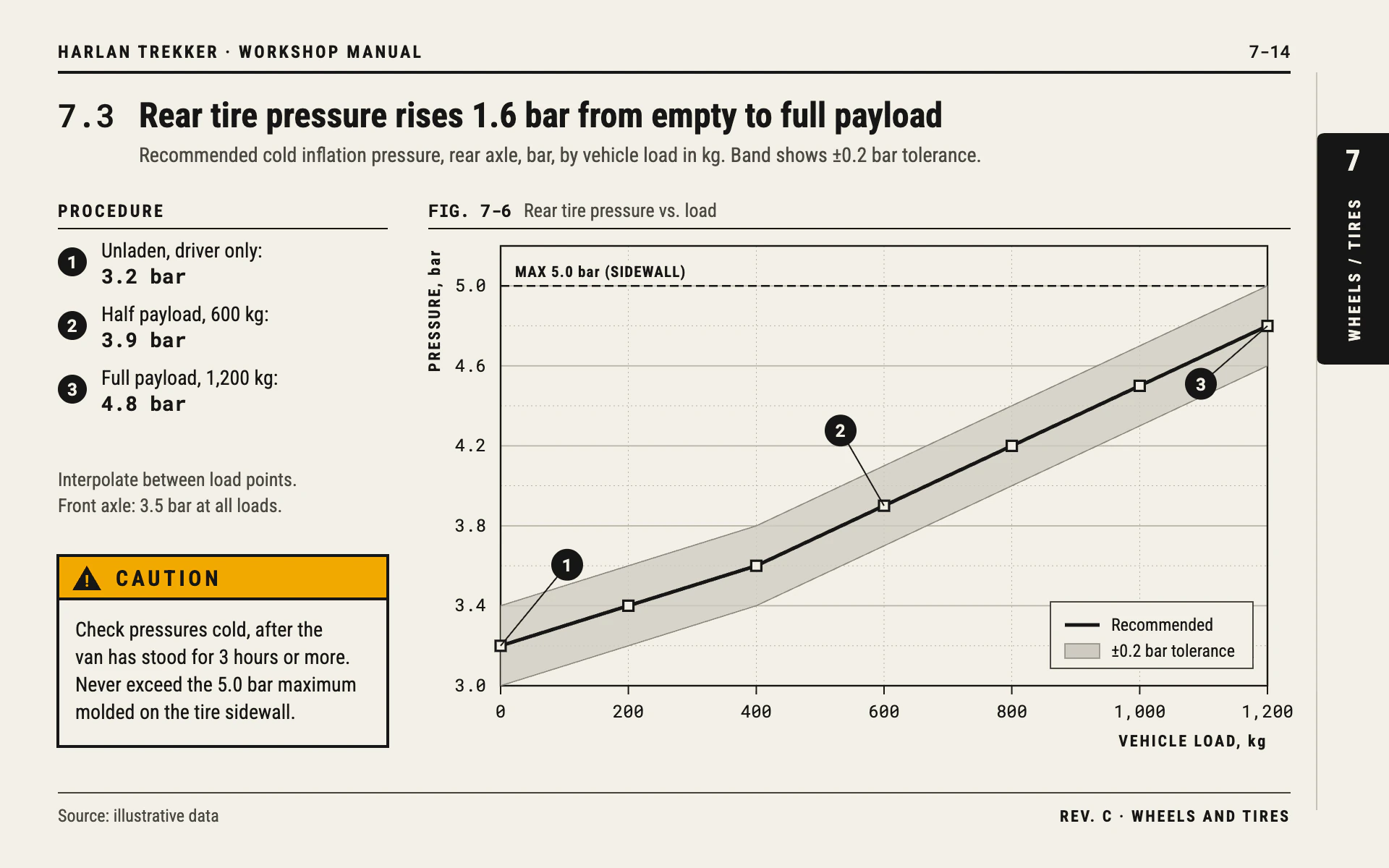

Mood: a page from a vehicle workshop manual. Off-white paper, black technical linework, a two-column layout with procedure notes beside a numbered figure, a boxed amber CAUTION note and a black section tab on the right edge.

Colors (use these exact values):
- Paper: #F3F0E7. Ink for text, frames, the data line and callouts: #161616. Secondary text: #4A4843.
- Caution amber: #F2A900 (only the CAUTION header strip).
- Tolerance band: #CFCBC0 at 75% opacity with 0.8px #8A8780 edges. Grid rules: #B9B4A8.

Typography (Google Fonts):
- Roboto Condensed: running head 700 12px uppercase with 1.6px letter-spacing; section title 700 24px; subtitle 400 14px; column headings 700 12px uppercase 1.6px letter-spacing; body and notes 400 13 to 14px; CAUTION 700 15px with 2.4px letter-spacing; axis titles 700 11px uppercase.
- Roboto Mono: page number, section number (500, 22px), figure number ("FIG. 7-6", 700 12px), all axis tick values (400 12px) and all specification values (700 14px, e.g. "3.2 bar").

Layout:
- 40px left margin. Running head with the manual name left and page number right, over a 2px black rule.
- A black section tab on the right edge: 44 x 160px, left corners rounded 6px, flush with the right edge, with the chapter number (20px 700) and the chapter name rotated -90 degrees in paper color. A thin 0.8px rule runs down the page just left of the tab.
- Section number and title on one line, subtitle beneath.
- Left column about 230px wide: "PROCEDURE" heading over a 1px rule, then numbered steps (black r 10 circles with paper-colored mono numerals) each with a condensed label and a bold mono value; short notes; then the CAUTION box: 2px black border, a 30px amber header strip with a black warning triangle and "CAUTION", and 14px body text.
- Right column: a figure caption line ("FIG. 7-6" + title) over a 1px rule, then the plot in a 1.2px black frame.
- Footer rule with the source left and a revision label right (700 11px uppercase).

Axes and grid:
- Plot framed on all four sides. Dotted minor grid (0.5px #B9B4A8, 1 on 2 off) and solid major grid (0.9px). Mono tick values; 6px outside ticks on the x axis. Axis titles in uppercase condensed; the y title rotated.
- Limits as a dashed 1.2px black line (6 on, 3 off) with an uppercase condensed label on a paper-colored knockout.

Marks:
- Line chart: a 2.5px black line with straight segments and miter joins; each data point as a 7px paper-filled square with a 1.6px black stroke. A tolerance or uncertainty band behind it. Numbered callouts: black r 11 circles with mono numerals, joined to their points by 1px straight leaders, matching the numbered steps in the left column.
- Bar chart: square-cornered bars filled #CFCBC0 with a 1.2px black outline, the referenced bars numbered with the same black callout circles; error or tolerance ranges as black I-beams; values in bold mono above each bar.
- A small boxed legend inside the frame (paper fill, 0.8px black border).

Avoid: color beyond amber, gradients, shadows, rounded bars, decorative icons, sans-serif fonts other than the condensed face.

When you're done, render the chart and check that callout numbers match the left-column steps, the CAUTION box reads at thumbnail size, the section tab sits flush right, and the title's number matches the data.
