Chart Prompts

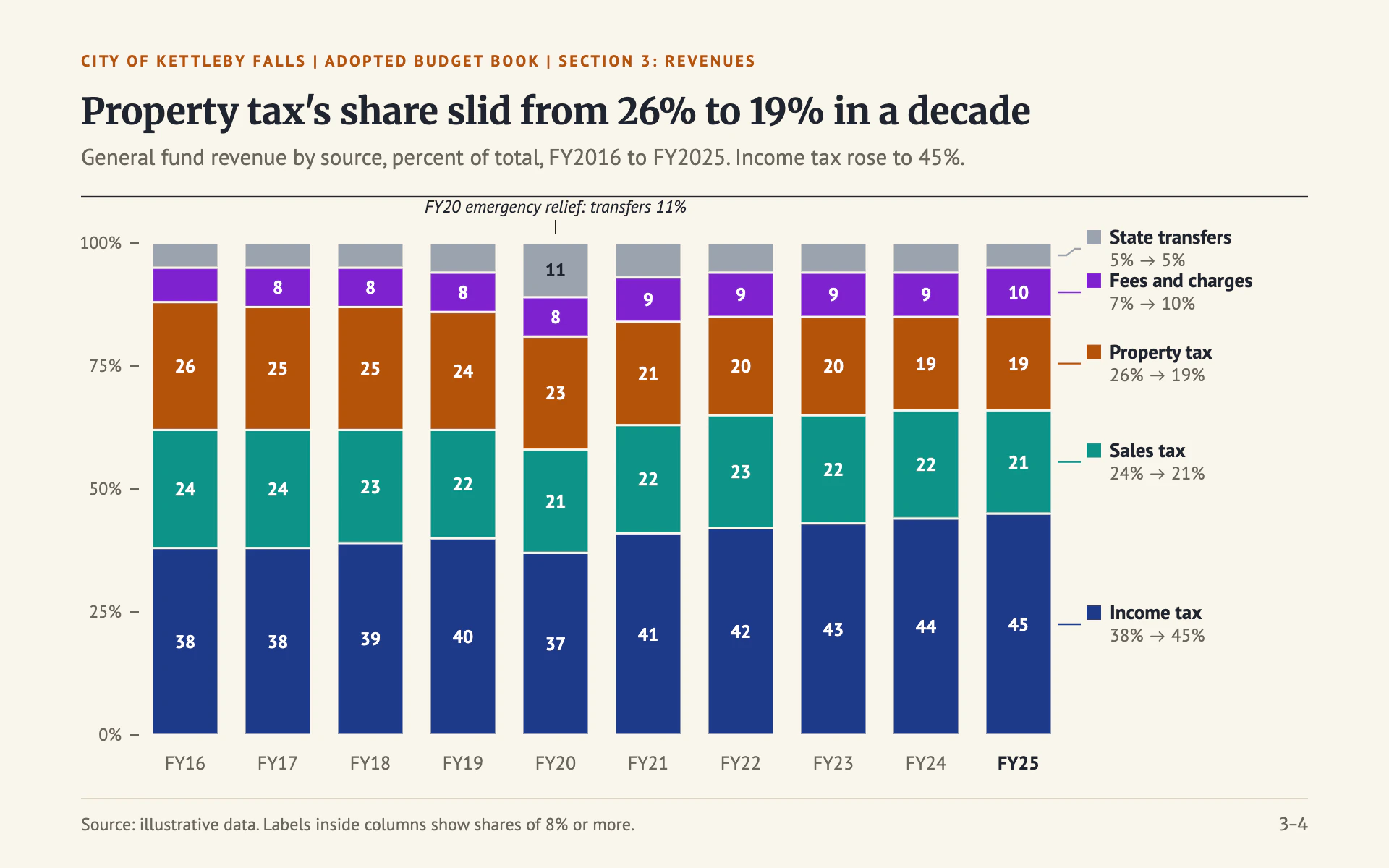

Restyle my chart in the "Revenue Sources" style described below. Keep my data, chart type, title meaning and units; change only the presentation. Use the charting library this project already uses (plain SVG if there is none). If the library can't express a detail, draw it in a custom layer instead of dropping it. Measurements assume a 960 x 600 chart; scale them proportionally.

Mood: a page from a city's adopted budget book. Cream stock, a sturdy serif headline, five clear civic colors and every share printed where it lives. Clean and explanatory rather than decorative.

Colors (use these exact values):
- Page: #FAF6EC (cream).
- Categories, in stacking order from the bottom: #1E3A8A (navy), #0D9488 (teal), #B45309 (ochre), #7E22CE (plum), #9CA3AF (gray, reserved for the residual or "other" category).
- Ink #1F2430 for the title and labels; secondary text #6B665C; footer rule #DDD5C3.
- The eyebrow runs in ochre #B45309.

Typography (Google Fonts):
- Merriweather 700, 25px, ink, for the title, which states the finding ("Property tax's share slid from 26% to 19% in a decade").
- PT Sans for everything else: eyebrow 700, 11px, uppercase, 1.6px letter-spacing, ochre; subtitle 400, 15.5px, #6B665C; in-segment values 700, 12.5px (white, or ink on the gray segment); category names 700, 13.5px; secondary lines 12.5px #6B665C; year labels 13px (the latest year 700 ink); annotations italic 12px; source 12px.

Layout:
- 56px side margins. Eyebrow ("CITY OF KETTLEBY FALLS | ADOPTED BUDGET BOOK | SECTION 3: REVENUES"), title, subtitle, then a 1.2px ink rule the full width.
- Plot from x 96 to about 736, leaving a right-hand column for direct category labels beside the last period. Footer rule near the bottom with the source note left and a page number ("3-4") right in Merriweather 12px.

Axes and grid:
- Percent axis on the left (0%, 25%, 50%, 75%, 100%) in 12px #6B665C with 6px tick marks. No gridlines: the segment edges do that job. No x-axis line.

Marks:
- Bar chart: 100% stacked columns, 46px wide at 10 periods, square corners, each segment separated by a 1.5px cream stroke. Print the rounded share centered in any segment of 8% or more. Beside the last column, each category gets a 10px color square, its name and a "first% → last%" line (the arrow drawn as a thin stroked path, since PT Sans has no arrow glyph), joined to its segment's midpoint by a 1.2px leader in the category color; nudge labels at least 30px apart.
- Line chart: one 2.5px line per category in the same colors on a 0 to 100% (or natural) scale, with 4px dots at each period and the same right-hand direct labels (square, name, first → last). Optionally fill the stacked areas at 85% opacity with 1.5px cream seams if the data are shares.

Labels and annotation:
- One short italic note for an anomaly (for example "FY20 emergency relief: transfers 11%"), set above the plot with a 10px ink tick down to the column.

Avoid: gradients, shadows, rounded bar corners, a separate boxed legend, 3D, and labels inside segments too thin to hold them.

When you're done, render the chart and check that every column sums to 100, the in-segment numbers are legible on their colors, the right-hand labels don't collide, and the title's start and end shares match the data.
