Chart Prompts

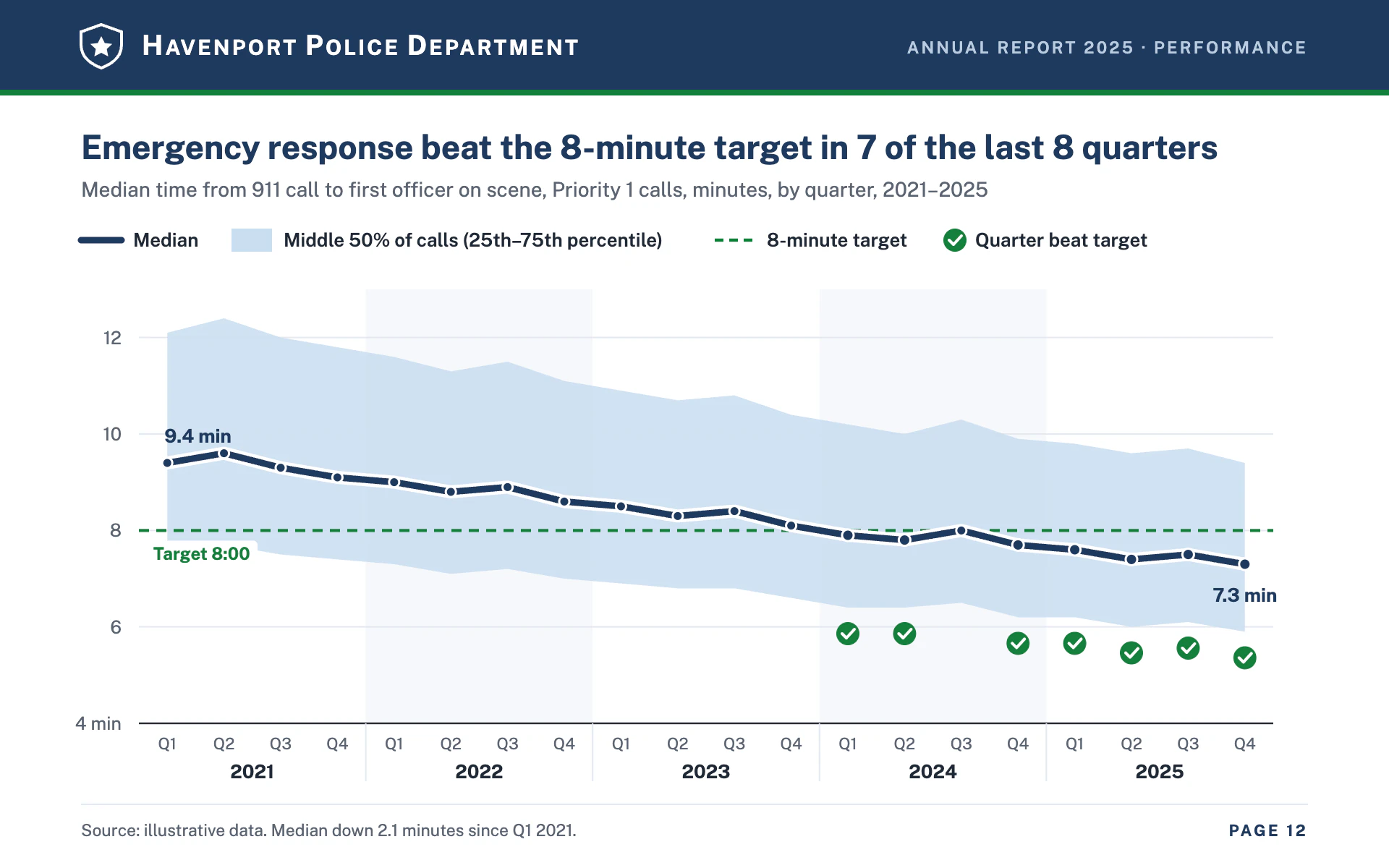

Restyle my chart in the "Response Times" style described below. Keep my data, chart type, title meaning and units; change only the presentation. Use the charting library this project already uses (plain SVG if there is none). If the library can't express a detail, draw it in a custom layer instead of dropping it. Measurements assume a 960 x 600 chart; scale them proportionally.

Mood: a performance page from a city police department's annual report. Civic, trustworthy and plain spoken: a solid navy header band, a white page, one thick navy line and a clear pass/fail target.

Colors (use these exact values):
- Page: #FFFFFF. Header band and primary data ink: #1E3A5F (department navy).
- Uncertainty band (interquartile range or any spread): #C9DDF0 at 85% opacity.
- Target line, target label and "met target" badges: #15803D (green). Also a 4px green rule directly under the header band.
- Body ink: #1F2937. Secondary text: #5B6472. Gridlines and rules: #E3E8EF. Alternate-year column shading: #F6F8FB. Header right-side text: #B9CBE0.

Typography (Google Fonts): Public Sans throughout.
- Wordmark in the header: 700, white, true small caps faked with 19px capitals and 14.5px lowercase-as-capitals, 1.6px letter-spacing, preceded by a simple outlined shield with a white star (about 28 x 30px).
- Header right: 11.5px 600 uppercase, 1.6px letter-spacing ("ANNUAL REPORT 2025 · PERFORMANCE").
- Title: 700, 23px, navy, sentence case, stating the finding. Subtitle: 14px #5B6472 with measure, unit and period.
- Legend labels 13px 600 ink; axis labels 12.5px (quarters 11px); year labels 13px 700; data labels 13px 700 navy; footer 11.5px, page number 11px 700 with 1.6px letter-spacing.

Layout:
- Header band 62px tall, full width, with the 4px green rule beneath. 56px side margins.
- Title about 44px below the band, subtitle under it, then a one-line legend row at about y 166.
- Plot from about y 200 to y 500, x 96 to 880. Footer rule at y 556 with source on the left and "PAGE 12" on the right.

Axes and grid:
- Horizontal 1px #E3E8EF gridlines only; y labels on the left, the lowest one carries the unit ("4 min").
- A 1.2px ink baseline. For time series, two-tier x labels: period ticks (Q1 to Q4) and bold years centered beneath, with thin #E3E8EF separators between years and every other year shaded #F6F8FB.

Marks:
- Line chart: a 4.5px navy line with round joins, with a 9px white halo under it so it separates from the band; dots r 3.5 to 4 in navy with a 1.5px white ring. Spread as a #C9DDF0 band between the 25th and 75th percentiles. Target as a 2.2px green dashed line (7 on, 5 off) with a "Target 8:00" label in 12px 700 green on a small white plate at the left end. Every period that beats the target gets a green check badge (r 8 circle, 2px white check stroke) 18px below the band. Label the first and last values ("9.4 min", "7.3 min").
- Bar chart: square-cornered navy columns about 60% of the band, the target as the same green dashed line across the plot, green check badges just above each bar that meets it, and pale #C9DDF0 whiskers or boxes for spread when available.

Avoid: gradients, shadows, more than one accent, decorative icons beyond the shield and the check badges, and red for failing periods (failing is simply the absence of a check).

When you're done, render the chart and check that the title count of periods beating the target matches the badges, the last-value label does not collide with the target label, and the badges sit clear of the band.
