Chart Prompts

Restyle my chart in the "Read Depth" style described below. Keep my data, chart type, title meaning and units; change only the presentation. Use the charting library this project already uses (plain SVG if there is none). If the library can't express a detail, draw it in a custom layer instead of dropping it. Measurements assume a 960 x 600 chart; scale them proportionally.

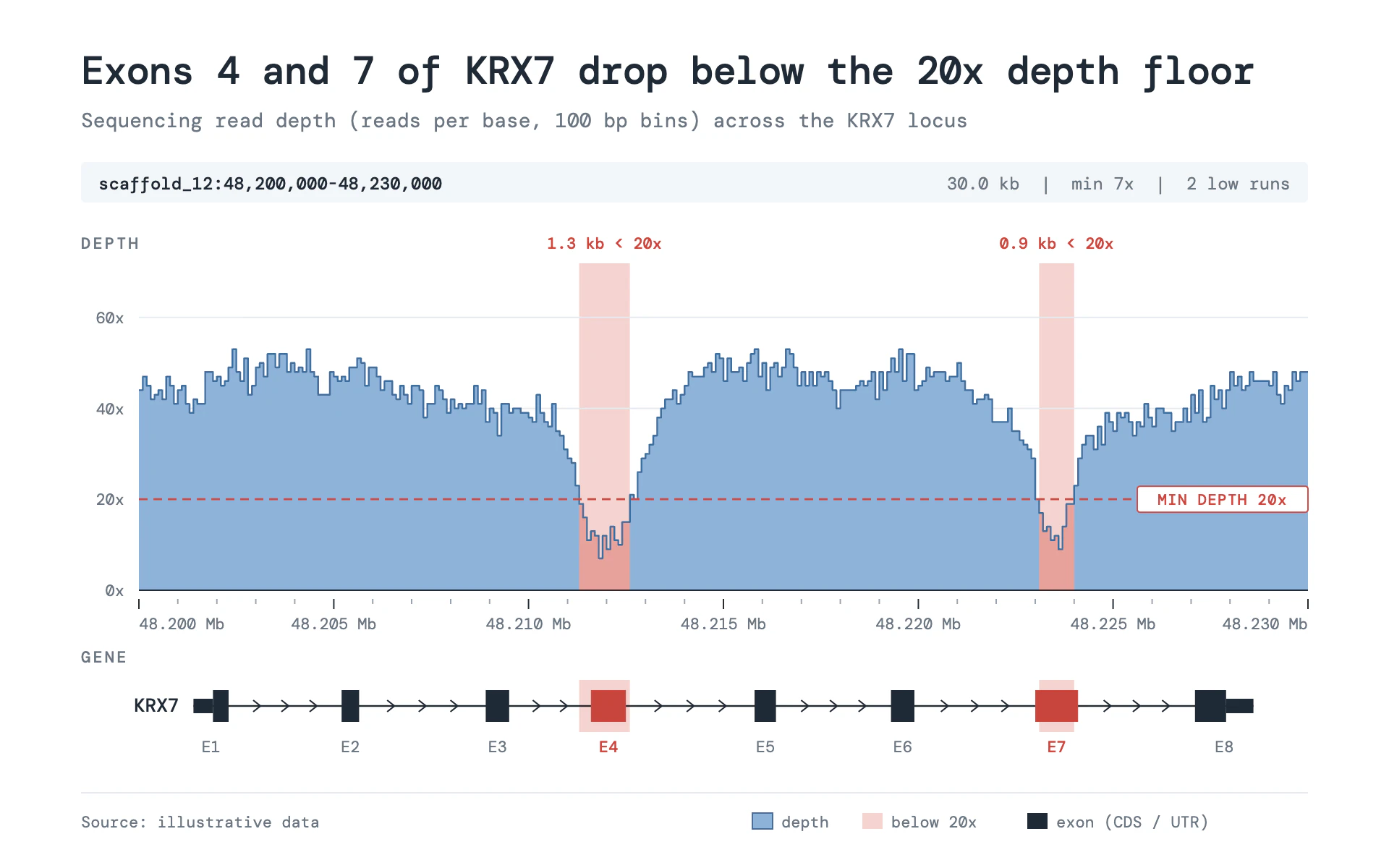

Mood: a genome browser coverage track exported for a methods figure. Technical, exact and quiet: monospaced coordinates, a single steel-blue data mark and red reserved strictly for what falls short of a threshold.

Colors (use these exact values):
- Page: #FFFFFF. A coordinate bar under the subtitle in #F3F6F9.
- Data area: #8FB3D9 (light steel blue) with a 1.2px #3E6E9E edge on top.
- Shortfall: #F4D3D0 (pale red wash) for full-height bands behind stretches below the threshold; inside those bands the area itself turns #E7A29B.
- Threshold and anything flagged: #C8453C.
- Ink (title, axis baseline, gene model): #1F2A36. Secondary text: #6B7682. Gridlines: #E6EAEF.

Typography (Google Fonts):
- DM Mono for everything. Title 500, 27px, -0.6px letter-spacing, stating the finding. Subtitle 400, 14px #6B7682 with measure, unit and bin size.
- Coordinate bar text 12px (region in 500 ink on the left, summary stats in 400 #6B7682 on the right, separated by " | ").
- Track labels ("DEPTH", "GENE") 500, 11px, uppercase, 1.6px letter-spacing, #6B7682. Axis labels 11px #6B7682; shortfall labels 500 11px in #C8453C.

Layout:
- 56px side margins. Title at the top, subtitle below, then a full-width 28px-tall coordinate bar with 3px radius.
- The main track occupies the middle (about 220px tall) with y labels at its left, a coordinate ruler right under it, then a separate gene track about 80px below the ruler.
- Footer: a 1px #E6EAEF rule, "Source: ..." on the left and a small square-swatch legend (depth, below threshold, exon) on the right.

Axes and grid:
- Y labels as "0x", "20x", "40x", "60x" right-aligned 10px left of the plot; 1px #E6EAEF horizontal gridlines; a 1px ink baseline.
- X is a genomic ruler: 1px ticks every 1 kb (3.5px long, #9AA4AE), major ticks every 5 kb (7px long, ink) labeled "48.205 Mb" 21px below the baseline.

Marks:
- Line chart: a stepped area (horizontal run per bin, vertical risers, no smoothing) filled #8FB3D9 with a 1.2px #3E6E9E edge. Compute runs below the threshold from the data; give each a full-height #F4D3D0 band behind the plot, fill the area inside it #E7A29B, and label it above the plot ("1.3 kb < 20x"). The threshold is a 1.4px #C8453C line dashed 6 on, 4 off, with a white tag at the right edge: 118 x 18, 2px radius, 1px red border, "MIN DEPTH 20x" in 500 10.5px red.
- Bar chart: square-cornered columns in #8FB3D9 with a 1px #3E6E9E top edge and no gaps wider than 1px, the same threshold line and tag; bars under the threshold turn #E7A29B and get a #F4D3D0 band behind them.
- Gene track (or any annotation track under the chart): a 1.2px ink intron line with open chevrons (1.1px, 5px wide) every ~26px pointing in the strand direction, exon boxes 22px tall for coding parts and 10px tall for untranslated ends, all #1F2A36, exons touched by a shortfall in #C8453C over a #F4D3D0 band. Exon numbers ("E4") in 11px 32px below the line, red and 500 for flagged exons. Gene name 500 13px, right-aligned 10px left of the model.

Avoid: smoothing the coverage, gradients, shadows, rounded bars, more than one data color, and red anywhere that is not a shortfall.

When you're done, render the chart and check that every labeled shortfall length matches the data, flagged exons really overlap a shortfall, the step edge sits exactly on the area, and the ruler labels at the ends do not clip.
