Chart Prompts

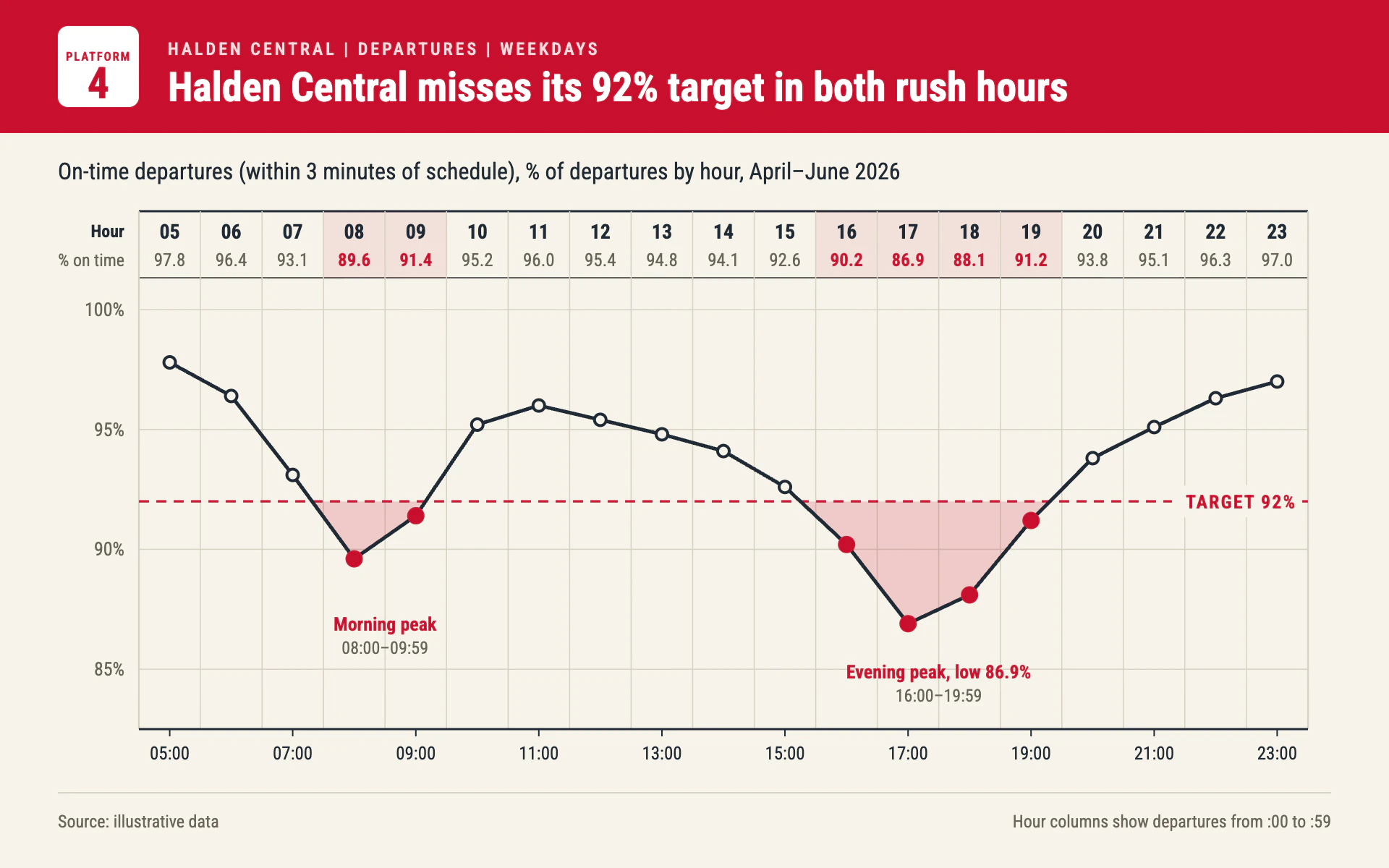

Restyle my chart in the "Rail Timetable" style described below. Keep my data, chart type, title meaning and units; change only the presentation. Use the charting library this project already uses (plain SVG if there is none). If the library can't express a detail, draw it in a custom layer instead of dropping it. Measurements assume a 960 x 600 chart; scale them proportionally.

Mood: a printed station timetable. Warm off-white paper, a rail-red header band with a white platform badge, condensed type and a grid of thin column rules, one per time period, with the values printed in the column heads like departure times.

Colors (use these exact values):
- Paper background: #F6F3EA. Header band and every "below target" highlight: #C8102E. Badge: #FFFFFF.
- Ink for the line, headings and strong rules: #1F2A36. Secondary text: #6A6558. Column rules and gridlines: #D8D2C4.

Typography (Google Fonts):
- Roboto Condensed only. Header kicker 500, 12px uppercase, 2px letter-spacing, white at 85% opacity, words separated by " | ". Title 700, 28px white on the band, stating the finding. Subtitle 400, 16px #1F2A36 on the paper, giving measure, unit and period.
- Column heads: period 700 14px #1F2A36; value 400 12.5px #6A6558, or 700 #C8102E when below target. Axis labels 12.5 to 13px. Callouts 700 13px #C8102E with a 12px #6A6558 time range under them. Badge: "PLATFORM" 700 8.5px with 0.8px letter-spacing, number 700 30px, both #C8102E.

Layout:
- A full-width #C8102E band 92px tall. At x 40, y 18 a 56 x 56 white badge (rx 7) holding "PLATFORM" and a number. Kicker at x 116, y 38; title at x 116, y 70.
- Subtitle at x 40, y 124. Plot from x 96 to 904, one equal column per x category.
- Column-head table from y 146 to 192: a 1.5px ink rule on top, a 0.8px ink rule below, row labels "Hour" and "% on time" right-aligned left of the table. Columns below target get a #C8102E tint at 8% opacity in the head.
- Plot from y 214 to 504. Footer: a 1px #D8D2C4 rule at y 548, "Source: ..." at the left and a short note on the right at y 572, 12px #6A6558.

Axes and grid:
- Vertical 0.8px #D8D2C4 column rules at every column boundary, running from the table top down to the baseline (1.2px at the outer edges).
- Horizontal 0.8px #D8D2C4 gridlines every 5 units, labeled "85%" 13px right-aligned 10px left of the plot. A 1.5px #1F2A36 baseline.
- X labels as 24-hour clock times ("05:00") 12.5px under 5px ticks, every other column.
- Target: a 1.6px #C8102E dashed line (7 on, 5 off) across the plot, labeled "TARGET 92%" 700 13px with 1px letter-spacing at its right end on a paper-colored knockout.

Marks:
- Line chart: a 2.5px #1F2A36 polyline with straight segments through the column centers. Points r 4 paper fill with a 2px ink ring; points below target r 5 solid #C8102E. Shade the shortfall between the line and the target line with #C8102E at 18% opacity (clip to the area below the target).
- Bar chart: one slim bar per column (about 45% of the column width), solid #1F2A36, square corners; bars that miss the target are solid #C8102E. The same dashed target line, column rules and column-head values.

Labels and annotation:
- Name each shortfall under its dip ("Morning peak", "Evening peak, low 86.9%") in red with the clock range beneath.

Avoid: rounded bars, gradients, shadows, sans serif fonts other than Roboto Condensed, colors beyond red and ink, and 12-hour times.

When you're done, render the chart and check that the column-head values match the data exactly, every below-target value is red in both the table and the chart, and the target label does not collide with the line.
