Chart Prompts

Restyle my chart in the "Print Proof" style described below. Keep my data, chart type, title meaning and units; change only the presentation. Use the charting library this project already uses (plain SVG if there is none). If the library can't express a detail, draw it in a custom layer instead of dropping it. Measurements assume a 960 x 600 chart; scale them proportionally.

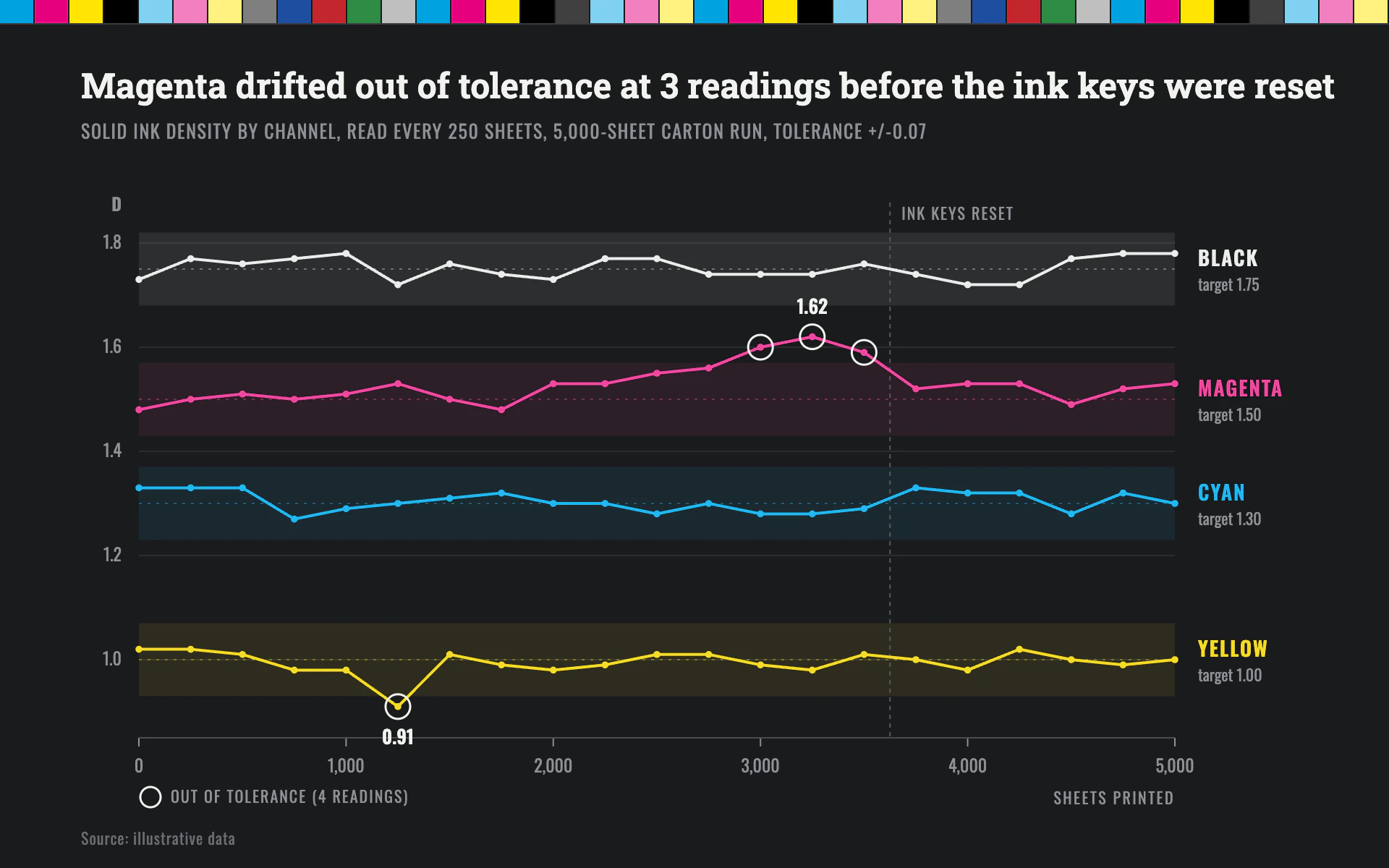

Mood: a densitometer readout taped up in a press room. Dark, technical and exact, with a printed color bar along the top edge like the margin of a press sheet.

Colors (use these exact values):
- Background: #1A1B1D. Title and callout numbers: #F2F2F0. Secondary text: #8E9196. Gridlines: #2C2E32; baseline #4A4D52; source #6A6D72.
- Series: cyan #22B8F0, magenta #F0479F, yellow #F5DC2A and white #ECECEC (standing in for black ink). If there are fewer series, use them in the order cyan, magenta, yellow, white.
- Color bar patches repeat #00A3E0, #E5007E, #FFE500, #000000, #7FD1F0, #F27FBE, #FFF27F, #7F7F7F, #1F4FA0, #C4262E, #2E8B45, #BFBFBF.

Typography (Google Fonts):
- Roboto Slab 600 for the title, 24px, #F2F2F0, stating the finding.
- Oswald for everything else: subtitle 13px 400 uppercase #8E9196 with 0.8px letter-spacing (measure, sampling interval, run, tolerance); axis labels 12px; series labels 14px 600 uppercase in the series color with 1px letter-spacing and a "target 1.50" line below in 11px #8E9196; callout numbers 13px 600; notes 11px uppercase with 1px letter-spacing.

Layout:
- A color bar strip across the full top edge: 24px wide patches, 16px tall, 1px gaps, with a 1px #3A3C40 line under it.
- 56px side margins. Title baseline at 68, subtitle at 96. Plot from x 96 to 812 and y 150 to 510; series labels at x 828, aligned with each series' target.
- A small ring legend under the plot ("OUT OF TOLERANCE (4 READINGS)") and the source at y 584.

Axes and grid:
- Horizontal gridlines 1px #2C2E32, y labels right-aligned 12px left of the plot, a small "D" unit label above them.
- A 1px #4A4D52 baseline with 6px ticks at each x label; the x-axis title in uppercase 11px at the right end.

Marks:
- Line chart: straight 2px segments with 2.4px dots at every reading. Each series gets a tolerance band (target plus or minus the tolerance) filled in its own color at 9% opacity and a 1px dotted target line (dash 2 4) at 35% opacity. Circle every out-of-tolerance reading with a 8.5px radius, 1.5px #F2F2F0 ring and print the worst values next to their rings.
- Bar chart: one bar per reading or per job, 2px-wide gaps, filled in the series color at 85% opacity, square corners, starting at zero; draw the tolerance band as a faint horizontal band behind the bars and ring any bar top that falls outside it. Group by ink with the color bar strip still across the top.

Labels and annotation:
- Mark press interventions (ink keys reset, wash-up) with a 1px dashed #55585E vertical line and an uppercase Oswald 11px note at its top.

Avoid: glows, gradients, rounded corners, legends in boxes, and any color outside the process-ink set.

When you're done, render the chart and check that the color bar spans the full width, tolerance bands don't overlap each other, every ring sits on a reading that is actually outside its band, and the counts in the title and legend match the data.
