Chart Prompts

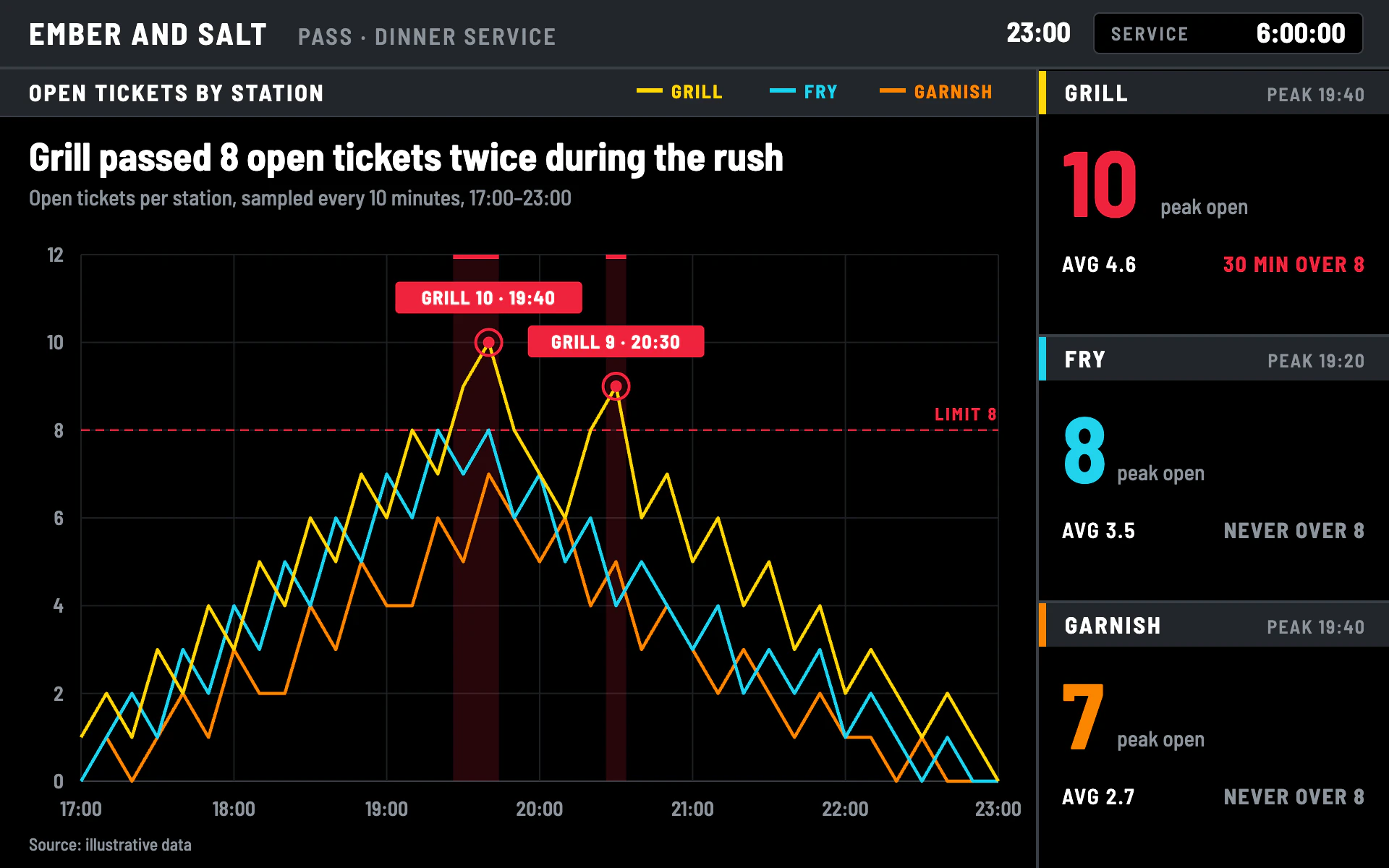

Restyle my chart in the "Pass Monitor" style described below. Keep my data, chart type, title meaning and units; change only the presentation. Use the charting library this project already uses (plain SVG if there is none). If the library can't express a detail, draw it in a custom layer instead of dropping it. Measurements assume a 960 x 600 chart; scale them proportionally.

Mood: the kitchen display screen above the pass during dinner service. Pure black, tiled, loud where it matters and quiet everywhere else. Readable from across a hot kitchen.

Colors (use these exact values):
- Screen: #000000. Tile borders: #3A3F45 (2px). Header bars: #23262B. Faint gridlines: #1C1F23.
- Series: #FFD60A (yellow), #22D3EE (cyan), #FB8500 (orange).
- Alert: #EF233C (red) for the limit line, flash markers and any over-limit number.
- Primary text: #FFFFFF. Secondary text: #8D949C.

Typography (Google Fonts):
- Barlow Semi Condensed throughout: screen header name 21px 700 uppercase with 1.5px letter-spacing; tile headers 16px 700 uppercase with 1.5px letter-spacing; the title 27px 700 white stating the finding; subtitle 15px 500 #8D949C; axis labels 14px 600 #8D949C; legend and chip text 13px 700 uppercase; big tile numbers 64px 700; tile stats 15px 600 to 700 uppercase.

Layout:
- A 46px screen header bar across the top with the venue name, a gray context label, the wall clock in 19px 700 white and a clock chip (black, 1px #3A3F45 border, rx 4) reading "SERVICE 6:00:00".
- A main tile on the left (about 75% width) with its own 32px header bar holding the chart name and an inline legend (18 x 3 px color swatch plus the series name in its color). Title and subtitle sit inside the tile under the header bar.
- A right column of stacked tiles, one per series: header bar with a 5px color strip, the series name and a "PEAK 19:40" note; a 64px peak value in the series color (red if over the limit) with "peak open" beside it; an average and a minutes-over-limit count (red) or "NEVER OVER 8" (gray).
- "Source: illustrative data" 12px at the bottom left of the main tile.

Axes and grid:
- 1px #1C1F23 horizontal gridlines every 2 units and vertical ones every hour; a #3A3F45 baseline. Labels in #8D949C.
- The limit is a 1.2px #EF233C dashed line (6 on, 4 off) labeled "LIMIT 8" in 12px 700 red above its right end.

Marks:
- Line chart: thin 2.2px straight-segment lines with round joins, no dots. Wherever a series passes the limit, shade that time span as a full-height #EF233C band at 16% opacity with a 3px solid red cap at the top, and mark the peak with a 4px red dot inside a 9px red ring plus a solid red label chip (rx 3, 22px tall) reading "GRILL 10 · 19:40" in 13px 700 white.
- Bar chart: slim square-cornered bars in the series colors on black, grouped per period with 2px black gaps; any bar over the limit gets a red outline, a red cap and the same red label chip; the limit line and tiles stay the same.

Avoid: glows, gradients, rounded tiles, soft shadows, thick lines, and more than one alert color.

When you're done, render the chart and check that every over-limit span has a band, marker and chip, chips don't collide with each other or the lines' peaks, the tile numbers match the data, and nothing touches the tile borders.
