Chart Prompts

1,337 ways to dress a line or bar chart, 669 light and 668 dark. Open any chart to see it full size and copy a prompt that gives your own chart the same look.

Every chart uses illustrative data. The prompts work with any coding agent and any charting library; they describe colors, type, spacing and marks precisely enough to reproduce each look.

← More from Emergent Mind Labs

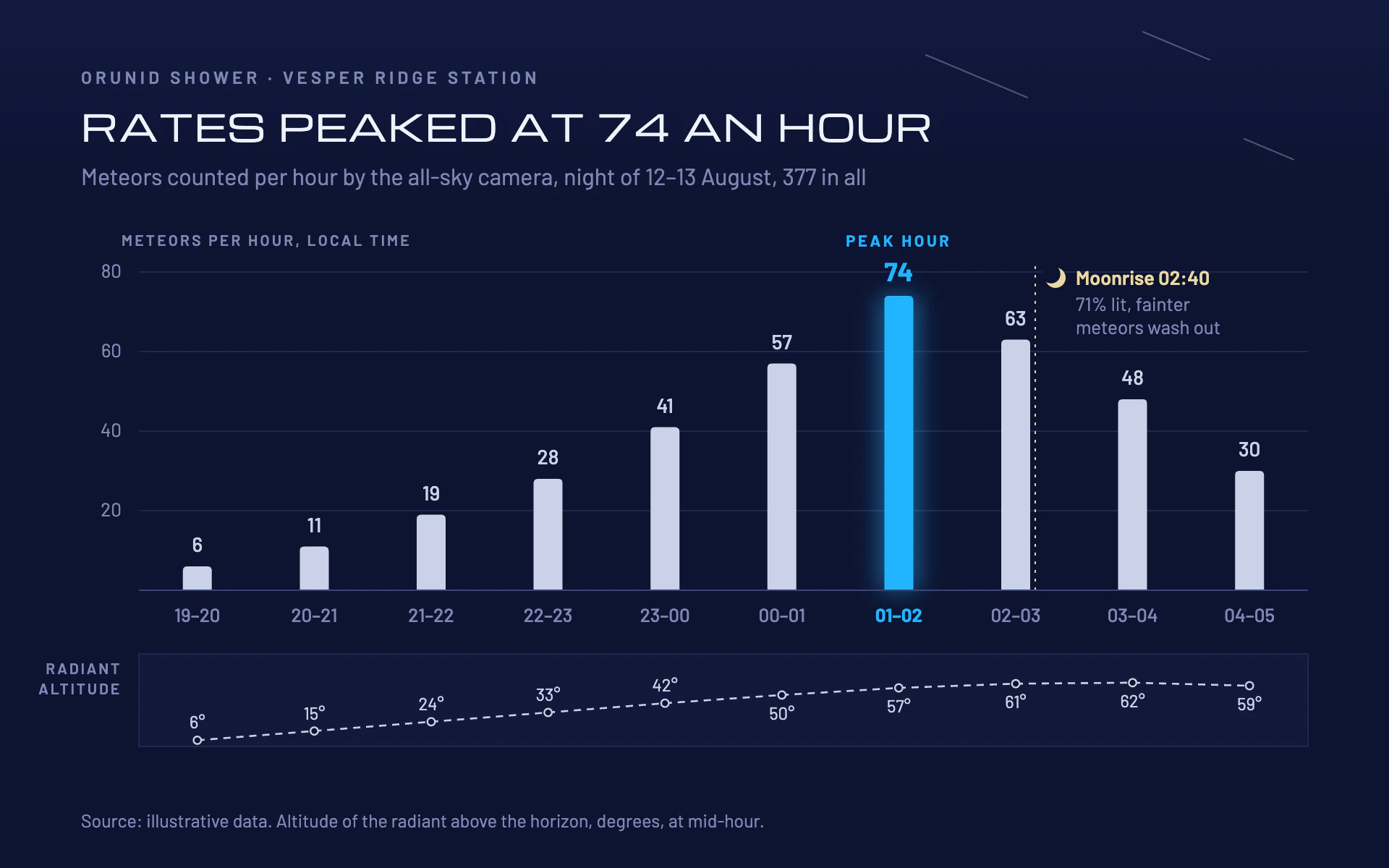

Meteor Rates bar chart, dark theme: Slim silver hourly bars, an ice blue peak and a radiant altitude inset strip.

Meteor Rates

DarkBar

Slim silver hourly bars, an ice blue peak and a radiant altitude inset strip.

  • Midnight blue#0D1330
  • Silver#C9D1E8
  • Ice blue#22B4FF
  • Moon gold#E9D8A6
  • Dusk muted#7D88B3

Prompt for your coding agent

Paste it with your chart's code. It restyles your data to match this chart.

Restyle my chart in the "Meteor Rates" style described below. Keep my data, chart type, title meaning and units; change only the presentation. Use the charting library this project already uses (plain SVG if there is none). If the library can't express a detail, draw it in a custom layer instead of dropping it. Measurements assume a 960 x 600 chart; scale them proportionally.

Mood: an amateur observing society's night report, polished for print. Midnight blue sky, slim silver bars, one ice blue peak, a wide space-age title and a quiet inset for the context measure.

Colors (use these exact values):
- Background: #0D1330, with the top 150px graded from #121A40 down to #0D1330, and two or three faint meteor streaks (1px #C9D1E8 at 35% opacity) in the empty header corner.
- Ordinary bars, value labels and the inset line: #C9D1E8 (pale silver).
- The single highlighted bar and its labels: #22B4FF (ice blue).
- Event note (for example moonrise) and its marker: #E9D8A6 (moon gold).
- Secondary text: #7D88B3. Gridlines and frames: #1F2850. Baseline: #3A4577. Title: #EEF2FC.

Typography (Google Fonts):
- Michroma (400 only) for the title: 25px, uppercase, 1px letter-spacing, stating the finding.
- Barlow for everything else: eyebrow 600 12px uppercase with 2.6px letter-spacing; subtitle 16px #7D88B3; value labels 500 14px silver (the peak 700 18px ice blue); category labels 500 13px #7D88B3 (the peak 700 in ice blue); small caps labels 600 10.5px with 1.4 to 1.8px letter-spacing; the event note 600 13.5px in moon gold with 13px #7D88B3 lines underneath.

Layout:
- 56px side margins. Eyebrow at y 58, title at y 98, subtitle at y 128.
- Main plot x 96 to 904, baseline at y 408, top gridline at y 188.
- A separate inset strip for the secondary measure from y 452 to 516 across the same x range: fill #111A3C with a 1px #1F2850 outline and a two-line caps label to its left. The inset has its own implicit scale and labels each point; it never shares the bar axis.
- Source line at the bottom left in 12.5px #7D88B3.

Axes and grid:
- Horizontal 1px #1F2850 gridlines every 20 units with 13px labels; the unit in caps above the tick column. No vertical grid.
- Category labels are ranges (for example "01–02") centered under each bar 22px below the baseline.

Marks:
- Bar chart: slim bars 20px wide (about 25% of the band) with 3px rounded top corners and square bases. The peak bar is ice blue with a glow (a rect 8px wider in #22B4FF at 45% opacity, Gaussian blur 8) and a "PEAK HOUR" caps label above its value. Mark a timed event with a 1px moon gold vertical line dashed 2 on 4, a small crescent icon (two overlapping circles) and a three-line note to its right.
- Inset: the secondary measure as a 1.3px silver line dashed 5 on 4, r 2.6 hollow dots, each labeled in 12px silver (above the point for low values, below for high values).
- Line chart: a 2px silver line with small r 3 dots, the peak point as an r 6 ice blue dot with the same glow and label, the same event marker and the same inset strip underneath.

Avoid: a second y axis for the secondary measure, thick bars, more than one highlighted bar, bright gridlines, gradients inside bars and busy star fields behind the data.

When you're done, render the chart and check that only the peak is ice blue, the event note clears every bar and value label, the inset labels stay inside the strip, and the title's peak value matches the data.
