Chart Prompts

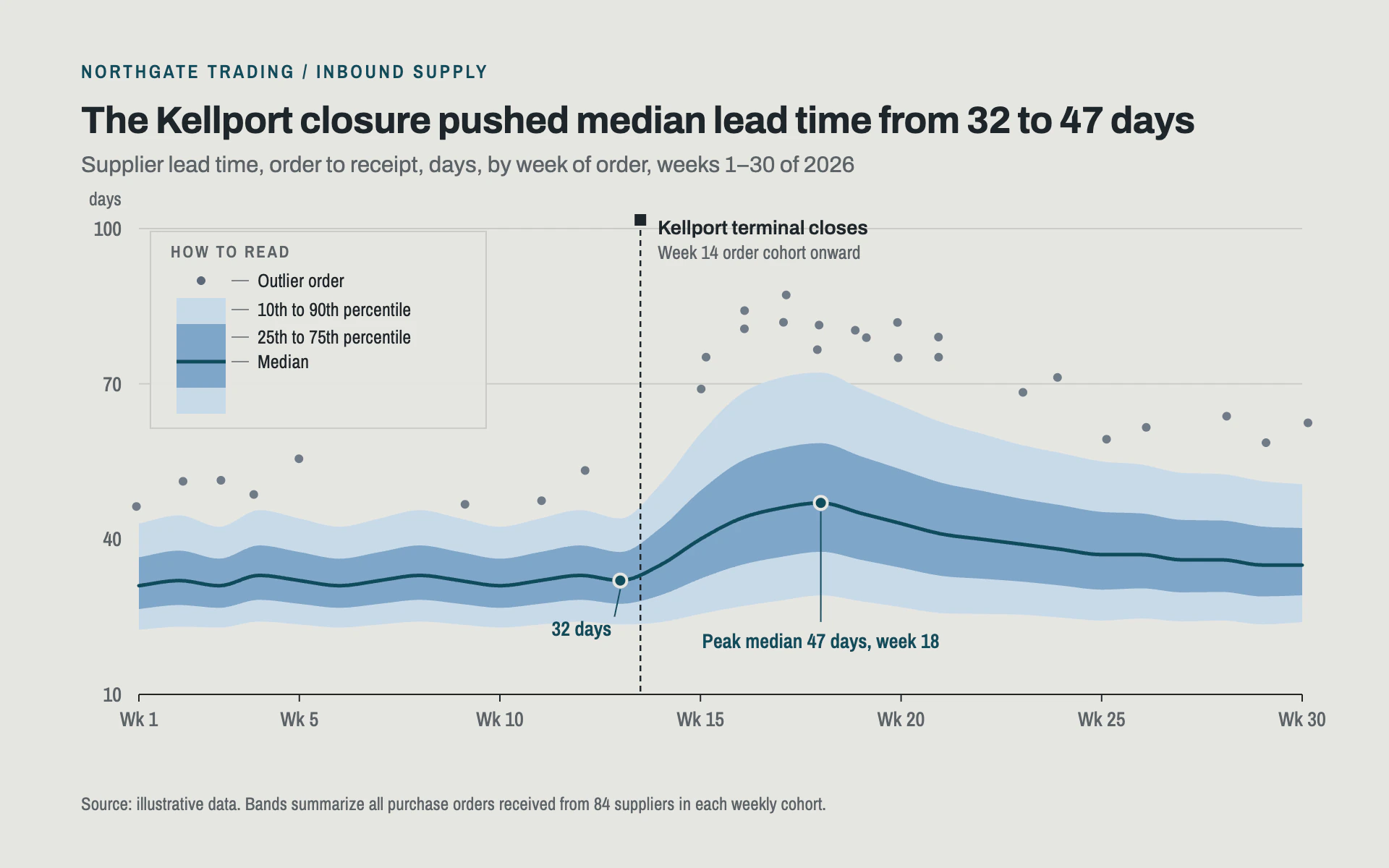

Restyle my chart in the "Lead Time Bands" style described below. Keep my data, chart type, title meaning and units; change only the presentation. Use the charting library this project already uses (plain SVG if there is none). If the library can't express a detail, draw it in a custom layer instead of dropping it. Measurements assume a 960 x 600 chart; scale them proportionally.

Mood: a supply chain analyst's distribution chart. Quiet concrete gray, cool blues and a single dark median, showing spread and risk rather than just an average.

Colors (use these exact values):
- Page: #E6E6E2 (light concrete). Primary ink: #1E262B. Secondary text: #5C6367. Gridlines and key border: #CBCBC6.
- Median line and its labels: #0F4C5C (dark petrol blue).
- Interquartile band (25th to 75th percentile): #7FA6C8.
- Outer band (10th to 90th percentile): #C8DAE9.
- Outlier dots: #5B6878 (slate) at 85% opacity.

Typography (Google Fonts):
- Archivo for the headline (700, 26px, -0.3px letter-spacing, ink, stating the finding), the subtitle (400, 15.5px, #5C6367) and the event label (600, 13.5px).
- Archivo Narrow for axis ticks (500, 14px, #5C6367), the eyebrow (600, 13px uppercase, 1.8px letter-spacing, petrol), key entries (400, 13px), key heading (600, 11.5px uppercase, 1.4px letter-spacing), value callouts (600, 14px petrol) and the source (12.5px).

Layout:
- 56px side margins. Eyebrow, headline, subtitle stacked at the top; the plot from about y 158 to y 480 with the y ticks right-aligned 12px left of it and a small "days" unit label above the top tick.
- A fan-chart style key inside the plot's empty top left corner: a 232 x 136px box filled with the page color at 92% opacity and a 1px #CBCBC6 border, headed "HOW TO READ". It shows a miniature stacked swatch (34px wide): an outlier dot on top, then the pale outer band, the medium interquartile band inside it and the median line through the middle, each with a short 12px leader to its label.
- Source line alone at the bottom left.

Axes and grid:
- Four or five horizontal 1px #CBCBC6 gridlines, no vertical gridlines. A 1px ink x-axis with 5px ticks and "Wk N" labels.

Marks:
- Line chart: draw the outer band as a filled area between the 10th and 90th percentiles, the interquartile band on top of it, then the median as a 2.5px petrol line with round caps. Use a monotone curve for all three. Scatter outlier dots (r 3) above the 90th percentile with a small horizontal jitter of up to 4px. Mark the pre-event and peak medians with r 4.5 petrol dots ringed 2px in the page color, labeled with thin petrol leaders that drop below the bands.
- Bar chart: draw each category as a range bar: a pale #C8DAE9 bar from the 10th to the 90th percentile (about 60% of the band), a narrower #7FA6C8 bar from the 25th to the 75th (about 36%), a 2.5px petrol tick across the full pale width at the median, and slate outlier dots above.
- Event marker: a 1.2px ink vertical dashed line (4 on 3 off) at the disruption, capped by an 8px ink square at the top, labeled to its right with a 13.5px 600 title and a muted 13px sub-line.

Avoid: a legend row separate from the key, gradients, drop shadows, bright or warm colors, and hiding the bands behind a thick median.

When you're done, render the chart and check that the bands are properly nested (10th <= 25th <= median <= 75th <= 90th everywhere), the key does not cover any data or outlier dots, and the headline numbers match the median values you labeled.
