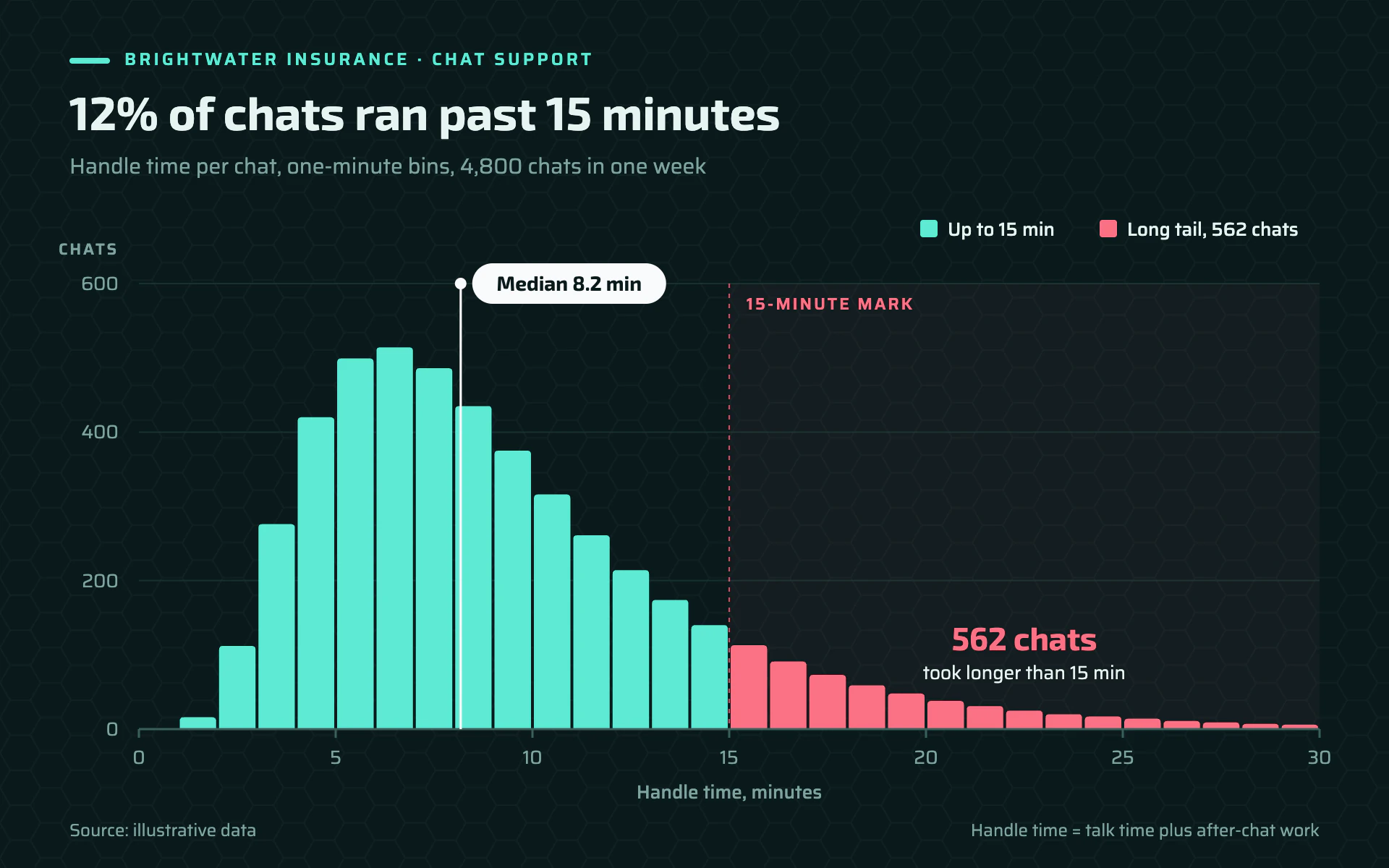

Handle Time bar chart, dark theme: Seafoam histogram on hex-textured teal-black with a coral tail and median pill.

Handle Time

DarkBar

Seafoam histogram on hex-textured teal-black with a coral tail and median pill.

  • Deep Teal#0A1A1C
  • Seafoam#5EEAD4
  • Coral Tail#FB7185
  • Pill White#F8FAFC

Prompt for your coding agent

Paste it with your chart's code. It restyles your data to match this chart.

Restyle my chart in the "Handle Time" style described below. Keep my data, chart type, title meaning and units; change only the presentation. Use the charting library this project already uses (plain SVG if there is none). If the library can't express a detail, draw it in a custom layer instead of dropping it. Measurements assume a 960 x 600 chart; scale them proportionally.

Mood: an operations analytics screen for a support desk. Deep teal-black, a faint hex texture, luminous seafoam bars and a coral tail that pulls the eye to the problem cases.

Colors (use these exact values):
- Background: #0A1A1C with a hexagon outline pattern (14px hex radius, 1px white strokes) at 3% opacity over the whole canvas.
- Main bars: #5EEAD4 seafoam. Tail or exception bars, the threshold rule and its label: #FB7185 coral. The tail region gets a coral tint at 4% opacity.
- Median rule and pill: #F8FAFC, pill text in the background color.
- Ink #E6F4F1, secondary #7FA3A0, gridlines #18302F, baseline and ticks #3B5F5C.

Typography (Google Fonts):
- Exo 2 for the title (700, 32px, #E6F4F1, stating the finding), the median pill text (700, 14px) and the tail callout number (700, 22px coral).
- Saira for the eyebrow (600, 12px uppercase, 2px letter-spacing, seafoam, after a 28 x 4px seafoam rounded dash), subtitle (15px #7FA3A0), legend (500 13px), tick labels (13px), axis title (500 13px), small caps markers ("15-MINUTE MARK", "CHATS": 600 11 to 11.5px, 1.4px letter-spacing) and notes (12px).

Layout:
- 48px margins. Eyebrow at y 45, title at 90, subtitle at 120. Legend right-aligned above the plot.
- Plot from y 196 to 504, x 96 to 912. X axis title centered under the tick labels. Source left and a definition note right on the bottom line.

Axes and grid:
- 1px #18302F horizontal gridlines at round steps, y labels right-aligned with a small "CHATS" unit label above them. A 1.5px #3B5F5C baseline with 6px ticks at every fifth bin.
- The threshold: a 1px coral dashed vertical rule (3 on, 4 off, 70% opacity) at the boundary with an uppercase label at its top right.

Marks:
- Bar chart (histogram): tight bars, one per bin, with a 2px gap and 2.5px top corner radius; bins beyond the threshold in coral, the rest seafoam. A 1.6px #F8FAFC vertical median line from the baseline to the top with a 4px dot at its top and a white 28px-tall fully rounded pill label ("Median 8.2 min") to its right. A callout in the tail: count in coral Exo 2 and a one-line explanation below it.
- Line chart: a 2.5px seafoam line over a seafoam area at 12% opacity, switching to coral past the threshold, with the same median rule and pill.

Avoid: glows, 3D, gaps wider than 2px between histogram bars, a strong texture (the hexes must stay barely visible), and more than two data colors.

When you're done, render the chart and check that the bins sum to the stated total, the median is computed from the data and its rule sits at the right x, the tail count and percent in the title agree, and the hex texture is barely perceptible.
