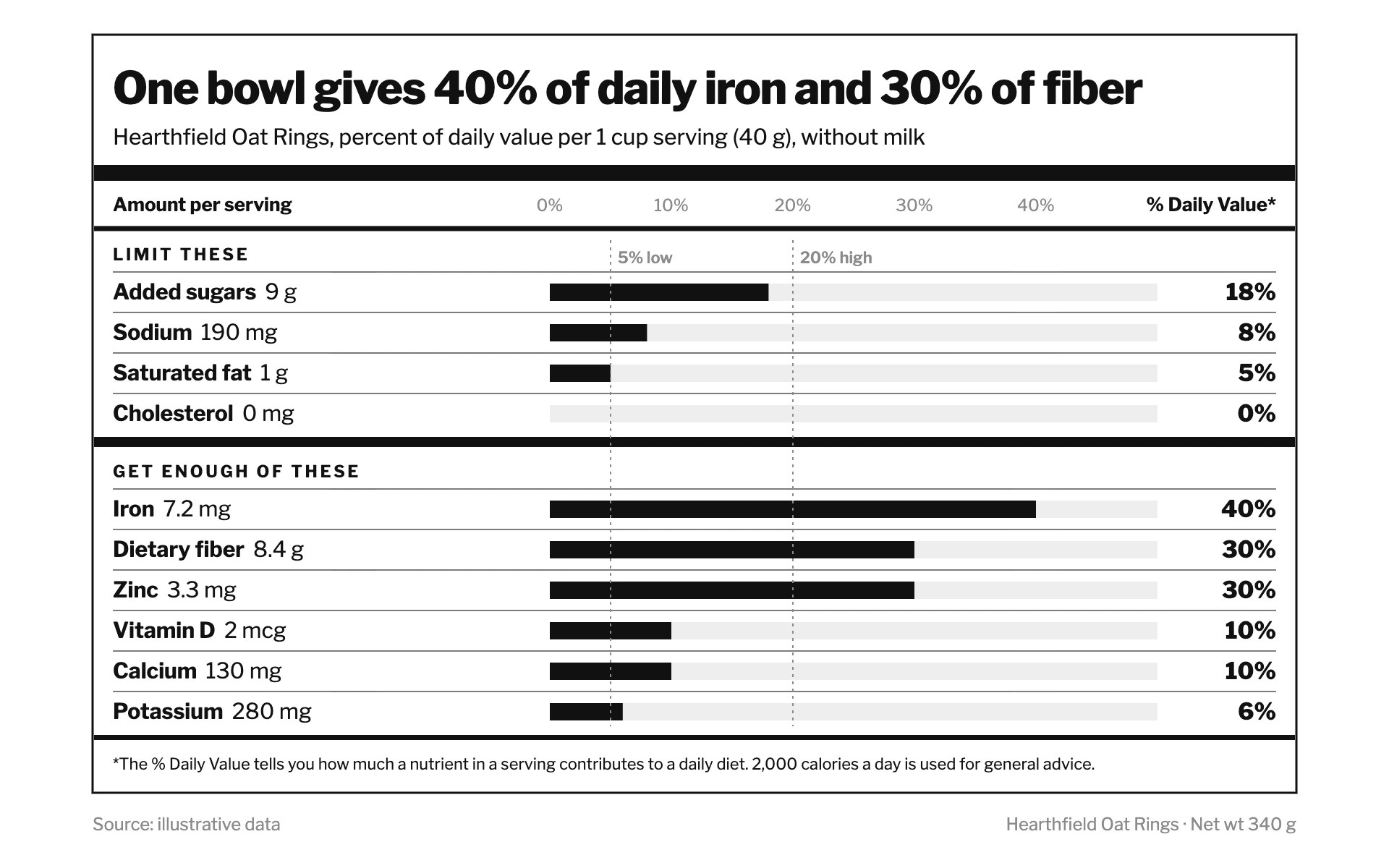

Facts Panel bar chart, light theme: A nutrition label frame with heavy rules, hairline rows and solid black bars.

Facts Panel

LightBar

A nutrition label frame with heavy rules, hairline rows and solid black bars.

  • Label white#FFFFFF
  • Label black#111111
  • Track gray#EDEDED
  • Guide gray#8A8A8A

Prompt for your coding agent

Paste it with your chart's code. It restyles your data to match this chart.

Restyle my chart in the "Facts Panel" style described below. Keep my data, chart type, title meaning and units; change only the presentation. Use the charting library this project already uses (plain SVG if there is none). If the library can't express a detail, draw it in a custom layer instead of dropping it. Measurements assume a 960 x 600 chart; scale them proportionally.

Mood: the chart is a packaged-food nutrition label. Black on white, bold and utilitarian, organized by rules of different weights rather than color.

Colors (use these exact values):
- Page: #FFFFFF. All ink, rules and bars: #111111.
- Empty bar tracks: #EDEDED. Scale labels, guide lines and the footer: #8A8A8A. No other colors.

Typography (Google Fonts):
- Libre Franklin throughout. Title 800, 31px, -0.6px letter-spacing, #111111, stating the finding. Subtitle 15px 400 naming the product, measure and serving. Column headers 13px 700. Section labels 11.5px 700 uppercase with 1.8px letter-spacing. Row names 15px 700 followed by the amount in 15px 400 (for example "Iron 7.2 mg"). Values at right 16px 800. Scale labels 11.5px 400 #8A8A8A. Footnote 11px. Footer 12px #8A8A8A.

Layout:
- The whole chart sits inside a 1.5px #111111 border from x 64 to 896 and y 24 to 548, with content inset 14px.
- Title, subtitle, then an 11px solid black bar rule spanning the border width.
- A header row: "Amount per serving" on the left, scale labels (0%, 10%, 20%...) centered over the bar area, "% Daily Value*" right-aligned; then a 3.5px black rule.
- Rows 28px tall, separated by 0.6px black hairlines. Row name and amount on the left, bar from x 380 to 800, value right-aligned at the inner edge.
- Group rows into sections with small uppercase labels ("LIMIT THESE", "GET ENOUGH OF THESE"), separated by a 7px solid black rule. End with a 3.5px rule and a one-line footnote explaining the measure.
- Below the border: "Source: ..." at left and the product name at right in the footer style.

Axes and grid:
- No axis lines. Optional reference guides as 1px #8A8A8A dashed verticals (2 on, 3 off) across the rows, labeled at the top in 11px 600 #8A8A8A ("5% low", "20% high").

Marks:
- Bar chart: horizontal bars 12px tall, solid #111111, square corners, starting at zero, over a full-length #EDEDED track so the scale is always visible. Value printed at the right edge of the row, never on the bar.
- Line chart: draw each series as a 2.5px #111111 line with square caps and 5px solid square markers; a second series uses a 2px dashed line (6 on, 4 off) with hollow square markers. Keep the label frame: border, heavy bar rule under the title, header row with the 3.5px rule, hairline gridlines at each y tick, and a 3.5px rule plus footnote at the bottom. Label each series at its right end in 13px 700.

Avoid: any color, rounded corners, gradients, shadows, icons, and a legend box.

When you're done, render the chart and check that the rule weights read as a hierarchy (11px, 7px, 3.5px, hairline), rows align on a strict grid, nothing touches the border, and every value matches its bar.
