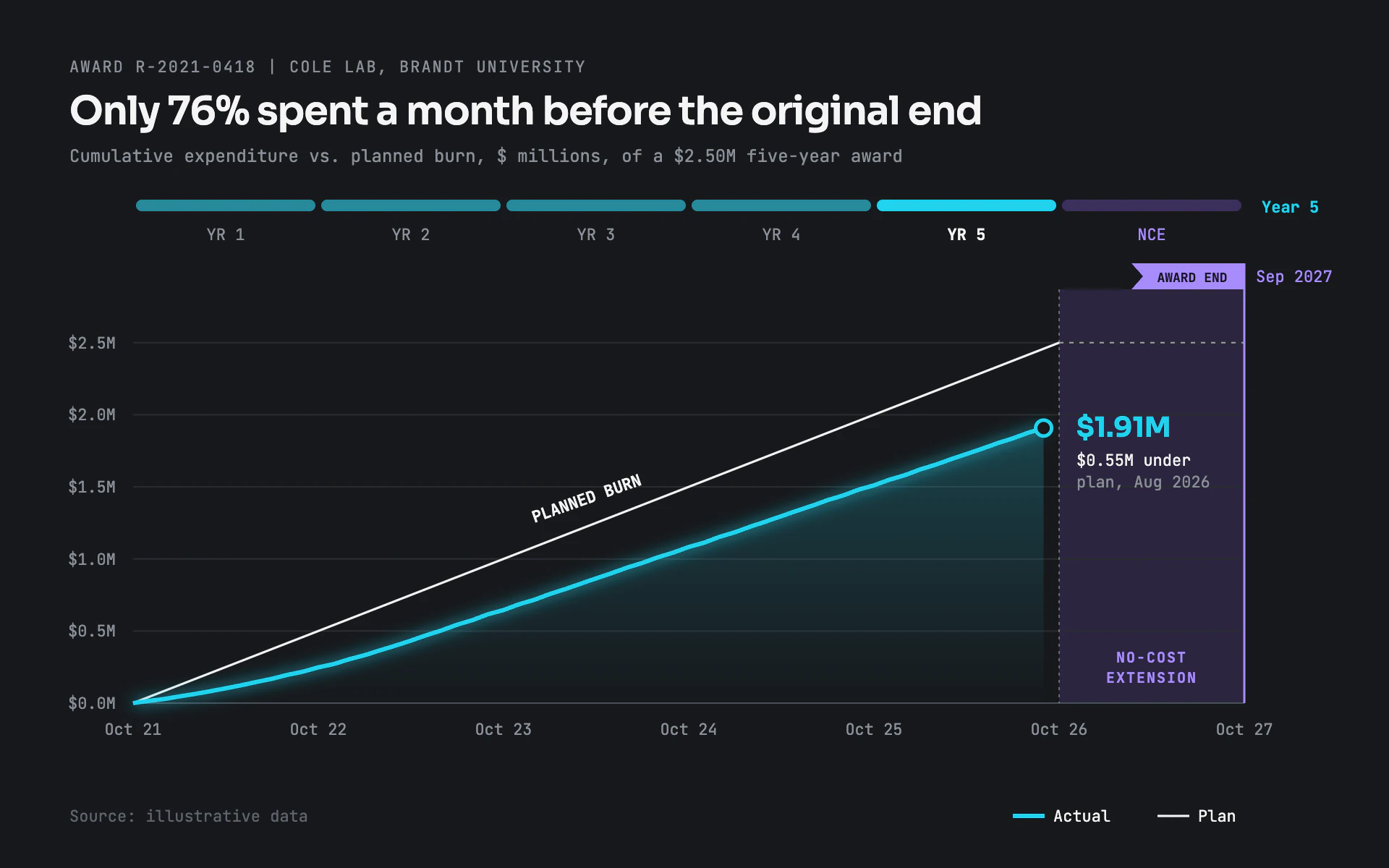

Expenditure Burn line chart, dark theme: Graphite grant panel with a glowing aqua spend line, white plan and a flagged award end.

Expenditure Burn

DarkLine

Graphite grant panel with a glowing aqua spend line, white plan and a flagged award end.

  • Graphite#17191C
  • Aqua actual#22D3EE
  • Plan white#F4F4F5
  • Extension purple#3B2F5C
  • Flag violet#A78BFA

Prompt for your coding agent

Paste it with your chart's code. It restyles your data to match this chart.

Restyle my chart in the "Expenditure Burn" style described below. Keep my data, chart type, title meaning and units; change only the presentation. Use the charting library this project already uses (plain SVG if there is none). If the library can't express a detail, draw it in a custom layer instead of dropping it. Measurements assume a 960 x 600 chart; scale them proportionally.

Mood: a grant-monitoring panel in a research finance tool. Dark graphite, technical monospace labels, one glowing aqua actual line against a crisp white plan, with the award timeline always visible.

Colors (use these exact values):
- Background: #17191C (graphite). Gridlines: #2A2D32; baseline #4A4F57.
- Actual series: #22D3EE (aqua) with a soft glow and a gradient fill under it (22% to 0% opacity).
- Plan or target: #F4F4F5 (near white).
- Extension or special period shading: #3B2F5C at 55% opacity; its labels and the end flag in #A78BFA (violet).
- Secondary text: #8B9098. Source: #60656D. Empty progress segments: #2C3036.

Typography (Google Fonts):
- Sora for the title (600, 27px, -0.5px letter-spacing, #F4F4F5, stating the finding) and the latest value label (700, 19px, aqua).
- JetBrains Mono for everything else: eyebrow 11px with 1px letter-spacing, subtitle 12px, axis labels 11px, progress strip labels 11px, flag text 9px 700, notes 11px.

Layout:
- 48px margins. Eyebrow y 50 with an award id, title y 86, subtitle y 112.
- A progress strip at y 138 aligned to the time axis: one 8px rounded (4px) segment per project year with 4px gaps, completed years filled aqua at 55% opacity, the current year full aqua; the extension segment in #3B2F5C. Labels ("YR 1" ... "NCE") 28px below, the current one bold white, and the current year named in aqua at the strip's right end.
- Plot from y 212 to 486, x 92 to 860. Legend (short line samples) bottom right, source bottom left.

Axes and grid:
- Horizontal 1px #2A2D32 gridlines, y labels like "$1.5M" right-aligned 12px from the plot. Time labels every year, centered.
- A dotted white (35% opacity) vertical rule at the original end date; a solid 1.5px violet rule at the final end date topped by a violet flag (a pennant with a notched left edge, "AWARD END" in graphite 9px 700) and the date in violet beside it.

Marks:
- Line chart: the actual cumulative line 3px aqua with a Gaussian glow (stdDeviation 5, merged with the source), ending in a hollow ring (r 5.5, graphite fill, 2.5px aqua stroke). The plan is a straight 1.6px white line to the budget at the original end, then a 1px dashed (3 4) white line at 60% opacity across the extension. A rotated 11px 700 "PLANNED BURN" label sits just above the plan line. Put the latest value and the "under plan" difference inside the extension band beside the last point.
- Bar chart: monthly or yearly spend as 70%-width aqua bars with 3px rounded tops and a faint glow, the plan as a white step line over them, and the same extension shading, strip and end flag.

Avoid: multiple accent colors, heavy area fills, rounded panel cards, drop shadows, and proportional sans for axis labels.

When you're done, render the chart and check that the percentage in the title equals the latest cumulative value divided by the budget, the glow is not clipped, the progress strip aligns with the time axis, and the flag label fits inside its pennant.
