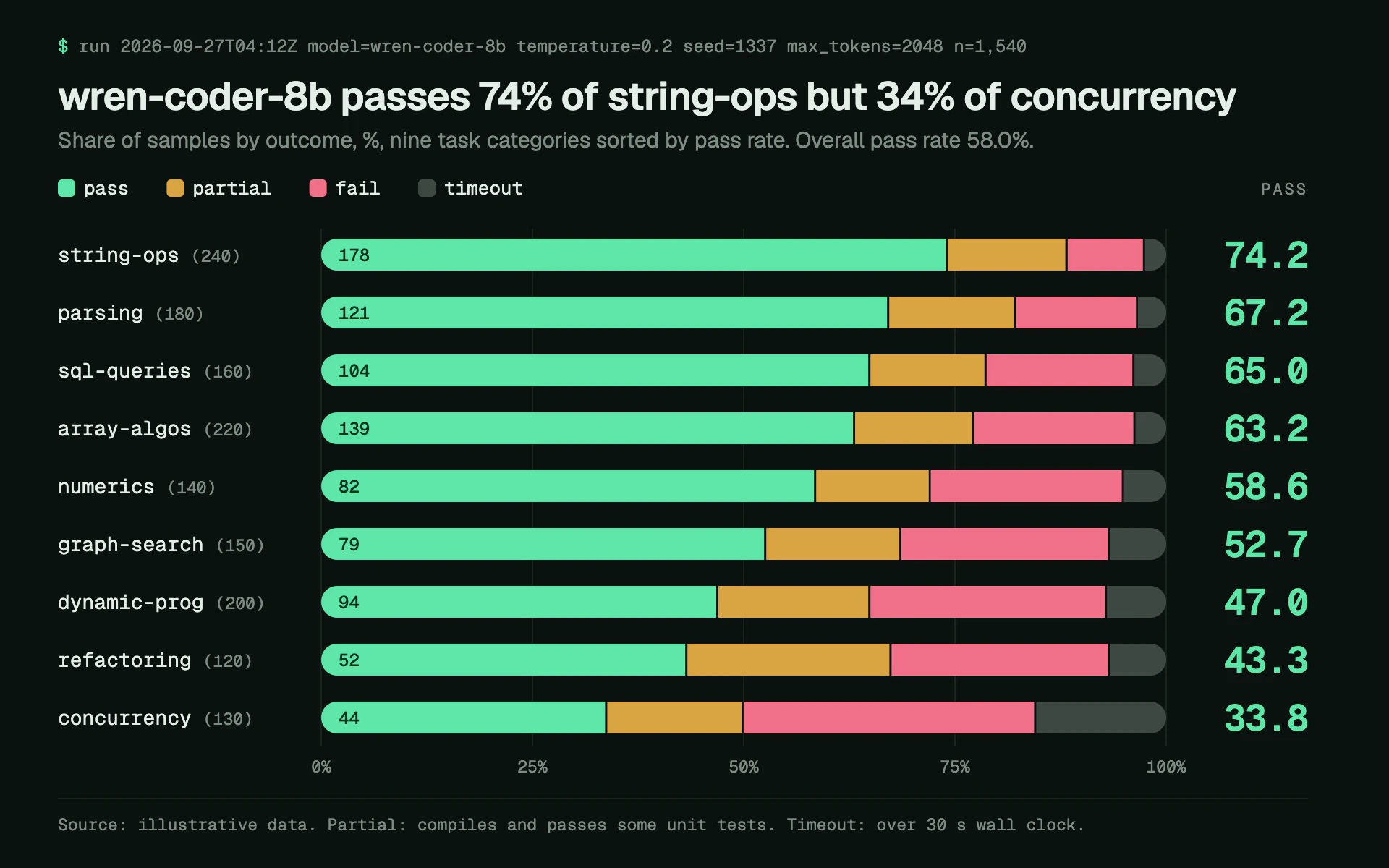

Restyle my chart in the "Eval Harness" style described below. Keep my data, chart type, title meaning and units; change only the presentation. Use the charting library this project already uses (plain SVG if there is none). If the library can't express a detail, draw it in a custom layer instead of dropping it. Measurements assume a 960 x 600 chart; scale them proportionally.

Mood: the summary report an evaluation harness prints after a run, dressed up for a slide. Near-black green background, monospace everything, one fresh mint color for success, and big pass rates you can read from across the room.

Colors (use these exact values):
- Background: #0B120F (very dark green-black). Gridlines and rules: #18231E.
- Outcomes, always in this order from left to right: pass #5EE6A8 (fresh mint), partial #D9A441 (muted amber), fail #F07088 (soft coral), timeout #3E4843 (dim gray).
- Main text: #E4EDE8. Secondary text: #7E8C85. Counts printed inside the mint segment: #08331F.

Typography (Google Fonts):
- Geist for the title (600, 27px, -0.4px letter-spacing, stating the finding with the best and worst pass rates) and the subtitle (15px, #7E8C85, including the overall pass rate).
- Geist Mono for everything else: the run metadata line (12px, #7E8C85, starting with a mint "$" prompt), legend (13px), category labels (14px) with sample counts in parentheses (11.5px, #7E8C85, 8px after the name), tick labels (11.5px), pass counts inside bars (500, 12px), the pass-rate column (600, 25px, mint, -0.5px letter-spacing) and the source line (11.5px).

Layout:
- Metadata line at y 36 ("$ run 2026-09-27T04:12Z  model=...  temperature=0.2  seed=1337  max_tokens=2048  n=1,540"), title at y 76, subtitle at y 102, all left at x 40.
- Legend row at y 124 to 136: 12px squares with 3px radius and lowercase outcome names. A small "PASS" column header (11px, 1.5px letter-spacing) right-aligned at x 904 on the same row.
- One row per category, 40px pitch, sorted by pass rate descending. Labels left at x 40; bars from x 222 to 806; pass rate right-aligned at x 904 with one decimal and no % sign.
- A #18231E rule under the axis labels and a one-line monospace footnote defining partial and timeout, starting with "Source: ...".

Axes and grid:
- Vertical 1px #18231E gridlines at 0, 25, 50, 75 and 100% behind the bars, labeled below the last row. No y-axis line.

Marks:
- Bar chart: 100% stacked horizontal bars 22px tall, clipped to a fully rounded pill (11px radius) so only the outer ends are round. Separate segments with 1.5px background-colored hairline gaps. Print the raw pass count in the mint segment, 12px from its left end, when it fits.
- Line chart: one 2px line per outcome share in the outcome colors (timeout dashed 4 on 3 off, since it is gray), with 3px dots, the pass line thicker at 2.5px, and the final pass rate printed at the right end in 25px mint Geist Mono.

Avoid: gradients, glows, 3D, sans-serif numbers, percentage signs on every segment, a colored background panel behind the bars, and changing the outcome order between rows.

When you're done, render the chart and check that every bar sums to 100%, the pass-rate column matches pass divided by the category's sample count, the rows are sorted, and the hairline gaps are visible between every pair of segments.
