Chart Prompts

1,337 ways to dress a line or bar chart, 669 light and 668 dark. Open any chart to see it full size and copy a prompt that gives your own chart the same look.

Every chart uses illustrative data. The prompts work with any coding agent and any charting library; they describe colors, type, spacing and marks precisely enough to reproduce each look.

← More from Emergent Mind Labs

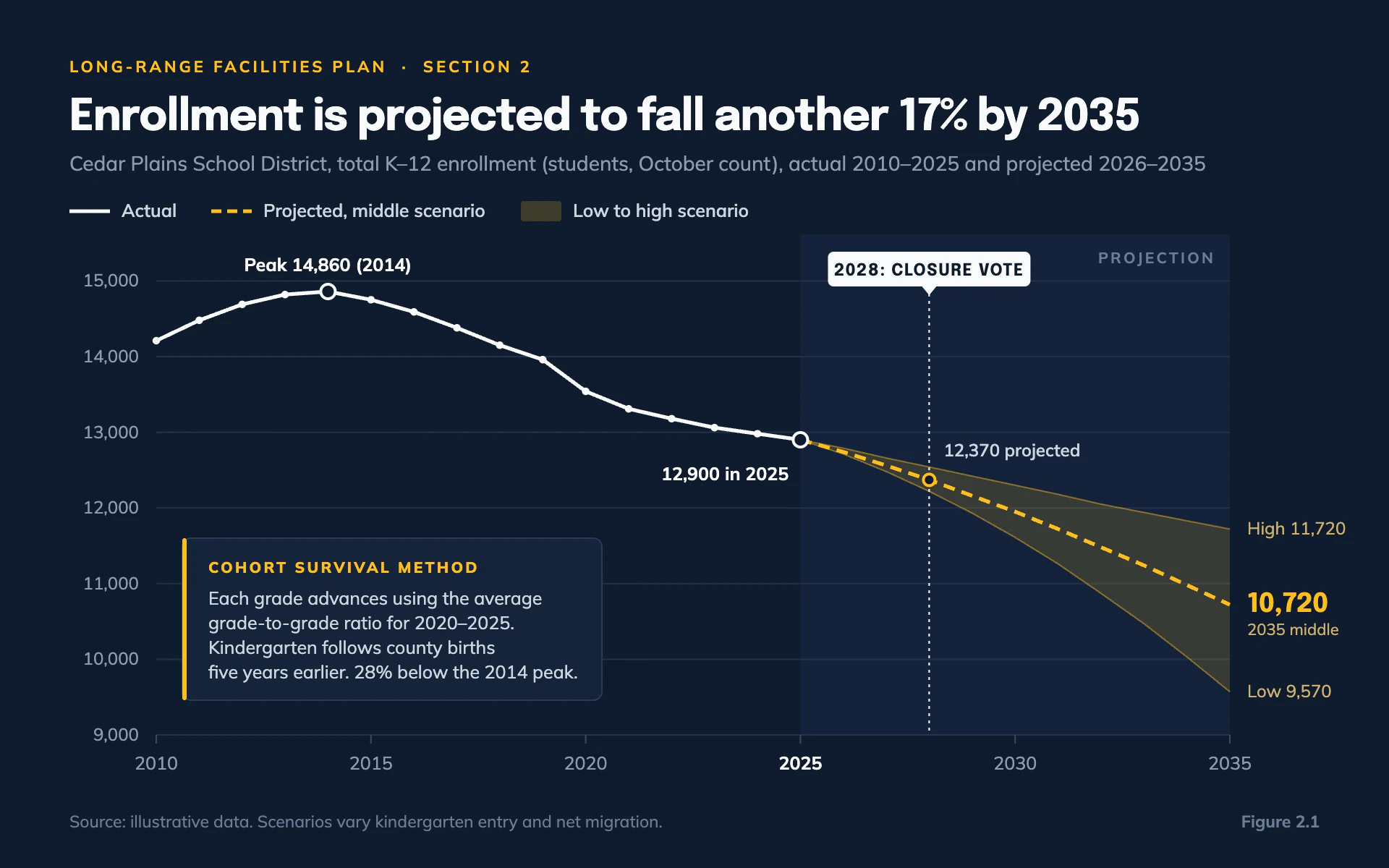

Enrollment Projection line chart, dark theme: A navy planning figure with a gold projection fan and a decision-year tag.

Enrollment Projection

DarkLine

A navy planning figure with a gold projection fan and a decision-year tag.

  • Deep navy#0F1B2D
  • Projection gold#FBBF24
  • Actual white#F8FAFC
  • Note panel#15243A
  • Slate label#8C9AB0

Prompt for your coding agent

Paste it with your chart's code. It restyles your data to match this chart.

Restyle my chart in the "Enrollment Projection" style described below. Keep my data, chart type, title meaning and units; change only the presentation. Use the charting library this project already uses (plain SVG if there is none). If the library can't express a detail, draw it in a custom layer instead of dropping it. Measurements assume a 960 x 600 chart; scale them proportionally.

Mood: a figure from a school district's long-range facilities plan, presented to a board. Deep navy, calm and deliberate: what happened in solid white, what may happen in dashed gold with an honest uncertainty fan, and the decision point called out.

Colors (use these exact values):
- Background: #0F1B2D (deep navy). The projection period gets a slightly lighter #13223A panel behind it.
- Actual data: #F8FAFC (near white). Projection and all projection labels: #FBBF24 (gold); secondary projection labels #C9B27A.
- Scenario fan: #FBBF24 at 16% opacity, edged by 1px #FBBF24 lines at 45% opacity.
- Secondary text and axis labels: #8C9AB0. Body text on dark: #CBD5E1. Footnotes: #6B7C96. Gridlines: #22314A. Ticks: #3A4A66.
- Note panel: #15243A fill with a 1px #2A3B57 stroke and a 3px gold left edge.

Typography (Google Fonts):
- Epilogue 700 for the title (30px, -0.6px letter-spacing, #F8FAFC, stating the projected change as a computed percentage), the decision tag (11.5px, 0.8px letter-spacing, navy on white) and the end value (18px gold).
- Mulish for everything else: eyebrow 11px 700 uppercase with 2px letter-spacing in gold; subtitle 14px 400 #8C9AB0 naming place, measure, unit and both periods; legend 12.5px 600 #CBD5E1; axis labels 12 to 12.5px (the handoff year bold white); annotations 12 to 12.5px 600 to 700; note heading 10.5px 800 uppercase with 1.6px letter-spacing in gold; note body 12.5px #CBD5E1; source 11.5px.

Layout:
- 48px margins. Eyebrow at y 50, title at y 90, subtitle at y 118, inline legend at y 146. Plot from x 108 to 850 and y 168 to 508, with right-edge labels past x 862. Footer at y 572 with the source left and "Figure 2.1" right.
- A 290 x 112 method note panel (6px radius) placed in an empty corner of the plot, explaining the projection method in four short lines and ending with a computed comparison to the peak.

Axes and grid:
- Horizontal 1px #22314A gridlines with thousands-separated labels right-aligned 12px left of the plot. No axis lines, no vertical gridlines; 6px tick marks under the x axis every 5 years.
- A small uppercase "PROJECTION" label (10.5px 700, 1.6px letter-spacing, #6B7C96) right-aligned in the top corner of the projection panel.

Marks:
- Line chart: actuals as a 2.6px solid #F8FAFC line with r 2.6 white dots at each year. The projection as a 2.6px #FBBF24 dashed line (8 on, 5 off) starting exactly at the last actual point, over the translucent low-to-high fan. Hollow r 5 markers (navy fill, 2px white stroke) mark the peak and the last actual with labels; a hollow gold r 4 marker marks the decision-year value.
- Decision year: a 1.2px #E2E8F0 dotted vertical line (2 on, 3 off) topped by a white 140 x 24 tag with 4px radius and a small downward pointer, reading "2028: CLOSURE VOTE".
- End labels at the right edge: the middle value in 18px Epilogue gold with "2035 middle" beneath, and the high and low values in 12px #C9B27A aligned to the fan edges.
- Bar chart: square-topped #F8FAFC bars for actual years and gold-outlined (1.5px #FBBF24) bars filled #FBBF24 at 16% for projected years, with thin gold whiskers for the low and high scenarios, the same projection panel, decision tag and note panel.

Avoid: glows, neon, gradients on lines, a legend box, crowding the fan with labels, starting the projection anywhere but the last actual point, and bright colors other than gold.

When you're done, render the chart and check that the title percentage equals 1 minus the final middle value over the last actual, the note's peak comparison is right, the fan widens over time, and the decision tag does not cover the PROJECTION label.
