Chart Prompts

Restyle my chart in the "Dye Lots" style described below. Keep my data, chart type, title meaning and units; change only the presentation. Use the charting library this project already uses (plain SVG if there is none). If the library can't express a detail, draw it in a custom layer instead of dropping it. Measurements assume a 960 x 600 chart; scale them proportionally.

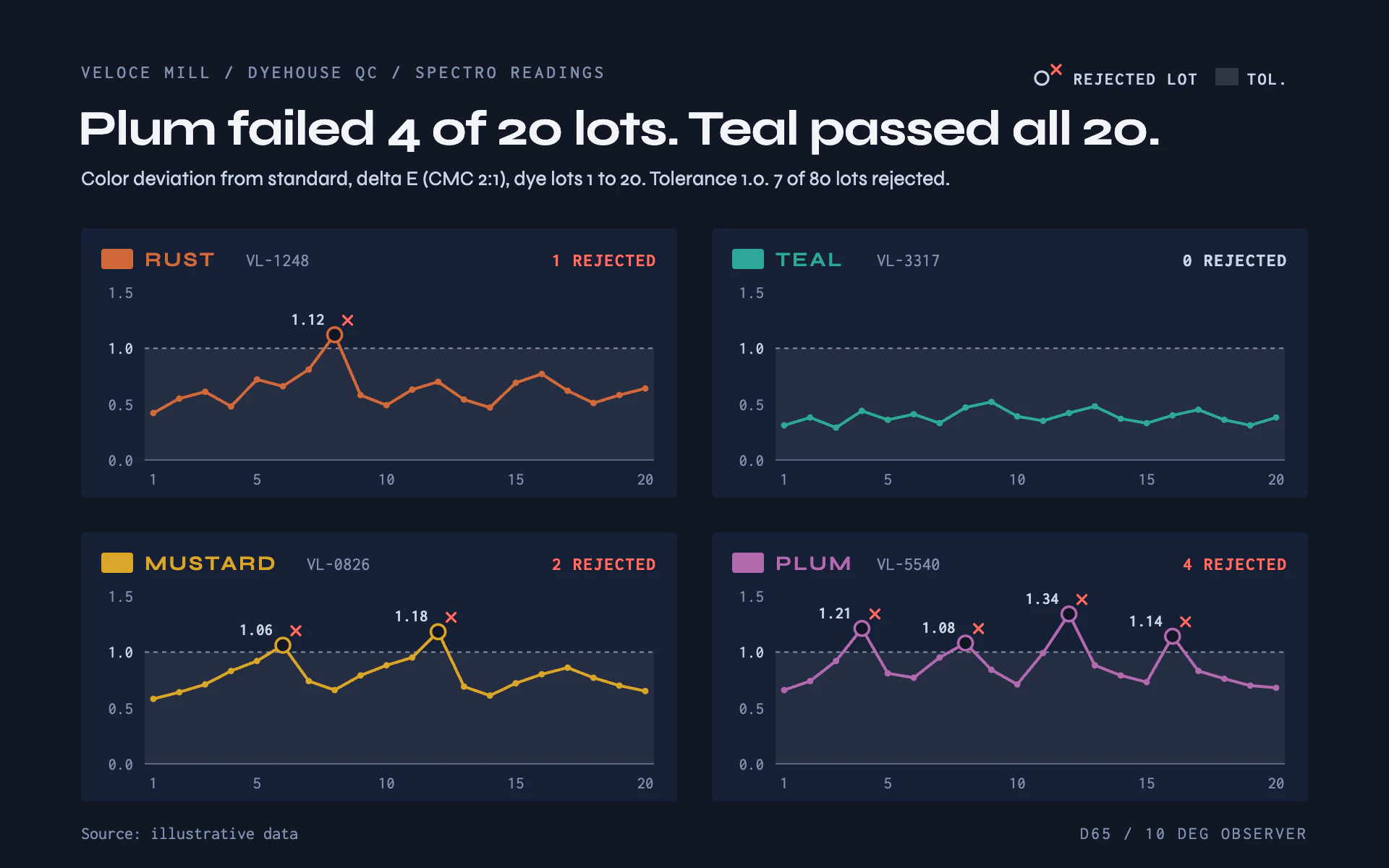

Mood: a dyehouse quality-control screen in deep ink navy. Technical and calm, where each series is drawn in the very shade it measures, a pale tolerance band shows what passes, and failures are marked like a technician's cross on the chart.

Colors (use these exact values):
- Page: #111726 (deep ink navy). Panels: #172036 with 3px corner radius.
- Series, one per shade: #D0693A (rust), #2FA89A (teal), #D9A62A (mustard), #B06AAE (plum).
- Tolerance band: #DDE6F5 at 7% opacity with a 1px #DDE6F5 dashed top edge (3 on, 3 off, 55% opacity).
- Rejection cross and reject counts: #FF6B5E.
- Text: title #F2F4F8, subtitle and readings #C9D3E6, secondary #8290AB.

Typography (Google Fonts):
- Syne 700 for the title (34px, -0.6px letter-spacing, stating the finding) and panel names (14px, 1.4px letter-spacing, uppercase, in the series color); Syne 400 14px for the subtitle.
- Inconsolata for every reading and label: header line 12.5px 500 uppercase with 2px letter-spacing; shade codes 12.5px #8290AB; reject counts 12.5px 700 uppercase; axis labels 11.5px; reading labels on rejected points 11.5px 600 #C9D3E6; footer 12px.

Layout:
- 56px side margins; header line, title, subtitle at the top, with a small marker key at top right (a hollow ring with a red cross "REJECTED LOT", a pale swatch "TOL.").
- Small multiples: one panel per series in a 2 x 2 grid (412 x 186 px panels, 24px gutters). Each panel header has a 22 x 14 px color chip, the shade name, a code, and the reject count right-aligned (red when above zero, pale when zero).
- Footer: "Source: ..." left and a measurement note right, both Inconsolata.

Axes and grid:
- Shared y scale in every panel (0.0 to 1.5 here), labels at left in #8290AB with the tolerance value in #C9D3E6. No gridlines apart from the tolerance band edge and a 1px baseline at 60% opacity. X labels at 1, 5, 10, 15, 20.

Marks:
- Line chart: a 2px line in the shade color with straight segments and small 2.2px dots for passing readings. A reading outside tolerance becomes a hollow 5px ring (panel-colored fill, 1.8px stroke in the shade) with a small 6px red cross just above-right, and its value printed to the upper left.
- Bar chart: one slim bar per lot in the shade color (square corners) inside each panel over the tolerance band; bars beyond tolerance become hollow outlines with the red cross above them and their value printed.

Avoid: putting all series on one crowded chart, neon glows, gradients, and legends that repeat panel names.

When you're done, render the chart and check that every panel uses the same y scale, the reject counts in headers and title match the points outside tolerance, the crosses do not collide with value labels, and the panel names never overlap their codes.
