Chart Prompts

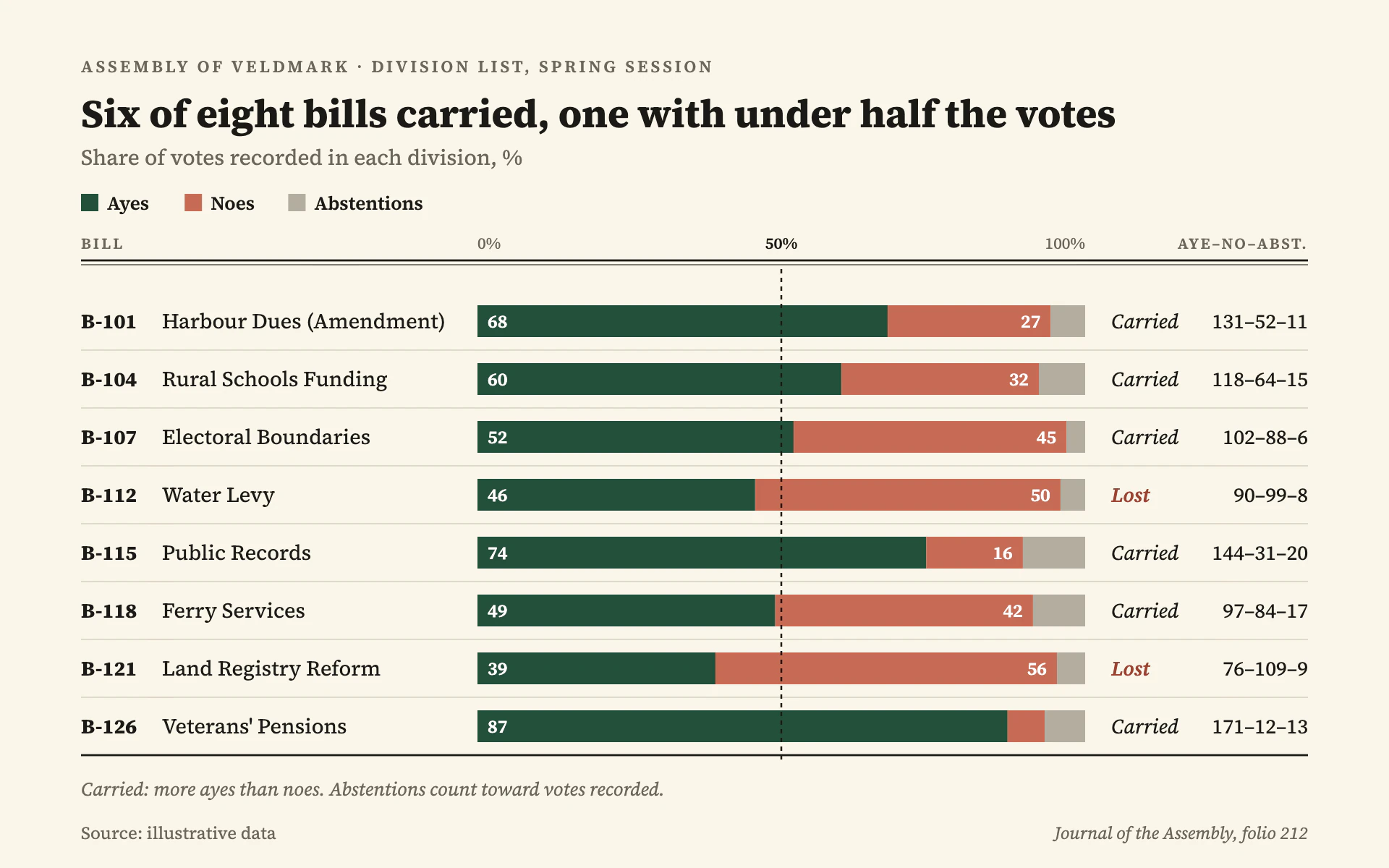

Restyle my chart in the "Division Record" style described below. Keep my data, chart type, title meaning and units; change only the presentation. Use the charting library this project already uses (plain SVG if there is none). If the library can't express a detail, draw it in a custom layer instead of dropping it. Measurements assume a 960 x 600 chart; scale them proportionally.

Mood: the division list in a parliamentary journal. An ivory ledger with fine black rules, a serif face, and results you can audit line by line.

Colors (use these exact values):
- Page: #FAF6EA (ivory). Ink: #1B1A17. Secondary text: #6B665C. Row hairlines: #CFC7B4.
- First category (ayes, yes, for): #23503A deep green. Second (noes, no, against): #C66B55 muted red. Third (abstentions, other): #B3ADA0 warm gray. Negative results in text use #9A4130.

Typography (Google Fonts): Source Serif 4 throughout (400, 600, 700, italics).
- Eyebrow: 11.5px 600 uppercase, 2px letter-spacing, #6B665C. Title: 27px 700 stating the finding. Subtitle: 15px #6B665C naming the measure.
- Column headers: 10.5px 600 uppercase, 1.2 to 1.6px letter-spacing, #6B665C.
- Row labels: bill number 14px 700, short title 14.5px 400. Segment percentages 12.5px 600 in white. Results 14px italic; tallies 14px with tabular figures.

Layout:
- 56px side margins. Eyebrow, title, subtitle, then a small legend of 12px squares with 13px 600 labels.
- A ledger table: left column for the ID (x = 56) and name (x = 112); bars from x = 330, 420px wide; a result column at x = 768; tallies right-aligned at x = 904.
- The table header sits between a 1.4px ink rule and a 0.6px rule 3px below it (a double rule). Rows are 40px apart with 0.7px #CFC7B4 hairlines between them, closed by a 1.4px ink rule.
- Italic 13px note under the table defining the rule for the result, then source on the left and an italic folio on the right.

Axes and grid:
- Only three scale labels above the bars: 0%, 50% (600, ink) and 100%.
- A 1.2px ink 50 percent line dashed 3 on, 3 off, running from the header through every row.

Marks:
- Bar chart: horizontal 100% stacked bars, 22px tall, square corners, no gaps between segments, in the order green, red, gray. Percentages inside: the first segment's label 7px from its left edge, the second's 7px from its right edge; skip labels on segments narrower than 34px.
- Line chart: the share for the first category over time as a 2.5px #23503A line with 4px dots, the second category as a 2.5px #C66B55 line with hollow 4px dots, over faint #CFC7B4 horizontal rules at 25% steps, the 50% rule in 1.2px dashed ink, and direct labels at the line ends.
- Each row ends with its outcome in words ("Carried" in ink, "Lost" in #9A4130 600) and its raw counts as "131–52–11".

Avoid: rounded bars, gradients, shadows, bright party colors, gridlines inside the bars, and a chart without the raw counts.

When you're done, render the chart and check that each row's segments sum to 100%, the result words follow from the counts, the 50 percent line is exactly centered, and nothing in the result and tally columns touches.
