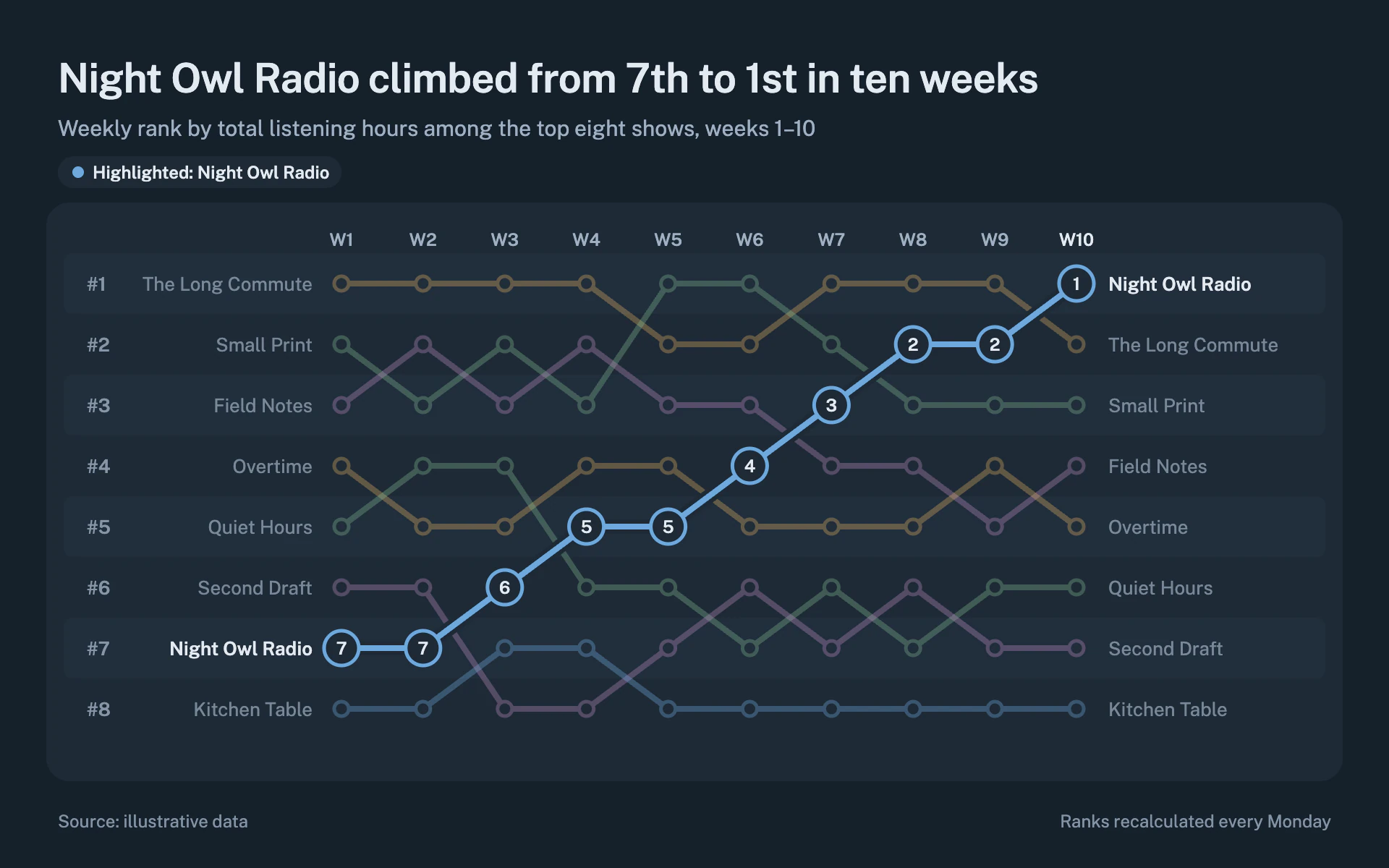

Dimmed Slate line chart, dark theme: A blue-slate dim mode bump chart with rank banding and one highlighted series.

Dimmed Slate

DarkLine

A blue-slate dim mode bump chart with rank banding and one highlighted series.

  • Slate#15202B
  • Raised surface#1E2A36
  • Sky#6FA8DC
  • Sage#7FB58F
  • Sand#DDAE62
  • Mauve#B98AC0

Prompt for your coding agent

Paste it with your chart's code. It restyles your data to match this chart.

Restyle my chart in the "Dimmed Slate" style described below. Keep my data, chart type, title meaning and units; change only the presentation. Use the charting library this project already uses (plain SVG if there is none). If the library can't express a detail, draw it in a custom layer instead of dropping it. Measurements assume a 960 x 600 chart; scale them proportionally.

Mood: an app's "dim" dark mode rather than pitch black: desaturated blue slate, one raised card, muted pastel series, and focus on a single story while everything else recedes.

Colors (use these exact values):
- Background: #15202B (slate). Raised card: #1E2A36, 16px radius, no border or shadow.
- Row banding inside the card: #233140 at 55% opacity on alternate rows, 6px radius, inset 12px from the card edge.
- Series colors at about 70% saturation: #6FA8DC sky, #7FB58F sage, #DDAE62 sand, #B98AC0 mauve. Reuse them in that order when there are more than four series.
- Text: #E3EAF1 for title and highlighted labels; #9FB0C2 soft grey-blue for everything else.

Typography (Google Fonts):
- Public Sans only, regular and semibold: title 28px 600, -0.3px letter-spacing; subtitle 15px 400; series labels 13px (600 #E3EAF1 for the highlight, 400 #9FB0C2 at 70% opacity otherwise); rank and period labels 12 to 13px 600; footer 12px.

Layout:
- 40px outer margins. Title, subtitle, then a small highlight chip (#1E2A36 pill, 11px radius, 4px sky dot, "Highlighted: ..." 12px 600).
- The chart sits in the raised card (x 32, y 140, 896 x 400). Period labels across the top of the card, rank labels ("#1" to "#8") at the card's left edge, series names at both ends of the lines.
- Footer outside the card: source at left and a short method note at right.

Axes and grid:
- No axis lines or gridlines: the alternating row bands are the grid. The latest period label is set in #E3EAF1.

Marks:
- Line chart (bump): 4px straight lines with round joins between rank positions. Every series except the highlight sits at 35% opacity with small hollow markers (r 5, 2.5px stroke, card-colored fill). The highlighted series draws last, over a 10px card-colored halo so it cuts through crossings, with hollow r 12 markers (2.5px stroke) holding the rank number in 12px 600 #E3EAF1.
- Bar chart: horizontal bars 18px tall with 4px radius on the row bands, all series at 35% opacity except the highlighted one at full strength with its value label in 13px 600 #E3EAF1.

Avoid: pure black, pure white, saturated neon colors, drop shadows, visible borders, a separate legend (label lines directly), more than one highlighted series.

When you're done, render the chart and check that ranks form a complete permutation in every period, the highlighted series is the only one at full opacity, end labels do not collide, and the title's claim matches the first and last ranks.
