Chart Prompts

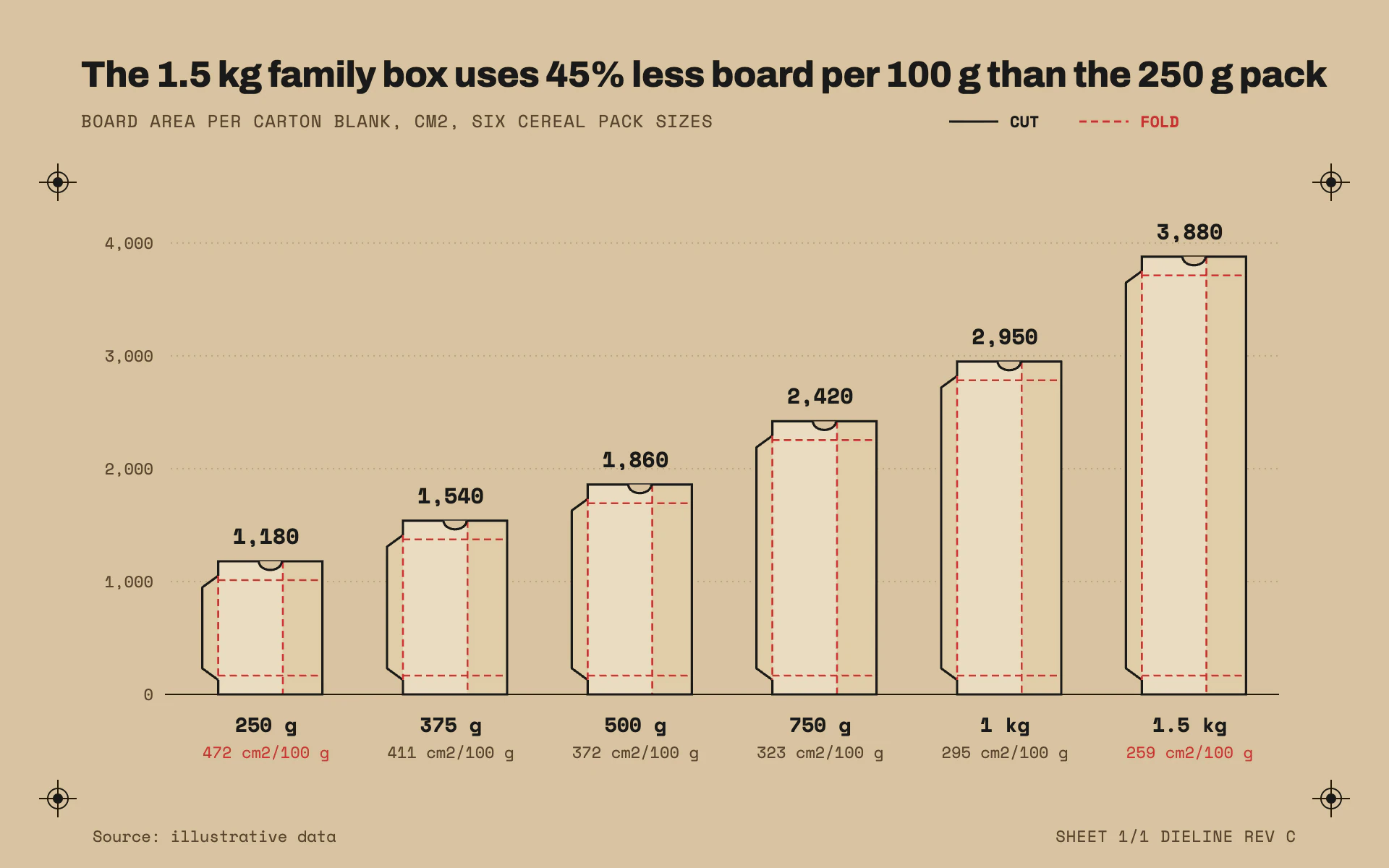

Restyle my chart in the "Die Line" style described below. Keep my data, chart type, title meaning and units; change only the presentation. Use the charting library this project already uses (plain SVG if there is none). If the library can't express a detail, draw it in a custom layer instead of dropping it. Measurements assume a 960 x 600 chart; scale them proportionally.

Mood: a packaging engineer's dieline sheet printed on kraft board. Technical, tactile and precise: solid black cut lines, dashed red folds, monospaced callouts and printer's registration marks.

Colors (use these exact values):
- Background: #D8C3A0 (kraft board) for the whole canvas.
- Cut lines, title and primary labels: #1A1A1A. Fold lines and highlighted notes: #C62D2D.
- Panel fills: #EADCC0 (front panel) and #E0CDA8 (side panel and glue flap). Secondary text: #5A4630. Faint gridlines: #BFA67C.

Typography (Google Fonts):
- Archivo 800 for the title, 25px, #1A1A1A, -0.3px letter-spacing, sentence case, stating the finding.
- Space Mono for everything else: subtitle 12px 400 uppercase #5A4630 with 0.6px letter-spacing; value labels 15px 700 #1A1A1A; category labels 14px 700; secondary per-category notes 11px 400 #5A4630 (#C62D2D for the two extremes being compared); axis labels 11px; key labels 11px 700; source and sheet folio 11px.

Layout:
- 56px margins. Title baseline at 60, subtitle at 88. A small key on the subtitle line at the right: a 34px solid 1.6px black line with "CUT", then a 34px dashed red line with "FOLD" in red.
- Four registration marks at the corners of the chart area (about x 40 and 920, y 126 and 552): a 7px radius circle, a 3px filled center dot and a 26px crosshair, all 1px #1A1A1A.
- Plot from x 118 to 884, baseline at y 480. Footer at y 582: "Source: ..." left, "SHEET 1/1   DIELINE REV C" right.

Axes and grid:
- Dotted horizontal gridlines, 1px #BFA67C, dash 1 3. Y labels in Space Mono 11px #5A4630 right-aligned 12px left of the plot with thousands separators.
- A 1px #1A1A1A baseline. Category labels centered 26px below it, with a second line of notes 18px lower.

Marks:
- Bar chart: each bar is a flat carton blank about 72px wide. The left 62% is the front panel (#EADCC0), the right 38% the side panel (#E0CDA8). Cut outline 1.6px #1A1A1A around the top, right and bottom. On the left, a tapered glue flap 11px wide (#E0CDA8, cut outline) inset 10px from top and bottom, joined by a dashed fold. Dashed red fold lines (1.3px #C62D2D, dash 5 3) run across the bar 13px below the top and 13px above the base, and vertically at the panel split. A thumb notch (half-ellipse 16 x 6 px cut into the top edge) sits at the bar's center. Bars start at zero; the value label sits 12px above each bar.
- Line chart: draw the line as a 1.6px solid #1A1A1A cut line with straight segments, a dashed red 1.3px fold line along the target or average, and each point as a small square 7px die-cut hole (kraft fill, black outline). Shade the area under the line in #EADCC0 with the 13px dashed red fold offsets along the top edge.

Labels and annotation:
- Use two-line category labels: the category in bold mono, a derived efficiency figure below it (e.g. "472 cm2/100 g"), with the compared extremes in red.
- Write units in plain ASCII (cm2), not superscripts.

Avoid: gradients, shadows, rounded corners, color fills beyond kraft tones, more than one accent color, and sans-serif labels.

When you're done, render the chart and check that every bar still reads from a zero baseline, the fold lines sit inside each bar, registration marks sit clear of text, and the title's percentage matches the data.
