Chart Prompts

1,337 ways to dress a line or bar chart, 669 light and 668 dark. Open any chart to see it full size and copy a prompt that gives your own chart the same look.

Every chart uses illustrative data. The prompts work with any coding agent and any charting library; they describe colors, type, spacing and marks precisely enough to reproduce each look.

← More from Emergent Mind Labs

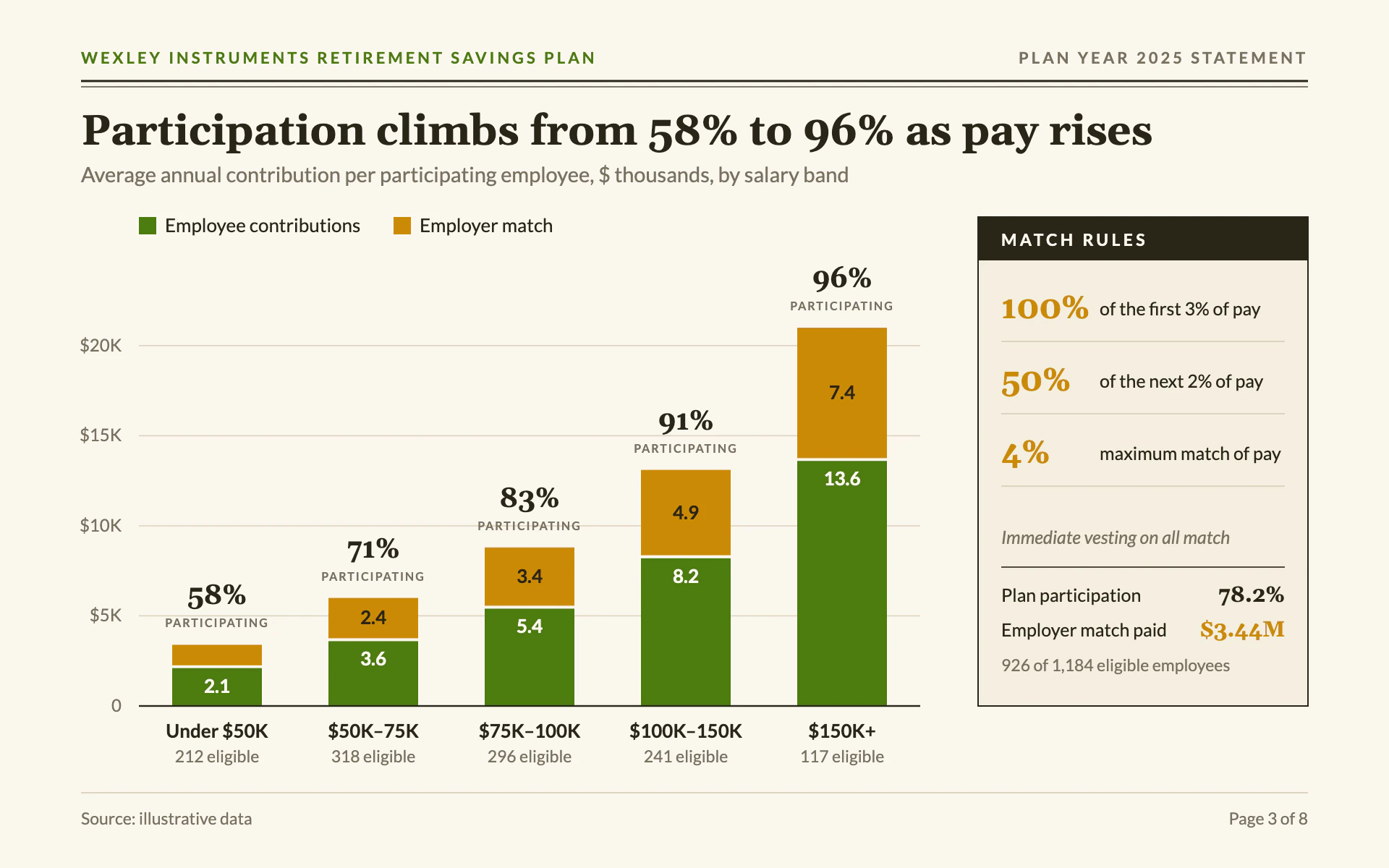

Contribution Match bar chart, light theme: Cream plan statement with sage and gold stacks and a boxed match-rules sidebar.

Contribution Match

LightBar

Cream plan statement with sage and gold stacks and a boxed match-rules sidebar.

  • Cream#FBF7EE
  • Deep sage#4D7C0F
  • Gold#CA8A04
  • Ink#2A2618
  • Sidebar#F4EEDF

Prompt for your coding agent

Paste it with your chart's code. It restyles your data to match this chart.

Restyle my chart in the "Contribution Match" style described below. Keep my data, chart type, title meaning and units; change only the presentation. Use the charting library this project already uses (plain SVG if there is none). If the library can't express a detail, draw it in a custom layer instead of dropping it. Measurements assume a 960 x 600 chart; scale them proportionally.

Mood: a page from a printed retirement plan statement. Cream paper, a bookish serif, double rules, and a boxed sidebar that reads like the fine print, all calm and trustworthy.

Colors (use these exact values):
- Page: #FBF7EE (cream). Ink #2A2618 for text, rules and the axis; secondary text #7A7261; gridlines and light rules #DDD3BD; sidebar fill #F4EEDF.
- Base segment (employee money, or the first series): #4D7C0F (deep sage).
- Top segment (employer match, or the second series): #CA8A04 (gold), also used for the big numerals in the sidebar.

Typography (Google Fonts):
- Gelasio: title 700 29px #2A2618 stating the finding; the value printed above each column 700 19px; sidebar numerals 700 22px gold and totals 700 15px.
- Lato for everything else: header eyebrows 700 11px uppercase with 2px letter-spacing (left in sage, right in #7A7261); subtitle 400 14.5px #7A7261; legend 13px; in-segment values 700 13px (cream on sage, ink on gold); the small-caps label under each column value ("participating") 700 11px, 1px letter-spacing, font-variant-caps all-small-caps, #7A7261; category labels 700 13px ink with an 11.5px #7A7261 detail line below; the sidebar note italic 12.5px.

Layout:
- 56px margins. A statement header: plan name eyebrow left, statement period right, then a double rule (1.5px ink at y 56, 0.6px ink at y 60). Title at y 100, subtitle at y 126.
- Chart on the left (plot x 96 to 636, baseline y 488), legend of square swatches (12px) above it.
- A boxed summary on the right (x 676, y 150, 228 x 338): 1px ink border, #F4EEDF fill, a 30px ink header band reading "MATCH RULES" in cream Lato 700 11.5px with 2.2px letter-spacing. Inside: each rule as a gold Gelasio numeral with a short Lato line beside it, separated by 1px #DDD3BD rules; an italic note; a 0.8px ink rule; then key totals as label-left, figure-right rows.
- A 1px #DDD3BD footer rule at y 548 with the source on the left and a page folio ("Page 3 of 8") on the right.

Axes and grid:
- 0.8px #DDD3BD gridlines, y labels in Lato 12px #7A7261 formatted like "$10K", right-aligned 12px left of the plot. A 1.2px ink baseline; no y-axis line.

Marks:
- Bar chart: square-cornered stacked columns 62px wide, the base segment in #4D7C0F and the top segment in #CA8A04, separated by a 2px cream gap. Values printed inside segments when they are at least 22px tall. Above each column: the headline percentage in Gelasio 700 19px, with the small-caps "participating" label between it and the column.
- Line chart: two 2.5px lines, #4D7C0F and #CA8A04 (the gold one dashed 6 on, 3 off), with 4px square markers; light #CA8A04 fill at 15% between them to show the match on top of the employee amount; the percentage label above each point on the upper line in the same Gelasio plus small-caps pairing.

Avoid: rounded corners, gradients, shadows, bright greens, sans-serif titles, and letting the sidebar box crowd the chart (keep a 40px gutter).

When you're done, render the chart and check that the sidebar totals are computed from the data, segments are distinguishable in grayscale (the cream gap and in-segment labels carry it), and every column label and percentage is centered on its column.
