Chart Prompts

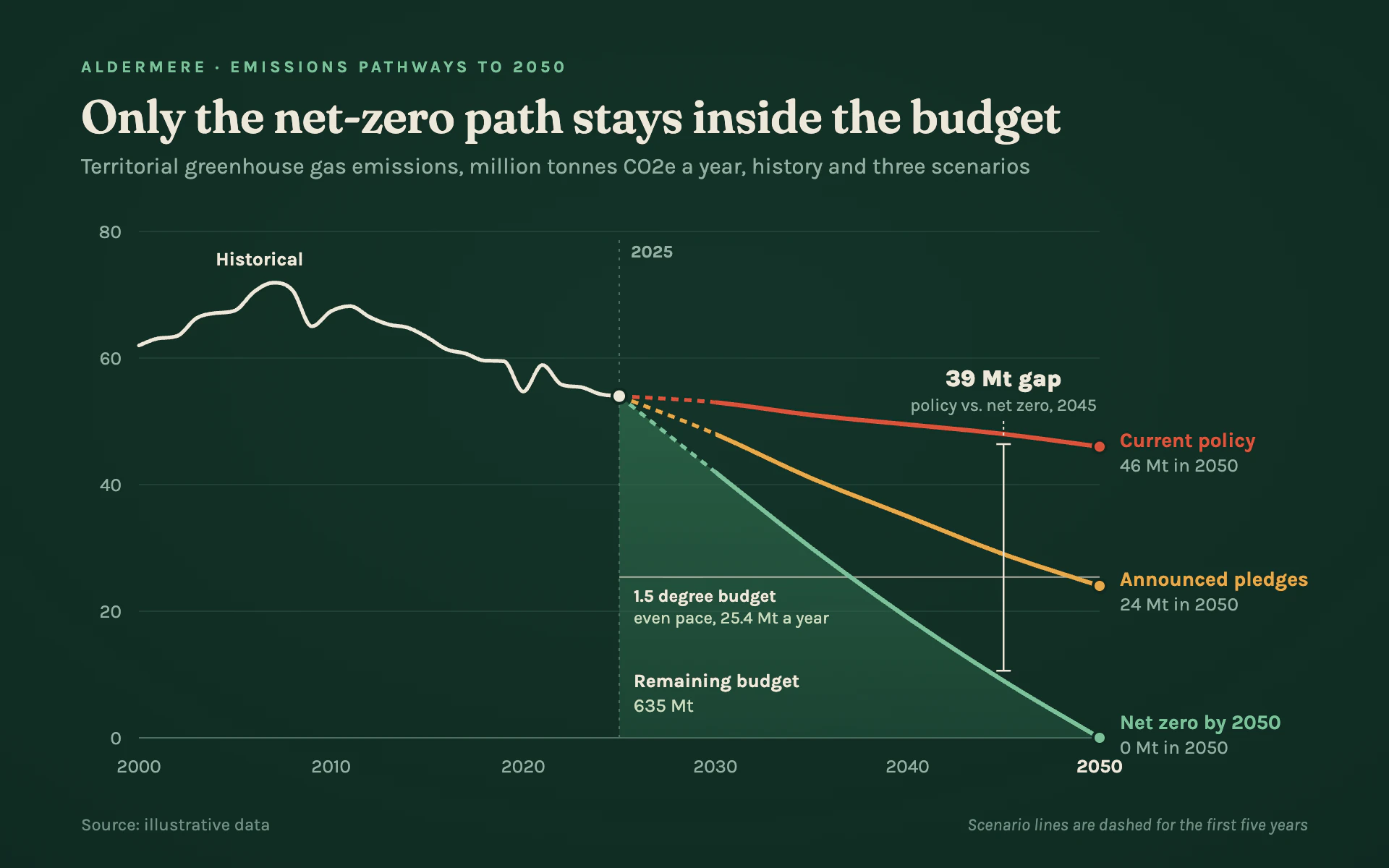

Restyle my chart in the "Carbon Budget" style described below. Keep my data, chart type, title meaning and units; change only the presentation. Use the charting library this project already uses (plain SVG if there is none). If the library can't express a detail, draw it in a custom layer instead of dropping it. Measurements assume a 960 x 600 chart; scale them proportionally.

Mood: a climate policy briefing in dark mode. Deep evergreen, a pale historical line that forks into scenarios, and a quiet green area showing what is left to spend.

Colors (use these exact values):
- Page: #0F2A22 (deep evergreen), with a soft radial lift to #143429 at the upper center.
- History, the fork point and key annotations: #EDE8DA (bone).
- Scenario colors, worst to best: #D9533B (ember), #E7A94B (amber), #7CC19A (net-zero green). Use the same order for any other ranked series.
- Remaining budget area: #2F6B4D, as a vertical gradient from 75% to 35% opacity.
- Secondary text: #93AFA2. Gridlines: #1F4035. Baseline and marker lines: #4E6E62. Source: #6F8F82. Soft green for secondary labels in the budget area: #C9DCC0.

Typography (Google Fonts):
- Fraunces 600 for the title only: 32px, -0.3px letter-spacing, bone.
- Karla for everything else: eyebrow 11.5px 700 uppercase with 2.4px letter-spacing in the net-zero green; subtitle 15.5px 400 in #93AFA2; axis labels 13px; series end labels 14px 700 in the series color with a second line 13px in #93AFA2 giving the end value; annotations 12px (bold first line, regular second line); gap callout 16px 800 bone; source and footnote 12px (footnote italic).

Layout:
- 56px side margins. Eyebrow at y 50, title at 92, subtitle at 120.
- Plot from x 96 to 760, y 160 to 510, leaving a 180px right gutter for end labels set 14px right of the last point.
- Source bottom left and a short italic method footnote bottom right at y 574.

Axes and grid:
- 1px #1F4035 horizontal gridlines at round values, labels right-aligned 12px left of the plot. A 1px #4E6E62 baseline at zero. Decade labels under the axis, the final year in 700 bone.
- A 1px #4E6E62 dotted vertical "today" marker (2 on, 4 off) at the fork year, labeled at its top.

Marks:
- Line chart: history as a 2.6px smooth bone line with round joins, labeled directly. At the fork year a bone dot (r 5, 2px evergreen ring). Each scenario is a smooth line from the fork: dashed (2.6px, 5 on, 4 off) for the first five years, then solid 3px with round caps, ending in a dot (r 4.5) in its color with an evergreen ring.
- Budget: fill the area under the lowest (net-zero) path from the fork to the end with the budget gradient, and label it inside ("Remaining budget" plus the total, computed as the area under that path). Draw a thin 1px bone line at 70% opacity across the scenario years at the even-pace level (budget divided by years) and label it "1.5 degree budget" with the pace underneath, placed inside the area so no line crosses the text.
- Gap bracket: a vertical 1.3px bone bracket with 10px end ticks between the worst and best scenarios at one year near the end, with a short dotted leader up to a callout in the empty space above ("39 Mt gap" plus a 12px explanation).
- Bar chart: history as bone bars (4px top radius, 60% of the band), and for scenario years a group of three slimmer bars per period in ember, amber and net-zero green, with the budget shown as a #2F6B4D band behind them; the first scenario period drawn as outlined dashed bars instead of solid.

Avoid: neon, glows, pure black, a boxed legend (label line ends instead), red and green as the only difference between series (keep amber between them and use direct labels), and gridlines brighter than #1F4035.

When you're done, render the chart and check that the budget total and even-pace value are computed from the net-zero path, the gap number matches the two scenario values at that year, and no label crosses a line.
