Chart Prompts

Restyle my chart in the "Bullet Scorecard" style described below. Keep my data, chart type, title meaning and units; change only the presentation. Use the charting library this project already uses (plain SVG if there is none). If the library can't express a detail, draw it in a custom layer instead of dropping it. Measurements assume a 960 x 600 chart; scale them proportionally.

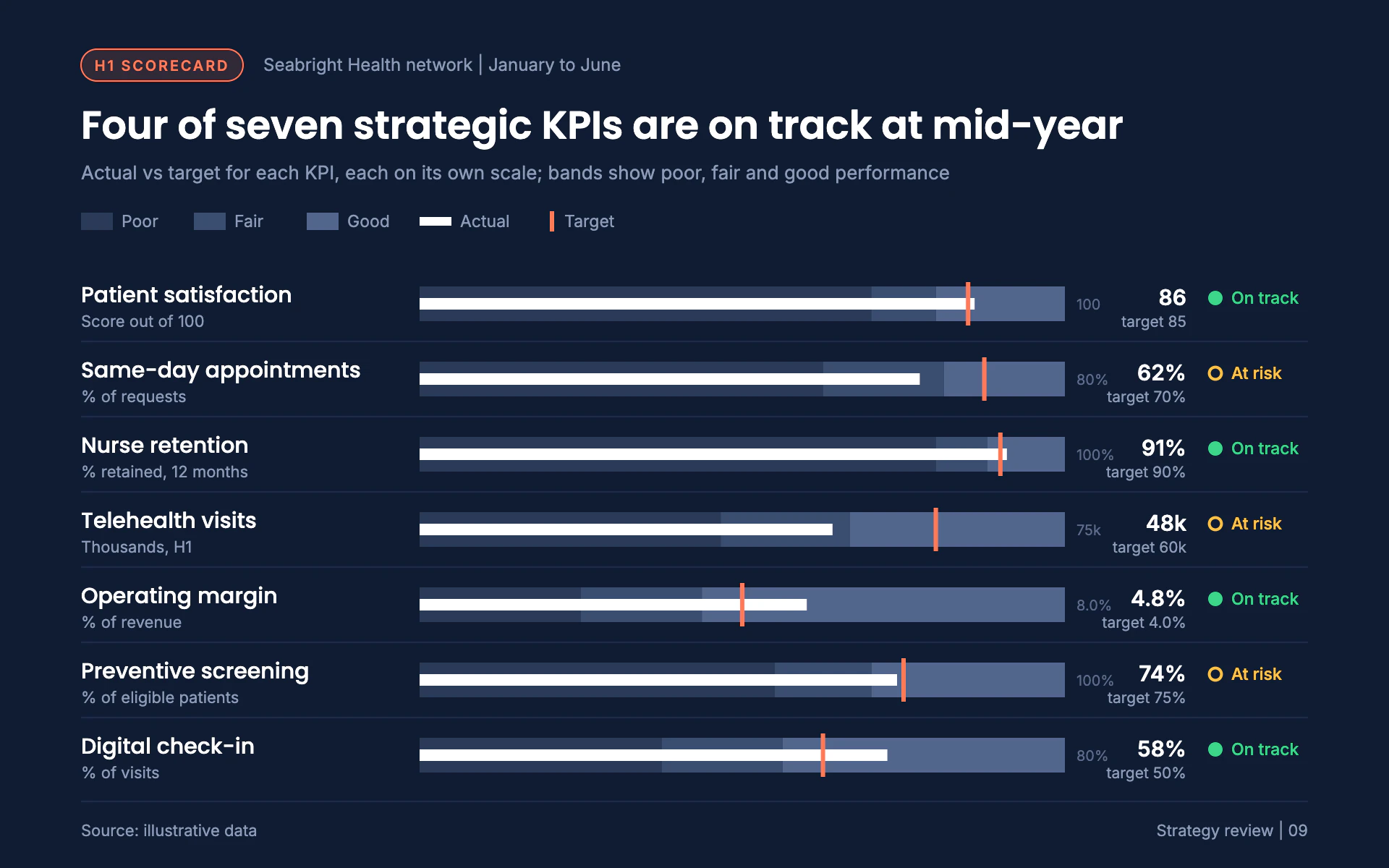

Mood: the strategic scorecard slide in a leadership review. Dark navy, orderly rows of bullet charts, crisp white actuals and warm coral targets, readable at a glance from the back of the room.

Colors (use these exact values):
- Slide: #101C33 (dark navy). Row dividers: #1F2D4A.
- Qualitative bands, from poor to good: #2A3A58, #3A4D70, #52668D.
- Actual bars: #FFFFFF. Target ticks, the scorecard tag and its outline: #FF7A59 (warm coral).
- Status: on track #3DD68C as a filled dot, at risk #FFC24B as a hollow ring (shape differs as well as color), each followed by its word.
- Primary text: #FFFFFF. Secondary text: #8C9BB8. Scale-max labels: #5D6C8C.

Typography (Google Fonts):
- Poppins for the headline (600, 27px, white, sentence case, stating how many KPIs are on track) and KPI names (500, 15px, white).
- Inter for everything small: tag 600 10px uppercase with 1.4px letter-spacing; context line and legend 400 12 and 11.5px #8C9BB8; subtitle 13px #8C9BB8; unit lines 11px #8C9BB8; actual values 600 15px white; target lines 10.5px; status words 500 11.5px in the status color; scale max 10px.

Layout:
- 56px margins. A pill tag ("H1 SCORECARD", 112 x 22 px, fully rounded, coral at 14% fill with a 1px coral stroke) at top left, followed by a context line. Headline baseline 96px, subtitle 124px, then a one-row legend (Poor, Fair, Good swatches, Actual, Target) at 156px.
- One row per KPI, 52px tall, starting at y 184, separated by 1px #1F2D4A rules. Columns: KPI name with a unit line beneath (x 56), bullet from x 290 to 736, scale max just right of the bullet, actual value and "target N" right-aligned at x 820, status dot at x 840 with its word after it.
- Footer at baseline 578: source at the left and "Strategy review | 09" at the right.

Axes and grid:
- Each KPI has its own linear scale from 0 to a round maximum, written as a small label at the right end of the bands. No gridlines, no axis lines, no ticks.

Marks:
- Bar chart: horizontal bullet charts. Three 24px-tall square-cornered bands stacked end to end behind an 8px-tall white actual bar starting at zero, and a 3 x 30 px coral target tick that extends past the bands. Figures for actual and target sit at the right, never inside the bullet.
- Line chart: one small-multiple row per series, each a 2px white line over the same three horizontal bands (shaded as bands of value from poor to good), a 3px coral horizontal target line segment at the right end, the latest point as a 4px white dot, and the same name, value and status columns.

Avoid: rounded bars, gradients, glows, color-coded actual bars (status lives only in the dot and word), gridlines, and a shared axis across KPIs with different units.

When you're done, render the chart and check that the headline count equals the number of on-track rows, every actual and target sits on its own scale correctly, the target ticks are visible against all three bands, and the status column aligns row to row.
