Chart Prompts

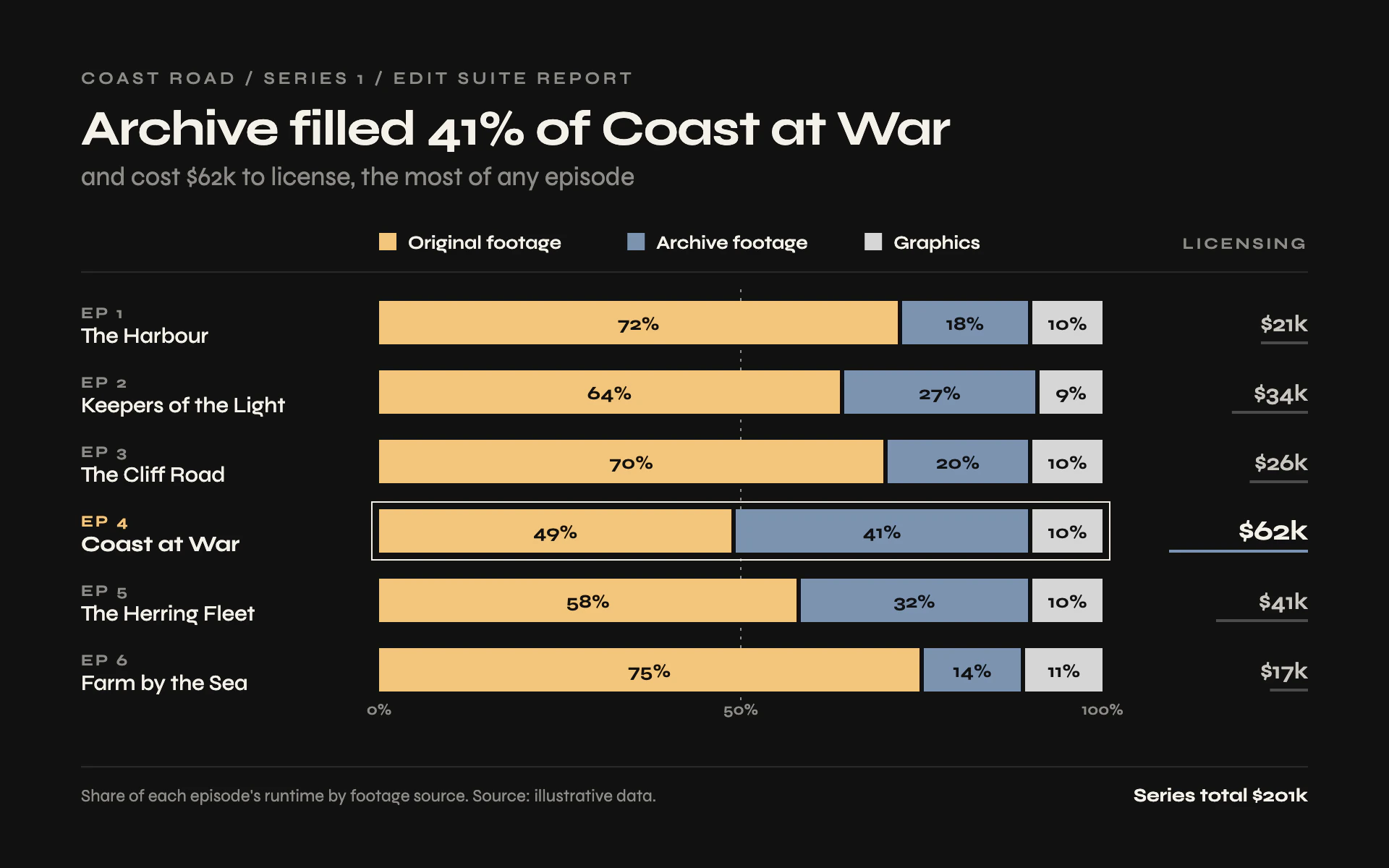

Restyle my chart in the "Archive Share" style described below. Keep my data, chart type, title meaning and units; change only the presentation. Use the charting library this project already uses (plain SVG if there is none). If the library can't express a detail, draw it in a custom layer instead of dropping it. Measurements assume a 960 x 600 chart; scale them proportionally.

Mood: a report printed from a documentary edit suite. Near-black, a wide contemporary grotesque, soft amber for what the crew shot and a desaturated archival blue for bought-in footage. Calm, modern and editorial.

Colors (use these exact values):
- Background: #111111.
- Series 1 (the primary share, e.g. original footage): #F2C57C (pale amber).
- Series 2 (e.g. archive footage): #7D93B0 (desaturated blue).
- Series 3 (e.g. graphics or other): #D6D6D6 (soft gray).
- Primary text: #F4F1EA. Secondary text: #8E8C88. Rules: #2A2A2A. In-bar labels: #111111. Non-highlighted side values: #C9C6C0; their proportional rules #4A4A4A.

Typography (Google Fonts):
- Syne throughout. Title 700 34px with -0.6px letter-spacing, stating the finding; second line 400 18px #8E8C88. Eyebrow 600 12px uppercase with 2.4px letter-spacing. Legend 600 13px. Row labels: a 700 11px uppercase kicker with 1.6px letter-spacing ("EP 4") over a 500 15px name (700 for the highlighted row). In-bar percentages 700 13px. Side values 600 16px (700 19px for the highlight). Axis ticks 600 11px. Source 12px.

Layout:
- Eyebrow, title and second line at top left (x 56). A legend row at y 172 starting over the bar column, with a small uppercase column header ("LICENSING") right-aligned at x 904; a 1px #2A2A2A rule under it.
- Row labels in the left column (x 56 to about 250), bars from x 262 to 762, a side value column right-aligned at x 904. Rows 48px apart, bars 30px tall.
- A footer rule near the bottom with a one-line note and the source on the left, a bold total on the right.

Axes and grid:
- No y axis. A single dotted 50% reference line (1px #8E8C88, 2 on 4 off) through all rows, with 0%, 50% and 100% labeled under the last row.

Marks:
- Bar chart: 100% stacked horizontal bars, square-cornered, with 3px gaps (background showing) between segments. Print the percentage centered in each segment of 8% or more, dark on the light fills. Outline the most notable row with a 1px #F4F1EA box 5px outside the bar and color its kicker amber.
- Line chart: stacked 100% area bands in the same three fills separated by 2px #111111 lines, with percentages printed inside the bands at the last point and the same outlined highlight on one period.
- Side column: a second measure printed as text (e.g. "$62k") with a thin 2px proportional rule under it, right-aligned; never a second axis.

Avoid: rounded bars, gradients, glows, saturated colors, pure white text, gridlines other than the 50% reference, and a dual axis.

When you're done, render the chart and check that each bar sums to exactly 100%, in-bar labels fit their segments, the highlighted row is the one the title names, and the side column total is correct.
