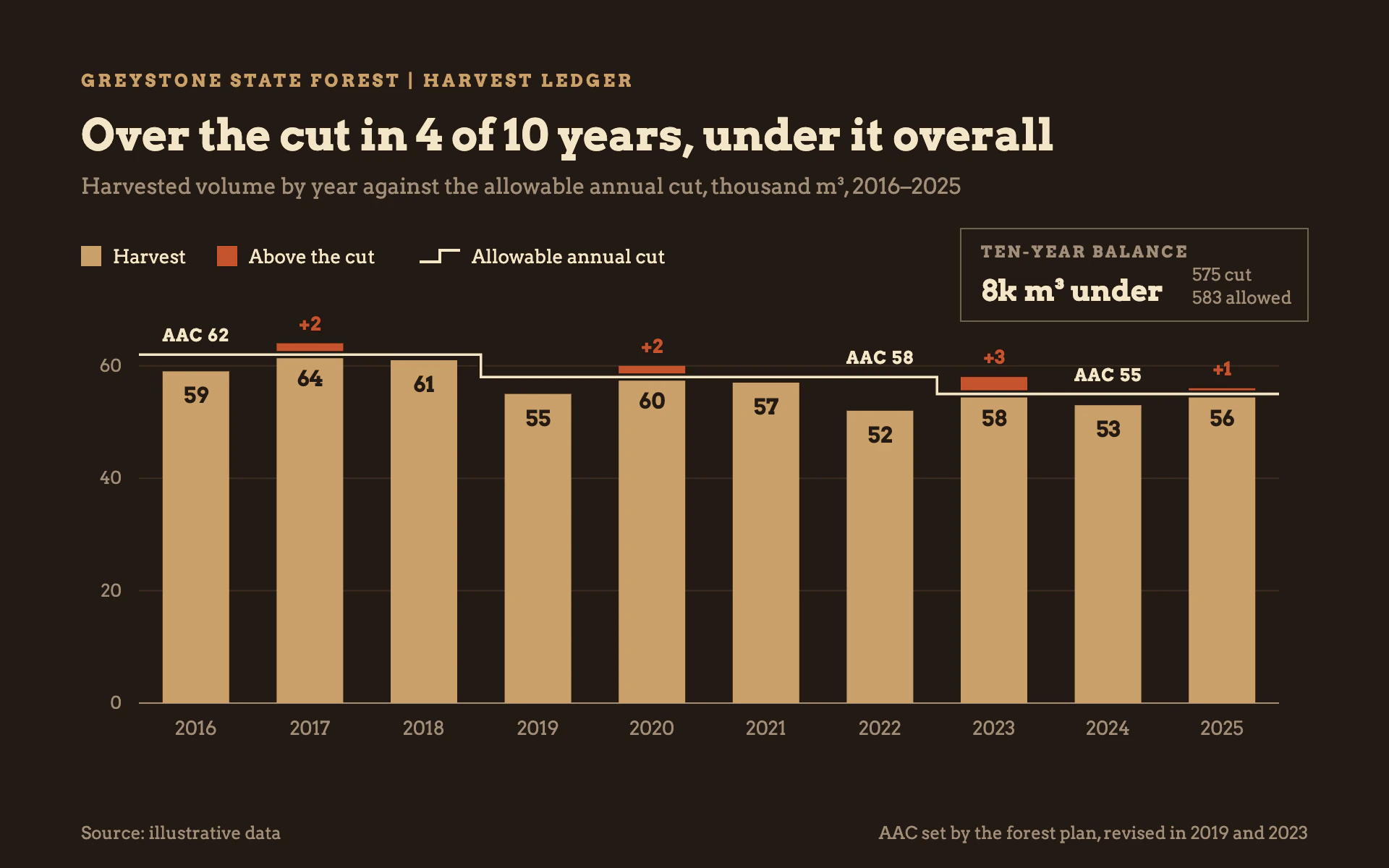

Allowable Cut bar chart, dark theme: Timber-tan bars under a cream stepped limit, rust caps where the cut ran over.

Allowable Cut

DarkBar

Timber-tan bars under a cream stepped limit, rust caps where the cut ran over.

  • Dark bark#231A14
  • Timber tan#C9A06A
  • Rust#C4532D
  • Cream#F3E6C8
  • Muted bark#A08E7A

Prompt for your coding agent

Paste it with your chart's code. It restyles your data to match this chart.

Restyle my chart in the "Allowable Cut" style described below. Keep my data, chart type, title meaning and units; change only the presentation. Use the charting library this project already uses (plain SVG if there is none). If the library can't express a detail, draw it in a custom layer instead of dropping it. Measurements assume a 960 x 600 chart; scale them proportionally.

Mood: a state forest's harvest ledger. Sober and accountable: dark bark-brown ground, warm timber-tan bars, a thin cream stepped limit line, rust caps wherever the limit was exceeded, and a boxed running balance in the corner.

Colors (use these exact values):
- Background: #231A14 (dark bark brown).
- Bars: #C9A06A (timber tan). The portion of any bar above the limit: #C4532D (rust).
- Limit line, primary text and the balance figure: #F3E6C8 (cream).
- Secondary text: #A08E7A. Gridlines: #3A2D24; the zero baseline uses #A08E7A.

Typography (Google Fonts):
- Arvo throughout. Eyebrow 12px 700 uppercase with 2.2px letter-spacing in #C9A06A; title 30px 700 #F3E6C8 stating the finding; subtitle 15px 400 #A08E7A with measure, unit and period; legend 13px; y labels 12px; category labels 13px; values inside bars 15px 700 in #231A14; excess labels 13px 700 #C4532D; limit labels 12px 700 #F3E6C8 with 0.6px letter-spacing; balance heading 11px 700 uppercase with 1.6px letter-spacing; balance figure 20px 700; source 12px.

Layout:
- 56px side margins. Eyebrow at y 60, title at y 104, subtitle at y 134, a legend row at y 180 (14px squares for the bar colors, a small cream step glyph for the limit).
- A balance box top right, 240 x 64 px, 1px #F3E6C8 outline at 35% opacity: the uppercase heading, the net balance in words ("8k m³ under"), and the two totals it is computed from in 12px to its right.
- Plot from x 96 to x 884 and y 214 to y 486.
- Footer at y 580: source left, a note on how the limit is set right.

Axes and grid:
- Horizontal 1px #3A2D24 gridlines at round values with 12px labels at the left; the zero line in #A08E7A. No y-axis line.

Marks:
- Bar chart: square-cornered bars about 58% of the band (46px at 10 bars) from zero. Draw the part up to the limit in #C9A06A and any part above it as a #C4532D cap, labeled "+2" etc. 9px above the bar. The bar's value sits inside the top of the tan part in 15px 700 dark text.
- Limit: a stepped line spanning each full category band (steps change only at band edges), 1.8px #F3E6C8 over a 5px #231A14 underlay so it cuts cleanly across the bars. Label each limit period once ("AAC 58") centered 9px above the line over the period's lowest bar, where the air is clear.
- Line chart: a 2.5px #C9A06A line with 4px dots; where it rises above the cream stepped limit, fill the gap between line and limit in #C4532D at 70% and label the excess; the same balance box applies.

Avoid: a second y-axis, gradients, rounded corners, glow, cream used for anything but the limit and key text, and labels that sit on the limit line.

When you're done, render the chart and check that every bar starts at zero, rust caps appear exactly where the value exceeds the limit, the stepped line changes only at band edges, and the balance equals the sum of the limits minus the sum of the bars.
