Neural Cellular Automata

• Neural Cellular Automata are computational models where each cell uses a local neural network to update its state and achieve self-organizing behavior.
• They enable decentralized control by learning local rules, facilitating applications in tissue morphogenesis, regeneration, and robotic self-repair.
• NCAs iteratively refine global outputs through localized interactions, bridging insights from biology, generative AI, and classical control architectures.

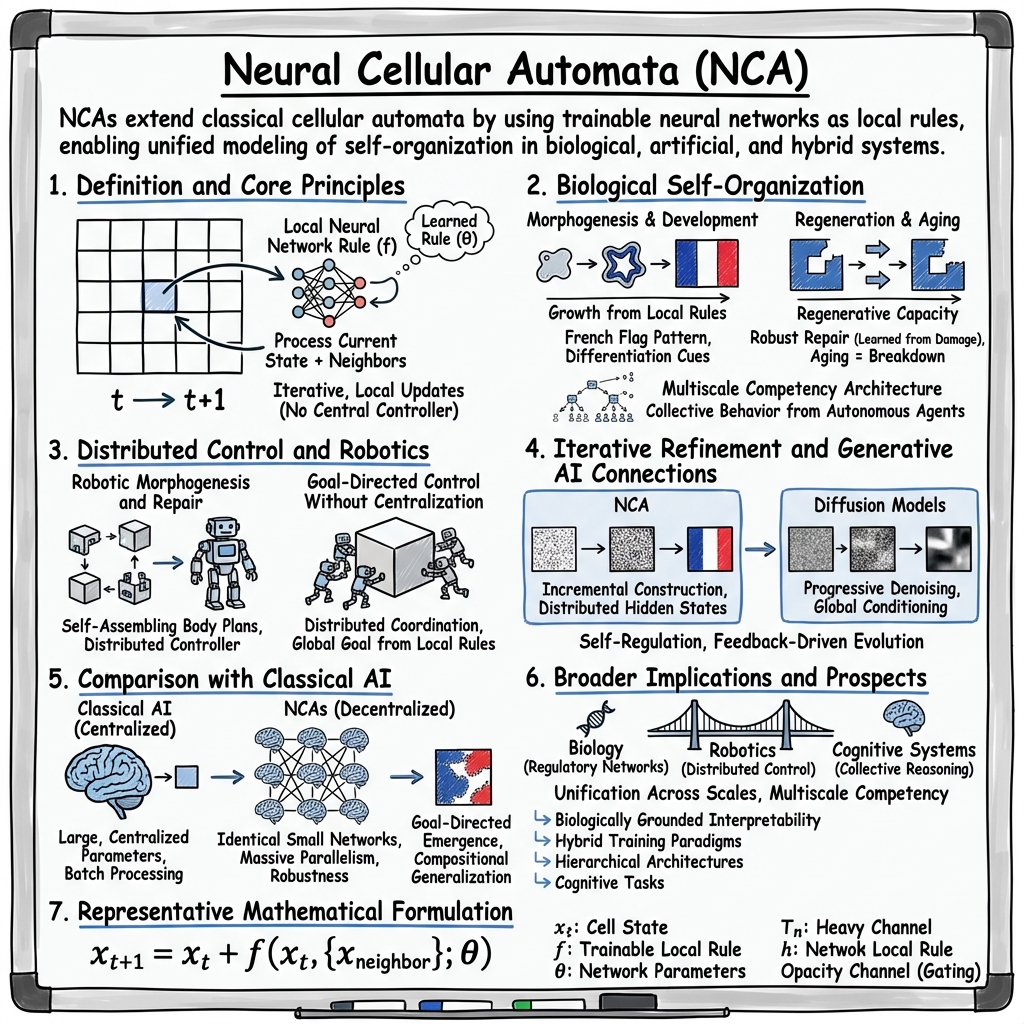

Neural Cellular Automata (NCA) are a class of computational models that extend classical cellular automata by replacing fixed, local rules with trainable, differentiable, or evolvable neural networks embedded within each cell. NCAs offer a unified, decentralized framework for simulating and engineering self-organization across biological, artificial, and hybrid systems. Their flexibility allows them to model processes from morphogenesis and regeneration in living tissues to self-organizing robotics and abstract reasoning tasks, bridging concepts from multiscale biology, distributed artificial intelligence, and modern generative AI such as diffusion models (Hartl et al., 14 Sep 2025).

1. Definition and Core Principles

Neural Cellular Automata generalize classical cellular automata by parameterizing each cell’s update rule as a local neural network. On a discrete grid (2D, 3D, or graph), every cell maintains a continuous state vector, updated synchronously or asynchronously based on local information sampled from a defined neighborhood. The canonical update is expressed as: $x_{t+1} = x_t + f(x_t, \{x_{neighbor}\}; \theta)$ where $f$ is a neural network with parameters $\theta$, processing the current and neighboring states.

The model operates entirely through localized, repeated updates—no centralized controller guides the system. This iterative refinement is analogous to collective dynamics in tissues or distributed control in multi-agent systems. Crucially, the local rules are not hand-crafted but learned via supervised (e.g., gradient descent), unsupervised, or evolutionary processes, allowing the NCA to discover strategies for growth, repair, or reasoning emergently.

2. Biological Self-Organization: Modeling and Applications

NCAs have become prominent tools for simulating key aspects of biological self-organization, leveraging principles from multicellular development, morphogenesis, and tissue-level homeostasis. In these domains, NCAs can capture:

• Morphogenesis and Development: NCAs simulate how tissues grow into complex patterns from local rules, modeling classical problems such as French flag boundary specification by encoding morphogen gradients and differentiation cues in hidden channels. Through training under damage or perturbation, NCAs acquire regenerative capacities reminiscent of planarian or axolotl tissue recovery.
• Regeneration and Aging: By exposing the model to simulated injuries (masking out parts of the pattern during training), NCAs learn robust repair strategies. Aging phenomena are modeled as a breakdown in goal-directed pattern maintenance, mimicking the decline in regenerative competence observed in biological organisms.
• Multiscale Competency Architecture: Each NCA cell functions as an autonomous, trainable local agent, yet collective behavior emerges at tissue or system level. Additional channels (e.g., opacity or “aliveness”) are often used to selectively update only living/active cells.

Such models demonstrate both precise reproduction of target biological patterns and generalization to novel, unseen initial conditions (e.g., seed positions, scale, partial inputs) (Hartl et al., 14 Sep 2025).

3. Distributed Control and Robotics

Beyond biology, NCAs have been integrated into advanced robotics and distributed systems:

• Robotic Morphogenesis and Repair: In soft robotics and modular robotics, NCAs function as distributed controllers for self-assembling, growing, or regenerating body plans. Local update rules allow robot “cells” to coordinate repair autonomously in both 2D and 3D (e.g., Minecraft-like block worlds or voxel haptic simulations), often outperforming centrally controlled architectures in robustness to damage and adaptability (Hartl et al., 14 Sep 2025).
• Goal-Directed Control Without Centralization: NCAs achieve system-level goals by distributed means: each cell applies the same learned rule, yet global patterning and organization result from local coordination. This distributed paradigm enhances resilience, modularity, and scalability compared to classic monolithic controllers.

4. Iterative Refinement and Generative AI Connections

A notable connection exists between NCAs and modern iterative generative models, especially probabilistic diffusion models. Both frameworks produce target outputs by incrementally refining an initial (often noisy) state over multiple update steps:

• Diffusion Models vs. NCA: Traditional diffusion models progressively denoise a random latent signal by learning a parameterized reverse diffusion. NCA, similarly, starts from a simple seed state and performs iterative local updates, incrementally constructing a structured output (e.g., an image or pattern). The distinction is that while diffusion models are often conditioned globally (via a timestep or context vector), NCAs encode their “developmental trajectory” in the distributed hidden states of the cellular grid (Hartl et al., 14 Sep 2025).
• Self-Regulation and Constraint: The self-regulatory, feedback-driven evolution observed in NCA-based systems is a direct computational analog of homeostatic processes in living matter and lends itself to generative tasks (pattern completion, inpainting, texture synthesis, etc.) using highly compact and decentralized architectures.

5. Comparison with Classical AI

NCAs differ fundamentally from classical AI and neural network approaches:

• Decentralized vs. Centralized Computation: While deep learning relies on large, centralized parameter sets and batch processing, NCAs use identical, small neural networks applied locally across the grid, enabling massive parallelism and robustness.
• Goal-Directed Emergence: Rather than learning a direct mapping from input to output, NCAs internalize goal-directed dynamics—convergence to a target state emerges from the composition of local updates rather than explicit supervision at each time step. This enables features such as self-repair, adaptation to unforeseen perturbations, and compositional generalization.
• Iterative Adaptation: Classical models are usually static after deployment, while NCAs continue to adapt their state by repeated updates, making them resilient to environmental changes or partial information.

6. Broader Implications and Prospects

The architecture and training of NCAs position them as a promising framework for studying and engineering collective intelligence:

• Unification Across Scales and Domains: NCAs provide a computational framework that bridges mechanisms in biology (multiscale regulatory networks), robotics (distributed control and body repair), and cognitive systems (collective reasoning, pattern completion). Their “multiscale competency architecture” allows for the paper and design of hierarchical systems in which local agents learn to solve both micro- and macro-level tasks without centralized oversight.
• Research Directions: Open research challenges include improving biologically grounded interpretability (i.e., mapping hidden state vectors to measured biological variables), incorporating hybrid training paradigms (combining gradient descent and evolvability), supporting hierarchical or compositional architectures, and applying NCA methodology to cognitive and reasoning tasks that require collective, scalable, and adaptive computation (Hartl et al., 14 Sep 2025).

7. Representative Mathematical Formulation

The NCA dynamic is generally formalized as: $x_{t+1} = x_t + f(x_t, \{x_{neighbor}\}; \theta)$ where $x_t$ is the cell state at time $t$, $f$ is the trainable local rule, and $\theta$ denotes the network’s parameters. Channels such as “opacity” can gate update contributions, and the architecture may include mechanisms for self-differentiation, signal integration, or external actuation.

---

By integrating locally learned neural rules with iterative refinement, Neural Cellular Automata instantiate a computationally lean paradigm for developing robust, generalizing, and adaptive collective intelligence. Their scope now covers biological modeling, artificial life, distributed robotics, and abstract reasoning, with direct analogies to leading generative AI systems and a foundational role in bio-inspired computational research (Hartl et al., 14 Sep 2025).
