4D Gaussian Splatting in Dynamic Scene Rendering

• 4D Gaussian Splatting is a method that models dynamic scenes as a set of explicit, anisotropic 4D Gaussians capturing spatial and temporal correlations.
• It employs a compact spherindrical harmonics-based appearance model and differentiable splatting to achieve photoreal novel-view synthesis at over 100 FPS.
• The framework outperforms prior models by delivering high PSNR and low LPIPS scores while enabling applications like real-time video capture, digital twins, and interactive scene editing.

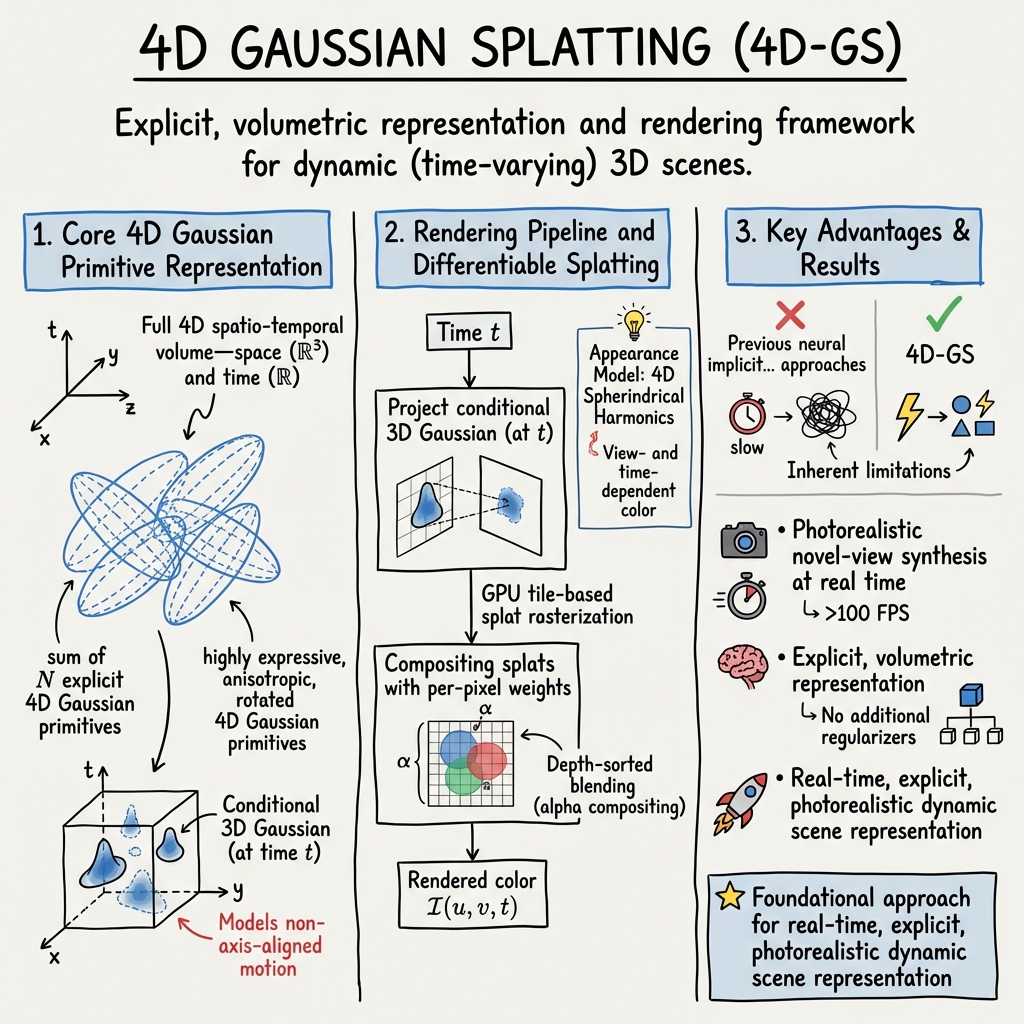

4D Gaussian Splatting (4D-GS) is an explicit, volumetric representation and rendering framework for dynamic (time-varying) 3D scenes. Introduced by Yang et al. (Yang et al., 2023), 4D-GS addresses the inherent limitations of previous neural implicit and deformable radiance field approaches by directly modeling the full 4D spatio-temporal volume—space (ℝ³) and time (ℝ)—with a set of highly expressive, anisotropic, rotated 4D Gaussian primitives. The method achieves photorealistic novel-view synthesis at real time, supporting diverse downstream applications in video-based scene capture, digital twins, interactive editing, and efficient dynamic view rendering.

1. Core 4D Gaussian Primitive Representation

A dynamic scene is encoded as a sum of $N$ explicit 4D Gaussian primitives $\{G_i\}$, each parameterized by a 4D mean $$\mu_i = (\mu_x, \mu_y, \mu_z, \mu_t) \in \mathbb{R}^4$$ and a full covariance $\Sigma_i \in \mathbb{R}^{4 \times 4}$: $$G_i(x, t) = \exp\!\left(-\frac{1}{2}\left( [x, t] - \mu_i \right)^\top \Sigma_i^{-1} \left( [x, t] - \mu_i \right) \right)$$ where $x \in \mathbb{R}^3$, $t \in \mathbb{R}$.

To enable stable optimization and full 4D anisotropy (including spatio-temporal orientation), $\Sigma_i$ is factored as: $\Sigma_i = R_i S_i^2 R_i^\top$ where $S_i = \mathrm{diag}(s_x, s_y, s_z, s_t)$ and $R_i \in \mathrm{SO}(4)$ (a 4D rotation), parameterized using two quaternions. Each primitive thus defines an oriented, ellipsoidal support in space–time, with $s_t$ controlling its temporal extent; $\mu_t$ encodes its temporal position; and the full $\Sigma_i$ enables modeling of non-axis-aligned motion (e.g., scene elements moving along oblique space–time paths).

Conditional and marginalization identities from multivariate Gaussians yield:

• The spatial “slice” at time $t$ is a 3D Gaussian with:

$$\begin{aligned} \mu_{xyz\,|\,t} &= \mu_{1:3} + \Sigma_{1:3,4} \Sigma_{4,4}^{-1} (t - \mu_t) \ \Sigma_{xyz\,|\,t} &= \Sigma_{1:3,1:3} - \Sigma_{1:3,4} \Sigma_{4,4}^{-1} \Sigma_{4,1:3} \end{aligned}$$

• The temporal marginal weight:

$$p_i(t) = \exp\left( -\frac{1}{2}(t - \mu_t)^2 \Sigma_{4,4}^{-1} \right)$$

2. Appearance Model: 4D Spherindrical Harmonics

View- and time-dependent color is modeled with a compact, explicit expansion: $$c_i(d, t) = \sum_{n=0}^{N} \sum_{l=0}^{L} \sum_{m=-l}^l a_{i,n,l,m} Z_{n,l}^m(t, \theta, \phi)$$ where $d = (\theta, \phi)$ are spherical camera directions and $Z_{n,l}^m$ is the 4D spherindrical basis: $$Z_{n,l}^m(t, \theta, \phi) = \cos\left( \frac{2\pi n}{T} t \right) Y_l^m(\theta, \phi)$$ for a scene duration $T$, $Y_l^m$ being spherical harmonics.

This separable basis efficiently captures both high-frequency view-dependent reflectance and time-evolving appearance, with the learned coefficients $a_{i,n,l,m}$ per Gaussian.

3. Rendering Pipeline and Differentiable Splatting

The rendered color $\mathcal{I}(u, v, t)$ at pixel $(u, v)$ and time $t$ is computed by:

• Projecting each conditional 3D Gaussian (at $t$) into image space using camera parameters, linearizing projection via the Jacobian $J$.
• Computing the 2D projected Gaussian parameters:

$$\begin{aligned} \mu_i^{2d} &= \mathrm{Proj}(\mu_{xyz\,|\,t}; E, K)_{1:2} \ \Sigma_i^{2d} &= (J E \Sigma_{xyz\,|\,t} E^\top J^\top)_{1:2,1:2} \end{aligned}$$

• Compositing splats with per-pixel weights:

$$\mathcal{I}(u, v, t) = \sum_{i=1}^N p_i(t) \, p_i(u, v\,|\,t)\, \alpha_i\, c_i(d, t)\, \prod_{j < i} \left[1 - p_j(t)\, p_j(u, v\,|\,t)\, \alpha_j\right]$$

where $\alpha_i$ is a learned opacity.

GPU tile-based splat rasterization and depth-sorted blending (alpha compositing) yield efficient $>100$ FPS rendering at high resolutions. Gaussians with negligible $p_i(t)$ are pruned per frame.

4. Optimization and Training Protocol

Supervision is applied via photometric $\ell_2$ loss on (pixel, time) samples: $$\mathcal{L}_{\mathrm{photo}} = \sum_k \left\|\,\mathcal{I}(u_k, v_k, t_k) - \mathcal{I}^{\mathrm{gt}}(u_k, v_k, t_k)\,\right\|_2^2$$

Adaptive densification and pruning are performed using spatial/temporal gradient magnitudes:

• Gaussians with low spatial gradient are pruned (insufficient reconstruction).
• High-gradient Gaussians are split in full 4D space–time (to capture detail).
• The mean temporal gradient of $\mu_t$ is monitored to ensure even time coverage.

Training batches rays sampled uniformly in $(u, v, t)$, rather than sequential frames, enforcing temporal consistency and suppressing flicker.

Initialization uses colored point clouds (e.g., COLMAP) at $t=0$, with $\mu_t$ initialized randomly in $[0, T]$ and temporal scale $s_t = T/2$. End-to-end training runs for $\sim30$k iterations (batch size 4), with densification rate halved at halfway point.

5. Empirical Performance and Benchmarks

On the Plenoptic Video (multi-view, real) benchmark, 4D-GS achieves:

• PSNR = 32.01, DSSIM = 0.014, LPIPS = 0.055
• $\sim$114 FPS on a single NVIDIA GPU

This surpasses prior neural dynamic scene models (DyNeRF, HexPlane, K-Planes, StreamRF, etc.) on both fidelity (PSNR, LPIPS) and real-time speed (often >10$\times$ faster than NeRF-based methods).

On monocular, under-constrained synthetic (D-NeRF) scenes, 4D-GS attains PSNR = 34.09 at real-time frame rates.

6. Methodological Distinctions and Theoretical Properties

• True 4D Native Representation: By representing spacetime as an explicit collection of 4D Gaussians, 4D-GS avoids overparametrizing time via separate deformation fields or per-frame duplication. All space–time correlations (motion, temporal occlusion, appearance drift) are encoded natively via the $\Sigma_i$ and spherindrical expansion.
• Compact View-Time Appearance: Spherindrical harmonics provide a parsimonious but expressive basis for handling high-frequency view and time effects, enabling both photorealism and efficient memory use.
• Scalability and Flexibility: The rasterization and compositing algorithm is GPU-friendly and scales with the number of visible Gaussians per frame, not the number of input images or total scene length.
• Optimization Simplicity: No additional regularizers or motion priors are required. All geometry, appearance, and motion are learned end-to-end, with dynamic splitting and pruning providing automatic model adaptation.

7. Extensions and Applications

The 4DGS framework catalyzed further research exploring:

• Geometry-consistent extensions for sparse camera inputs by integrating multi-view stereo priors (Li et al., 28 Nov 2025).
• Aggressive model compression through pruning, quantization, and entropy-aware encoding to facilitate edge deployment (Wang et al., 11 Oct 2025, Zhang et al., 2024, Liu et al., 18 Mar 2025).
• Hybrid 3D–4D schemes to segregate static background (as pure 3D Gaussians) from dynamic elements (Oh et al., 19 May 2025).
• Generative content creation via diffusion-driven 4DGS pipelines (Ren et al., 2023).
• Real-time scene editing and semantic manipulation leveraging 4DGS’s explicit structure (Liu et al., 2 Oct 2025).
• Self-calibration from monocular video without external structure-from-motion (Li et al., 2024).

4D Gaussian Splatting has become a foundational approach for real-time, explicit, photorealistic dynamic scene representation, providing both practical utility and a mathematically tractable paradigm for space–time visual modeling (Yang et al., 2023, Yang et al., 2024).
